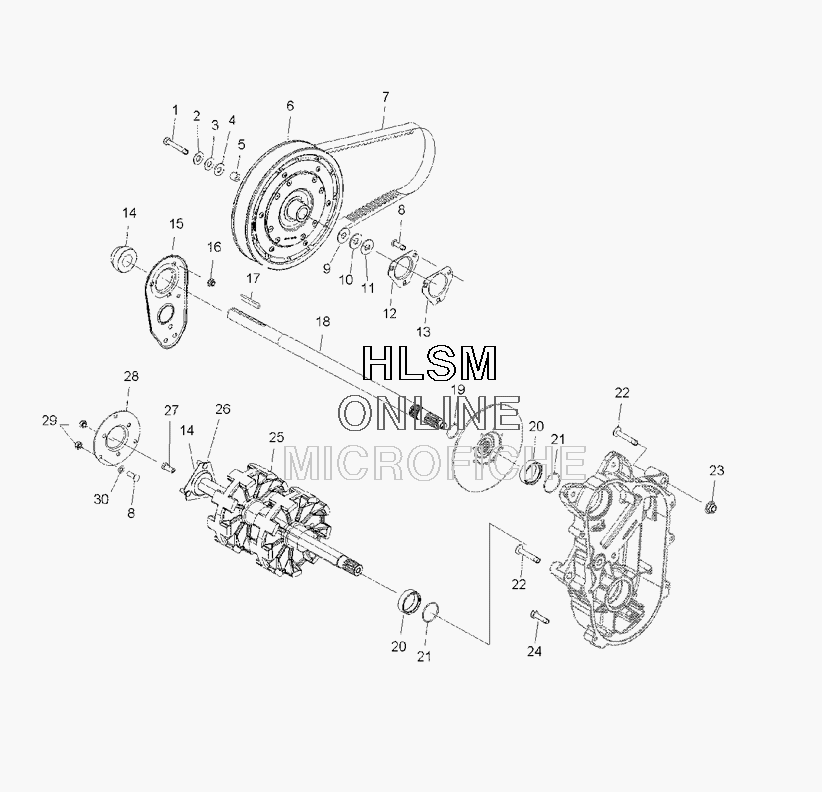

DRIVE SHAFT ASSY. для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска
-
№АртикулНазвание
-
17517581 SCREWSCREW
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55020913 SPACER-INPUT SHAFT, .984X.940SPACER-INPUT SHAFT, .984X.940
-
73211114 BELT-DRV, 1.438X10 5/8, CVTBELT-DRV, 1.438X10 5/8, CVT
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
97555917 WASHERWASHER
-
107555864 WASHERWASHER
-
117556509 BUSHINGBUSHING
-
125248544 FLANGETTEFLANGETTE
-
135812714 GASKET-JACKSHAFTGASKET-JACKSHAFT
-
143514525 BEARINGBEARING
-
155248263-067 FLANGETTE-JACKSHAFT, REINF, BLACKFLANGETTE-JACKSHAFT, REINF, BLACK
-
167542343 NUT, FLANGENUT, FLANGE
-
177710585 KEY-3/16 X 1/4 X 3.250KEY-3/16 X 1/4 X 3.250
-
1813327331 RING, RETAININGRING, RETAINING
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O RINGO RING
-
227518367 BOLT-CARR 3/8-16X2.25-GR5-YBOLT-CARR 3/8-16X2.25-GR5-Y
-
237547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
247517632 SCREWSCREW
-
251590444 ASM-DRIVESHAFT, 6.98 2DR (INCL. 14, 26)ASM-DRIVESHAFT, 6.98 2DR (INCL. 14, 26)
-
261014299 ASM-FLANGETTE W/SCREWSASM-FLANGETTE W/SCREWS
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285249151 FLANGETTE 52MM SEAT 72MM FFFLANGETTE 52MM SEAT 72MM FF
-
297542324 NUT, NYLOKNUT, NYLOK
-
307547030 PALNUTPALNUT
