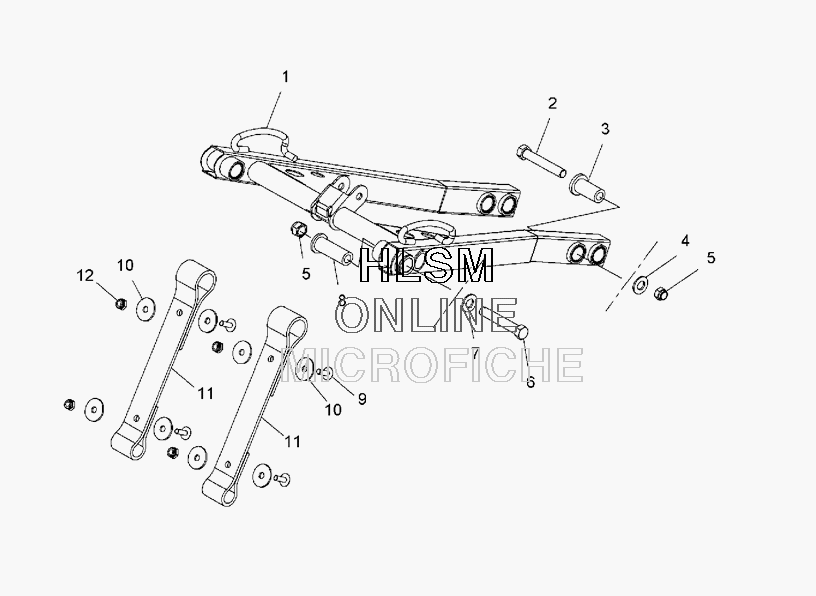

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска
-
№АртикулНазвание
-
11542428-329 ASM-FTA, MOD, BLACKASM-FTA, MOD, BLACK
-
27517995 BOLT-7/16-20X2.75, HXCAP, GR8-YBOLT-7/16-20X2.75, HXCAP, GR8-Y
-
35135785 SHAFT-.750X.453X1.550SHAFT-.750X.453X1.550
-
47556156 WASHER, .483X1.37X.083WASHER, .483X1.37X.083
-
57547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
67517980 BOLT-7/16-20X3.00, HXCAP, GR5-YBOLT-7/16-20X3.00, HXCAP, GR5-Y
-
77555984 WASHER, FLATWASHER, FLAT
-
85136206 SHAFT-.750X.453X2.020SHAFT-.750X.453X2.020
-
97517313 SCREWSCREW
-
107556175 WASHER-.325X1.20X.090, FL-YWASHER-.325X1.20X.090, FL-Y
-
115413032 STRAP-LIMITER, RACESTRAP-LIMITER, RACE
-
127542344 NUT, NYLOKNUT, NYLOK
