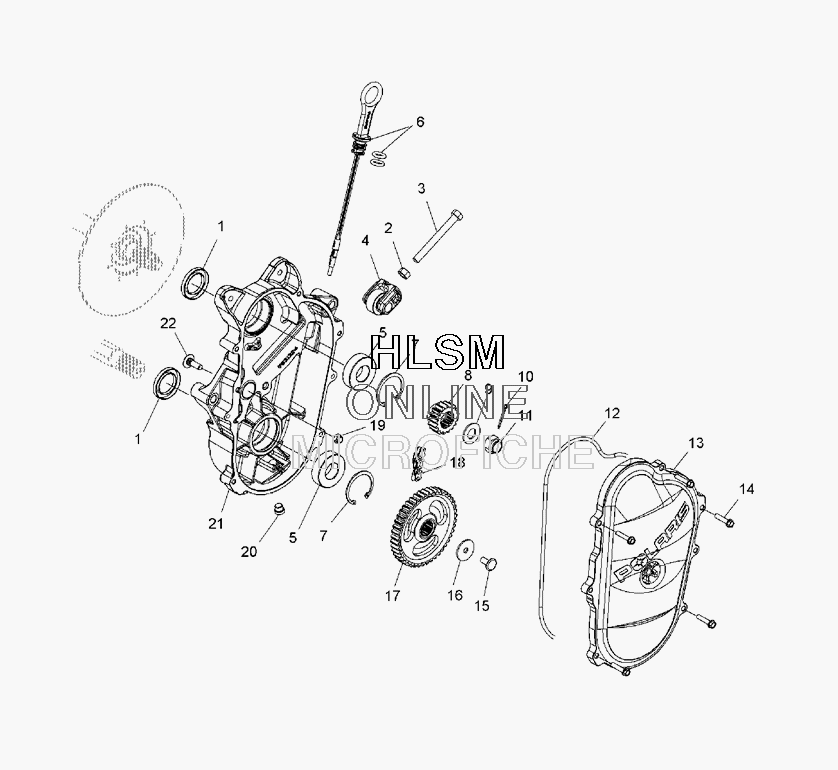

CHAINCASE ASSEMBLY для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37517227 SCREWSCREW
-
41332266 ASM-TIGHTENER, SLIDING, 1.265WASM-TIGHTENER, SLIDING, 1.265W
-
53514309 BEARING, BALL #6205BEARING, BALL #6205
-
61332143 ASM-DIPSTICKASM-DIPSTICK
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221098 SPKT, 22T, 3/4W, 15 SPL, HV, PMSPKT, 22T, 3/4W, 15 SPL, HV, PM
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUT-5/8-18 THIN, NYL INSERT-YNUT-5/8-18 THIN, NYL INSERT-Y
-
125812574 GASKET-CHAINCASE COVER, 7.92GASKET-CHAINCASE COVER, 7.92
-
135631354 COVER, CHAINCASE 7.92 CDCOVER, CHAINCASE 7.92 CD
-
147512242 SCREWSCREW
-
157517979 SCR-5/16-18 3/4 HXHD/NYL, GR8-PSCR-5/16-18 3/4 HXHD/NYL, GR8-P
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222108 SPKT, 39T, 3/4W, 15T, HYVO, PMSPKT, 39T, 3/4W, 15T, HYVO, PM
-
183221109 CHAIN, HYVO.74P, 3/4WCHAIN, HYVO.74P, 3/4W
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134260 CHAINCSE-7.92 CDCHAINCSE-7.92 CD
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
