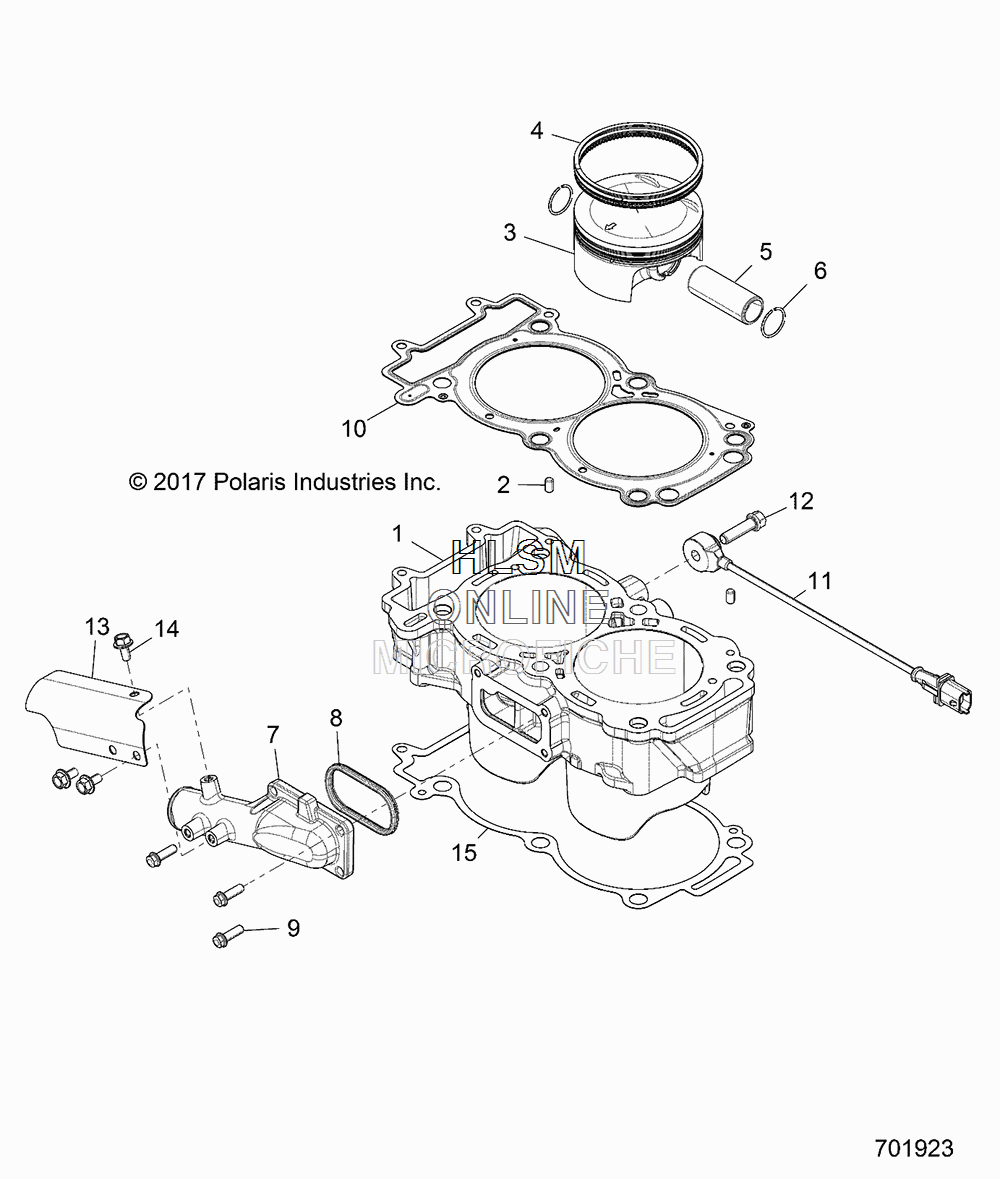

CYLINDER AND PISTON для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
13023035 ASM., CYLINDER (INCL. 2)ASM., CYLINDER (INCL. 2)
-
25132835 PIN, DOWELPIN, DOWEL
-
32206216 ASM., PISTON (INCL. 4-6)ASM., PISTON (INCL. 4-6)
-
42206217 KIT, PISTON RINGS (INCL. SET FOR 1 PISTON)KIT, PISTON RINGS (INCL. SET FOR 1 PISTON)
-
53022291 PIN, PISTON, 22X12.8X56.6MMPIN, PISTON, 22X12.8X56.6MM
-
67710479 RING-RTNG, RND, 22.0X1.6, 0600102RING-RTNG, RND, 22.0X1.6, 0600102
-
75141311 COVER-WATER INLET, MACHCOVER-WATER INLET, MACH
-
85813736 GASKET, WATER, INLETGASKET, WATER, INLET
-
97518576 SCREWSCREW
-
105814501 GASKET- CYL HEAD, 4 LAYER (BUILT UP TO 6/5/17)GASKET- CYL HEAD, 4 LAYER (BUILT UP TO 6/5/17)
-
105814693 GASKET-CYL HEAD 4-LAYER (BUILT AFTER 6/5/17)GASKET-CYL HEAD 4-LAYER (BUILT AFTER 6/5/17)
-
112410369 SENSOR-DETONATION BOSCHSENSOR-DETONATION BOSCH
-
127517262 SCREWSCREW
-
135264204 SHIELD HEAT BOLTED-COOLANTSHIELD HEAT BOLTED-COOLANT
-
147520710 SCR-HXFL-M6X1.0X12 8.8SCR-HXFL-M6X1.0X12 8.8
-
155253037 GASKET, BASE, 2 CYLGASKET, BASE, 2 CYL
