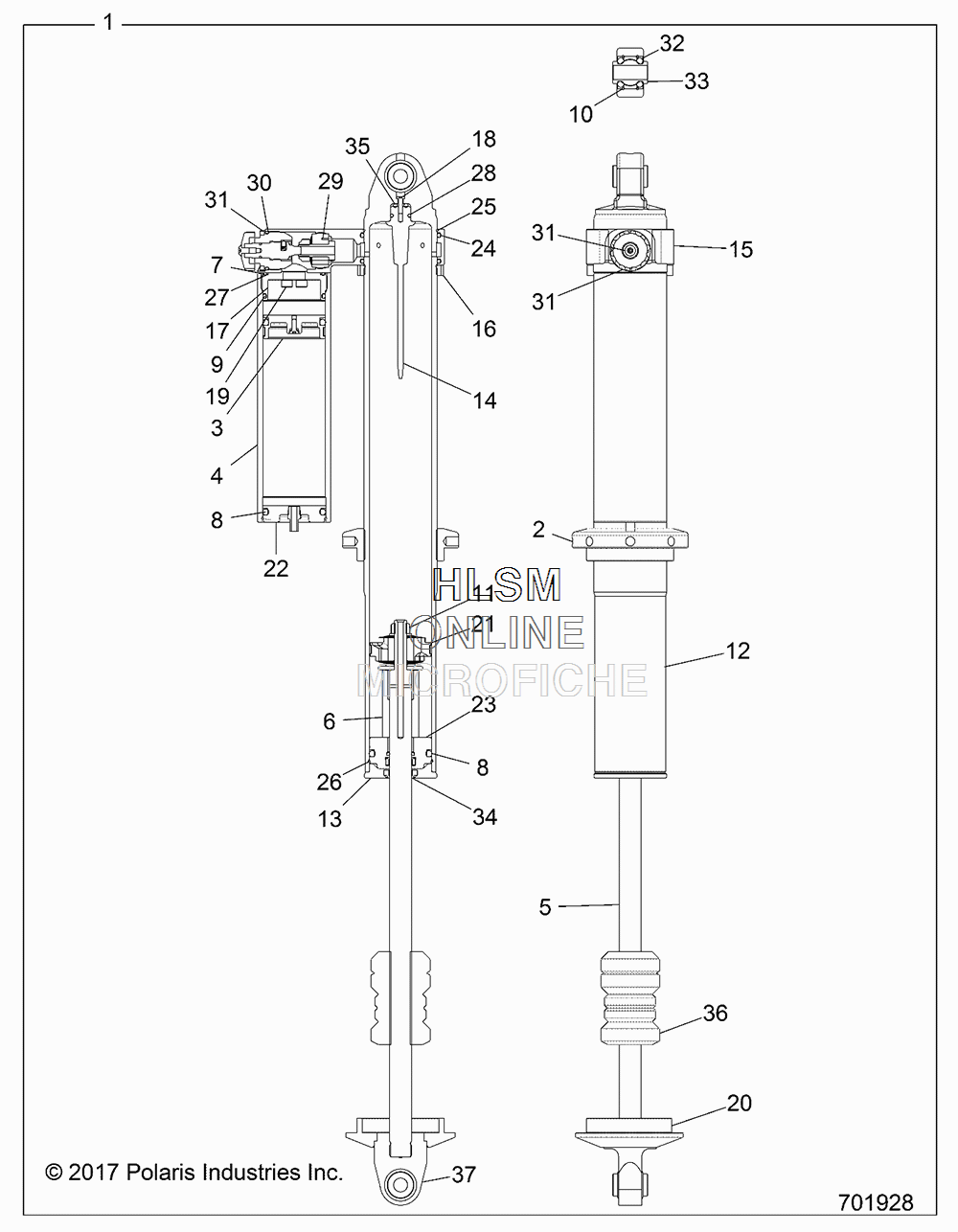

SUSPENSION - REAR SHOCK для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
17044853 SHOCK-REAR, (INCL ALL)SHOCK-REAR, (INCL ALL)
-
21800836 SPRING NUT, 2.5 IN (CLEAR)SPRING NUT, 2.5 IN (CLEAR)
-
31800752 RES, PISTON 2.5 IN ASMRES, PISTON 2.5 IN ASM
-
41800837 2.5IN 8.5L PB RES CAN WR (HARD CLEAR)2.5IN 8.5L PB RES CAN WR (HARD CLEAR)
-
51800620 3/4IN SS CHROME NEEDLE SHAFT 18.295L3/4IN SS CHROME NEEDLE SHAFT 18.295L
-
61800610 SPACER 2.287LSPACER 2.287L
-
71800613 O-RING 2-033O-RING 2-033
-
81800508 O-RING 2-327O-RING 2-327
-
91800500 O-RING 2-225O-RING 2-225
-
101800482 RING- RETAIN (SNAP)RING- RETAIN (SNAP)
-
111800638 7/16 NY LOCK NUT7/16 NY LOCK NUT
-
121800838 BODY, MONOTUBE 2.5 REAR, W NEEDLE HARD CLEAR 21.070LBODY, MONOTUBE 2.5 REAR, W NEEDLE HARD CLEAR 21.070L
-
131800839 WIPER CAP 2.5 X 0.75 PRESS FITWIPER CAP 2.5 X 0.75 PRESS FIT
-
141800840 NEEDLE, 1PC PRESS INNEEDLE, 1PC PRESS IN
-
151800841 BRIDGE, 2.5 IN ADJUSTER (CLEAR)BRIDGE, 2.5 IN ADJUSTER (CLEAR)
-
161800842 2.5IN CROSSOVER RING/ JAM NUT2.5IN CROSSOVER RING/ JAM NUT
-
171800488 2.5 RES MOUNT2.5 RES MOUNT
-
181800843 #8-32 X 0.5 LOW HEAD SCREW#8-32 X 0.5 LOW HEAD SCREW
-
191800754 SCREW, SHCS 43834 X .5 INSCREW, SHCS 43834 X .5 IN
-
201501007 SPRING CLIPSPRING CLIP
-
211800659 PISTON, ASM NO BLEED (W/OUT VALVING)PISTON, ASM NO BLEED (W/OUT VALVING)
-
221800844 ASM. END CAP, 2.5 IN, SCHRAEDERASM. END CAP, 2.5 IN, SCHRAEDER
-
231800845 ASM, 2.5 IN, SEAL HEAD 0.75 SHAFT PRESS INASM, 2.5 IN, SEAL HEAD 0.75 SHAFT PRESS IN
-
241800497 O-RING 2-230O-RING 2-230
-
251800846 2.48 X 0.0625 WIRE RING2.48 X 0.0625 WIRE RING
-
261800847 RETAINING RING 2.5RETAINING RING 2.5
-
271800502 O-RING, 2-134O-RING, 2-134
-
281800095 O-RING 2-112O-RING 2-112
-
291800848 VALVE, CHECK ASMVALVE, CHECK ASM
-
301800503 O-RING 2-122O-RING 2-122
-
321800810 O-RING 2-312O-RING 2-312
-
331800880 BEARING HCOM9T-12MMBEARING HCOM9T-12MM
-
341800506 WIPER 2.5IN SH .75SHAFTWIPER 2.5IN SH .75SHAFT
-
371800555 9/16 HEIM SHAFTLOOP (CLEAR)9/16 HEIM SHAFTLOOP (CLEAR)
