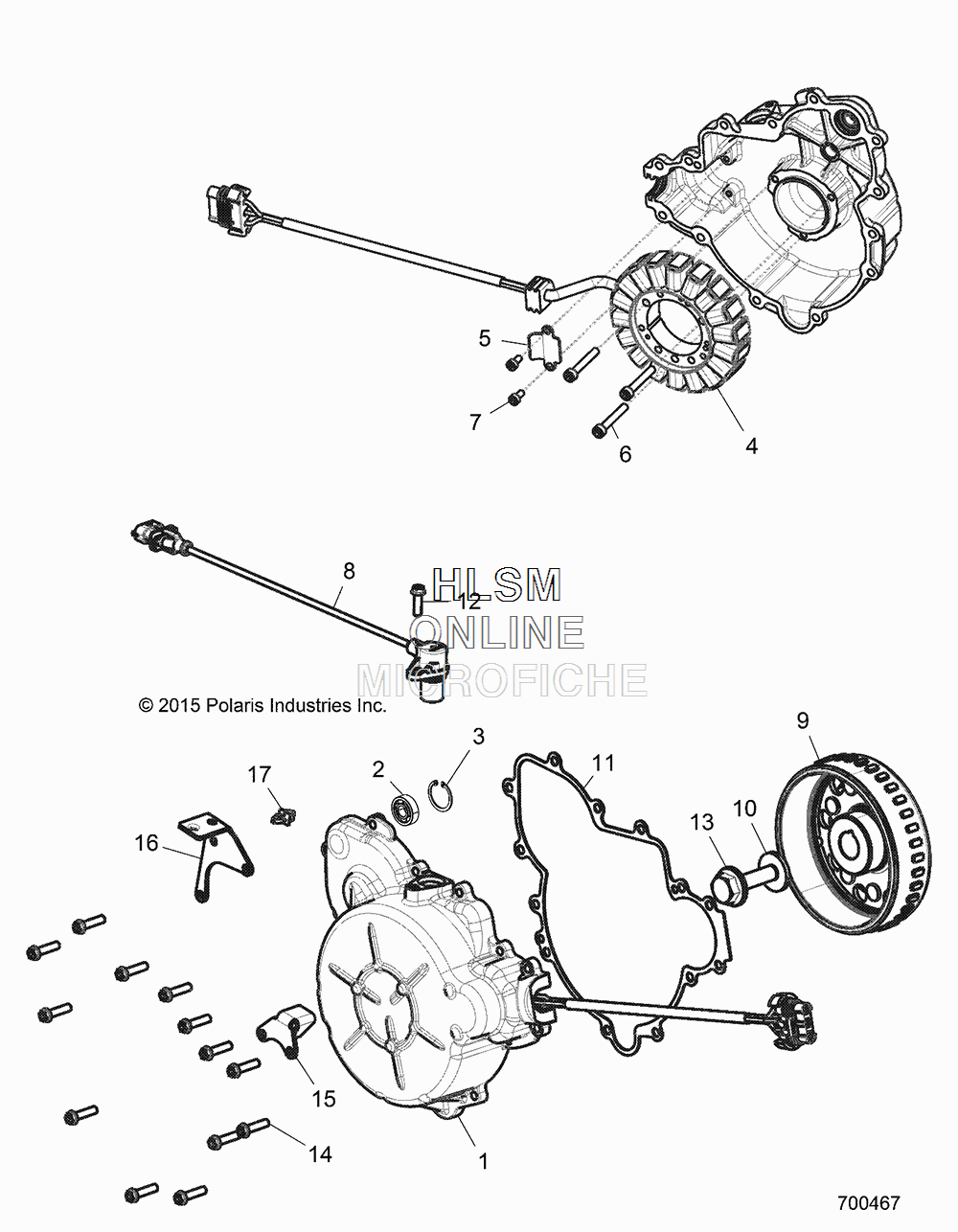

MAGNETO для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
11204518 ASM., IGNITION COVER (INCL. 2, 3)ASM., IGNITION COVER (INCL. 2, 3)
-
23514717 BEARING, BALLBEARING, BALL
-
37710654 RING, SNAPRING, SNAP
-
44015340 STATORSTATOR
-
55255473 BRACKET, RETAINER, WIREBRACKET, RETAINER, WIRE
-
67510005 SCREWSCREW
-
77517847 SCREWSCREW
-
82411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
94015496 FLYWHEELFLYWHEEL
-
107556885 WSHR-32X12X4, HARDWSHR-32X12X4, HARD
-
115814160 GASKET, COVER, IGNITIONGASKET, COVER, IGNITION
-
127518576 SCREWSCREW
-
137520178 SCREWSCREW
-
147519297 SCREWSCREW
-
155260300 BRKT-OIL, LINE, RETAINERBRKT-OIL, LINE, RETAINER
-
165260666 BRKT-CPS/COOLANTBRKT-CPS/COOLANT
-
177081477 CLIP-WIRE, 6.35MMCLIP-WIRE, 6.35MM
