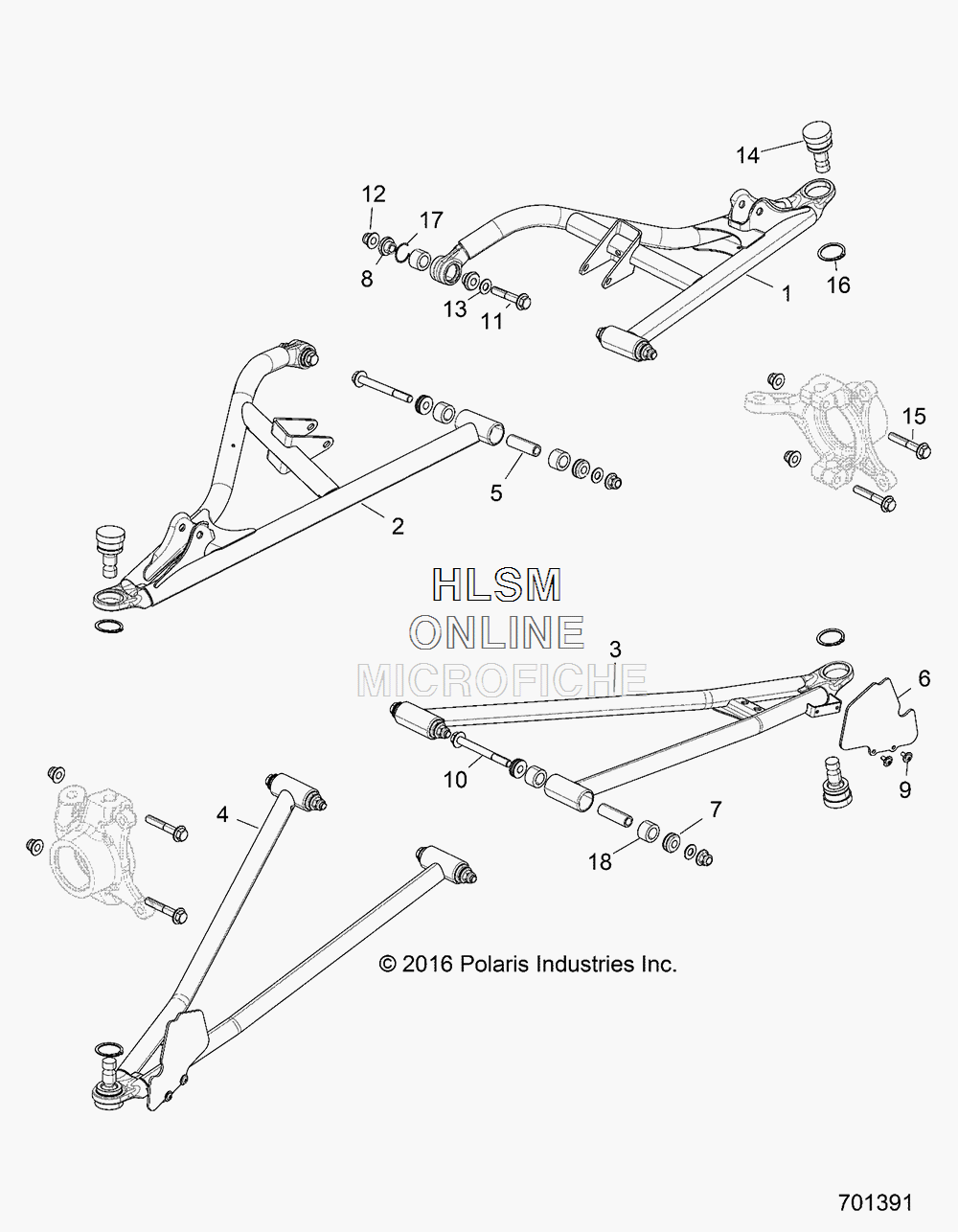

SUSPENSION - FRONT CONTROL ARMS для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
11023526-446 WELD-CTRL ARM, UPR, FR, LEFT HAND, 64, C/SWELD-CTRL ARM, UPR, FR, LEFT HAND, 64, C/S
-
21023527-446 WELD-CTRL ARM, UPR, FR, RIGHT HAND, 64, C.SWELD-CTRL ARM, UPR, FR, RIGHT HAND, 64, C.S
-
31021480-446 WELD-CTRL ARM, LWR, FR, LEFT HAND, 64, C.SWELD-CTRL ARM, LWR, FR, LEFT HAND, 64, C.S
-
41021481-446 WELD-CTRL ARM, LWR, FR, RIGHT HAND, 64, C.SWELD-CTRL ARM, LWR, FR, RIGHT HAND, 64, C.S
-
55139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
65438641-070 SHIELD, CV, FRONT, BLACKSHIELD, CV, FRONT, BLACK
-
71543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
81543735 ASM-PIVOT CAP, SEALED, SLIM, M10ASM-PIVOT CAP, SEALED, SLIM, M10
-
97512084 SCREWSCREW
-
107519043 SCREWSCREW
-
117519285 SCREWSCREW
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
147082275 BALL-JOINT, HARDENEDBALL-JOINT, HARDENED
-
157519306 SCREWSCREW
-
167710716 RING, RETAININGRING, RETAINING
-
177710845 SPIRAL RING, STEEL, 28MMSPIRAL RING, STEEL, 28MM
