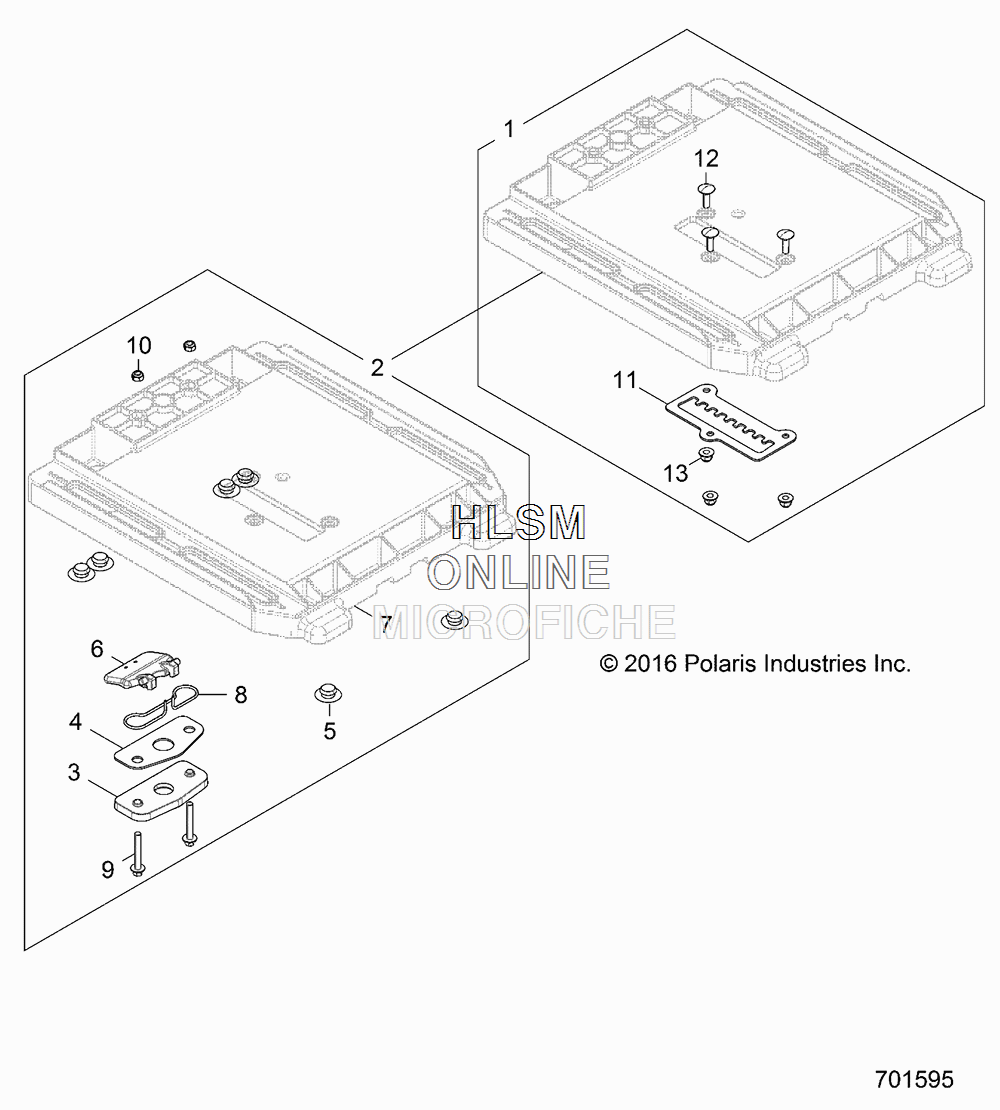

SEAT BASE ASSY для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
12685704 ASM-BASE, SEAT SLIDER (INCL 12-13)ASM-BASE, SEAT SLIDER (INCL 12-13)
-
22634889 ASM-BASE, SEAT (INCL 3-10)ASM-BASE, SEAT (INCL 3-10)
-
35450510-070 LATCH-COVER PLATE, BLACKLATCH-COVER PLATE, BLACK
-
45258647 PLATE-LATCH, SEATPLATE-LATCH, SEAT
-
55413441 GROMMET-SEAT BASEGROMMET-SEAT BASE
-
65437121 LEVER-LATCH, SEAT (INCL 5)LEVER-LATCH, SEAT (INCL 5)
-
75450170 SEAT-BASESEAT-BASE
-
87081466 SPRING-LATCH, SEATSPRING-LATCH, SEAT
-
97517610 SCR-M6X1.00X40-HX/FL-YDSCR-M6X1.00X40-HX/FL-YD
-
107546703 NUT-6MM X 1 NYLOK-ZNUT-6MM X 1 NYLOK-Z
-
115257975 BRKT-SEAT SLIDER ADJ PLATEBRKT-SEAT SLIDER ADJ PLATE
-
127518994 SCR-RIGHT HANDCARM6X1.0X20 8.8 ZODSCR-RIGHT HANDCARM6X1.0X20 8.8 ZOD
-
137547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
