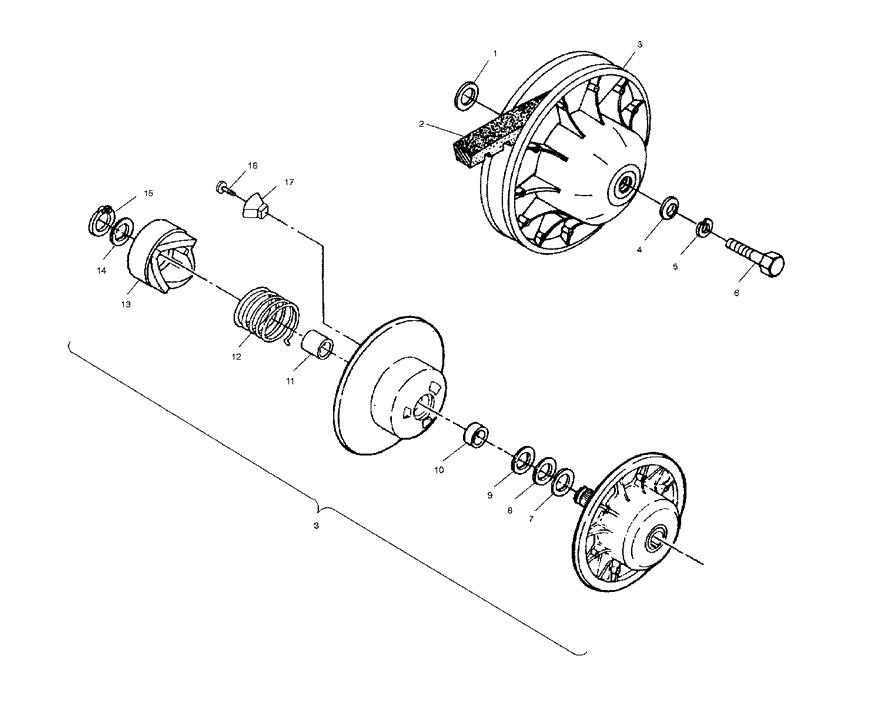

CLUTCH - DRIVEN для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
17556120 BUSHINGBUSHING
-
23211077 BELT, DRIVEBELT, DRIVE
-
31321848 CLUTCH, DRIVEN ASSY, 40 DEG (BLACK) (INCL 7-11,14-17)CLUTCH, DRIVEN ASSY, 40 DEG (BLACK) (INCL 7-11,14-17)
-
45220646 WASHER, DOMEDWASHER, DOMED
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67515382 BOLTBOLT
-
77555898 WASHERWASHER
-
87556076 WASHERWASHER
-
97556804 WASHERWASHER
-
103576504 BUSHING, MOVEABLE, 1/2 INCHBUSHING, MOVEABLE, 1/2 INCH
-
113576511 BUSHING, MOVEABLE, 1 INCHBUSHING, MOVEABLE, 1 INCH
-
127041782 SPRING-CLTCH, CHRM, SLCN (BLACK)SPRING-CLTCH, CHRM, SLCN (BLACK)
-
135131446 RAMP, STA.MACH, HVY RETRAMP, STA.MACH, HVY RET
-
145210752 SPACER, .020SPACER, .020
-
157710448 RING, RETAININGRING, RETAINING
-
167511854 BOLTBOLT
-
175430766 BUTTON, RAMPBUTTON, RAMP
