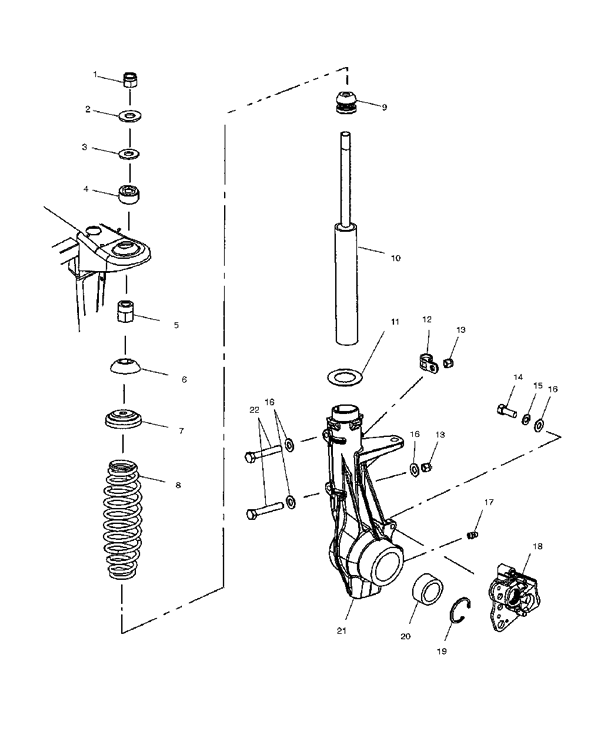

SUSPENSION - FRONT STRUT для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87041985-067 SPRING-COMP, 120/150 (BLACK)SPRING-COMP, 120/150 (BLACK)
-
95411608 BUMPER, MCU, 17.8MM IDBUMPER, MCU, 17.8MM ID
-
107041784 STRUT-FRONT, 18X30MM, 153.8MM STSTRUT-FRONT, 18X30MM, 153.8MM ST
-
115211115 WASHERWASHER
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT, NYLOKNUT, NYLOK
-
147512365 SCREW, CAPSCREW, CAP
-
157552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167558402 WASHER, FLATWASHER, FLAT
-
177080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
197710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
203514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
211820899 HUBSTRUT ASSY (LEFT) (INC 12,13,16,19,20,22)HUBSTRUT ASSY (LEFT) (INC 12,13,16,19,20,22)
-
211820901 HUBSTRUT ASSY (RIGHT) (INC 12,13,16,19,20,22)HUBSTRUT ASSY (RIGHT) (INC 12,13,16,19,20,22)
-
227515339 BOLTBOLT
