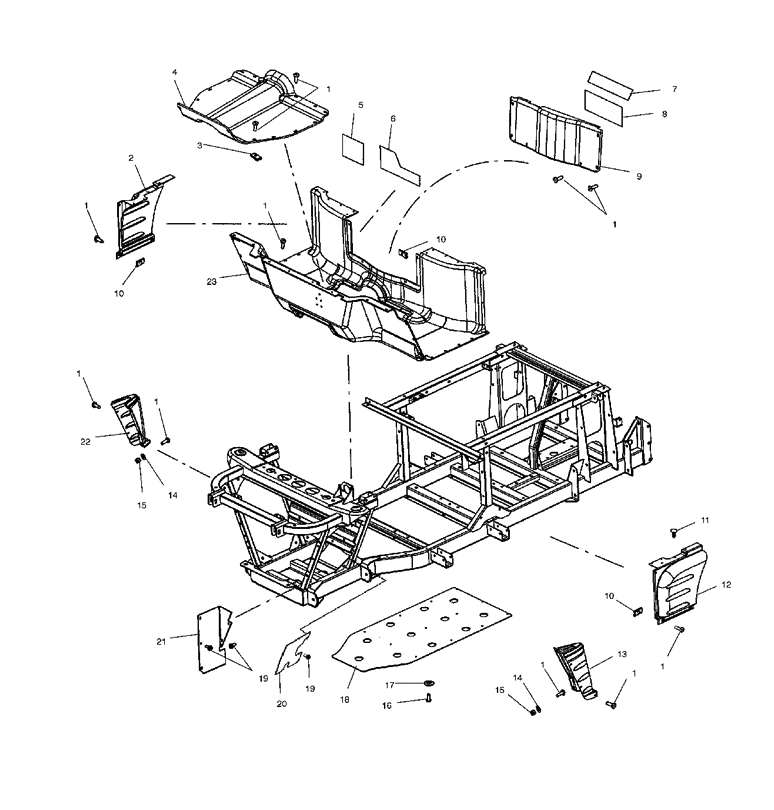

MOLDINGS AND SEAT для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
25433827-070 FENDER, REAR (RIGHT) (BLACK)FENDER, REAR (RIGHT) (BLACK)
-
37670145 NUTNUT
-
45434004 COVER DRIVE SHAFT, FLOORBOARDCOVER DRIVE SHAFT, FLOORBOARD
-
55812222 FOIL-SEAT BASE, EXHAUSTFOIL-SEAT BASE, EXHAUST
-
65812243 FOIL-HEAT SHEILD, FLOORFOIL-HEAT SHEILD, FLOOR
-
75812296 FOIL-COVER, UPPERFOIL-COVER, UPPER
-
85812242 FOIL-HEAT SHEILD, DOG HOUSEFOIL-HEAT SHEILD, DOG HOUSE
-
92632478 FLOOR ASSY, DOG HOUSE COVER (INC 7,8)FLOOR ASSY, DOG HOUSE COVER (INC 7,8)
-
107670057 NUT, SPEEDNUT, SPEED
-
117670090 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
125433826-070 FENDER, REAR (LEFT) (BLACK)FENDER, REAR (LEFT) (BLACK)
-
135433828-070 FENDER, FRONT (LEFT) (BLACK)FENDER, FRONT (LEFT) (BLACK)
-
147555935 WASHERWASHER
-
157542122 NUT-NYLOKNUT-NYLOK
-
167517386 SCREWSCREW
-
177556065 WASHERWASHER
-
185812176 PLATE-SKIDPLATE-SKID
-
197512084 SCREWSCREW
-
205434903 PANEL-WHEEL WELLPANEL-WHEEL WELL
-
215434026 PANEL-WHEEL WELL (LEFT)PANEL-WHEEL WELL (LEFT)
-
215434027 PANEL-WHEEL WELL (RIGHT)PANEL-WHEEL WELL (RIGHT)
-
225433829-070 FENDER (FRONT) (RIGHT) (BLACK)FENDER (FRONT) (RIGHT) (BLACK)
-
232632477 FLOOR-MAIN (INC FOIL)FLOOR-MAIN (INC FOIL)
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- BRAKE LINES - MASTER CYLINDER
- CAB FRAME
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CHASSIS BODY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL BATTERY
- ENGINE AND CLUTCH AIR INTAKE
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FRONT HOUSING MOUNTING
- FUEL TANK
- GEAR SELECTOR - DIFFERENTIAL LOCK
- GEARCASE
- GEARCASE - REAR
- HOOD
- MAGNETO
- • MOLDINGS AND SEAT
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/01/02)
- OIL TANK (IF BUILT BEFORE 1/01/02)
- PARK BRAKE LOCK
- REAR BRAKE CALIPERS
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
