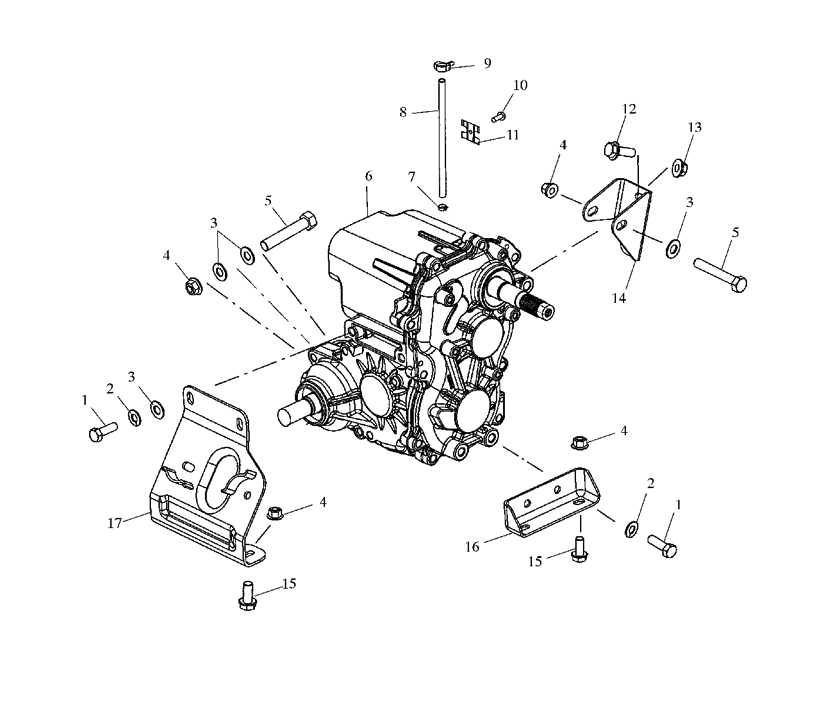

MOUNTING - TRANSMISSION для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
17515522 BOLTBOLT
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555976 WASHER, FLATWASHER, FLAT
-
47547108 NUTNUT
-
57515417 SCREWSCREW
-
77080307 CLAMP, HOSECLAMP, HOSE
-
88450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
97670102 CLIPCLIP
-
107511840 SCREWSCREW
-
117080525 T-CLIPT-CLIP
-
127515398 SCREWSCREW
-
137542321 NUT, FLANGENUT, FLANGE
-
145244599-067 BRACKET, MOUNT, TRANNY (REAR) (BLACK)BRACKET, MOUNT, TRANNY (REAR) (BLACK)
-
157517289 SCREWSCREW
-
165242820-067 MOUNT, TRANSMISSION (BLACK)MOUNT, TRANSMISSION (BLACK)
-
171013134-067 MOUNT, ENGINE (REAR) (BLACK)MOUNT, ENGINE (REAR) (BLACK)
