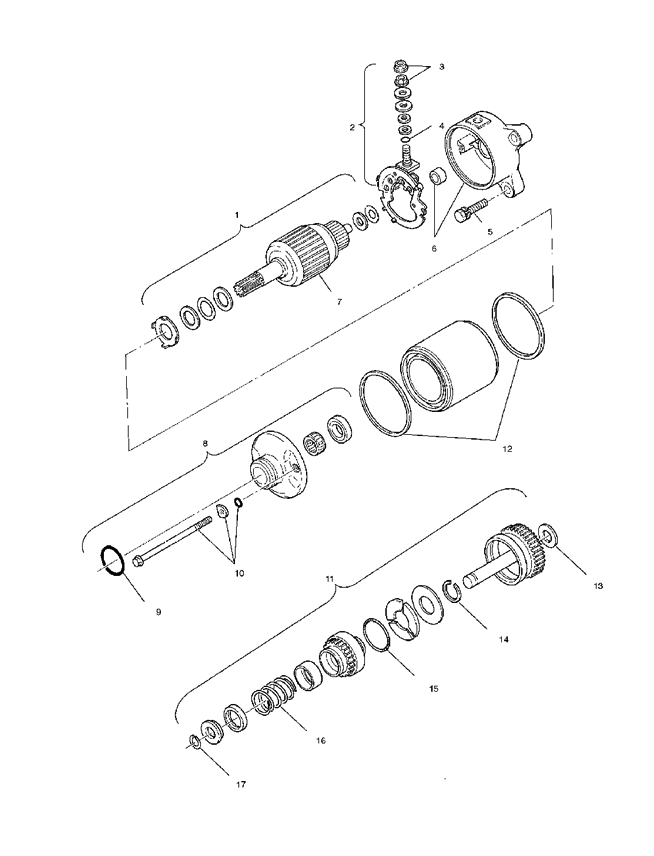

STARTING MOTOR для Polaris RANGER 4X4 SERIES 10 [A10RD50AA] - 2003 года выпуска
-
№АртикулНазвание
-
-3084981 MOTOR ASSY, STARTING (INC 1-4,6-10,12)MOTOR ASSY, STARTING (INC 1-4,6-10,12)
-
13084982 WASHER SETWASHER SET
-
23084406 CARBON BRUSH SETCARBON BRUSH SET
-
33083649 NUT, FLANGENUT, FLANGE
-
43084408 O-RINGO-RING
-
53082038 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
63085034 COVER ASSY (REAR)COVER ASSY (REAR)
-
73085353 ARMATURE ASSYARMATURE ASSY
-
83085033 BRACKET, FRONT ASSYBRACKET, FRONT ASSY
-
93240114 O-RINGO-RING
-
103084983 BOLT ASSY, SET (INC 4)BOLT ASSY, SET (INC 4)
-
113087030 GEAR SHAFT ASSY (INC 13-17)GEAR SHAFT ASSY (INC 13-17)
-
123084405 RING, RUBBERRING, RUBBER
-
133083737 WASHERWASHER
-
143084412 CLIPCLIP
-
153084411 SPRING, WEIGHTSPRING, WEIGHT
-
163084410 SPRING, RETURNSPRING, RETURN
-
173084409 CLIPCLIP
