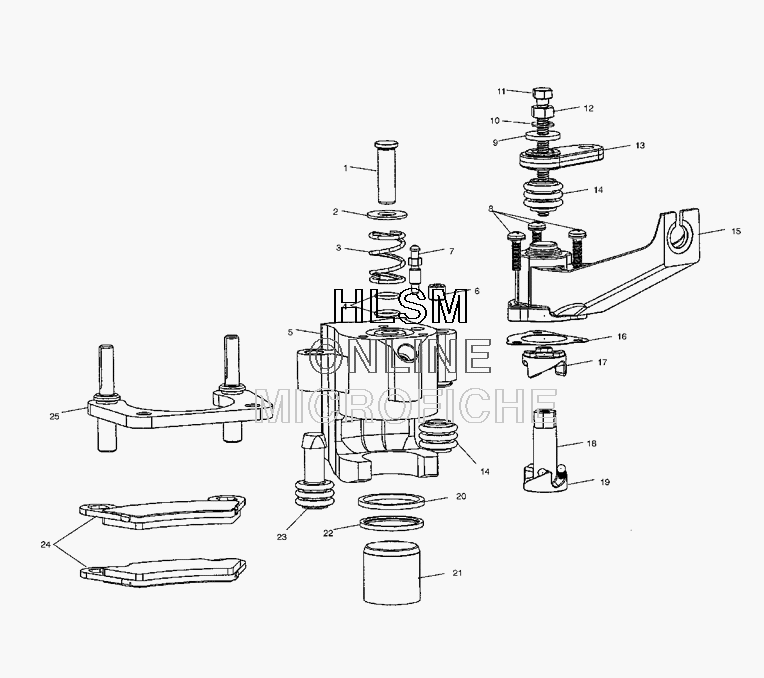

BRAKE - REAR CALIPER для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
15133195 PLUNGER-BRAKEPLUNGER-BRAKE
-
27556205 WSHR-FLAT,PLUNGERWSHR-FLAT,PLUNGER
-
31910581 SPRING-COMPRESSIONSPRING-COMPRESSION
-
45412127 O-RING-1/16 C/SX3/8X1/2 ODO-RING-1/16 C/SX3/8X1/2 OD
-
51910638 ASM-CALIPER,BRAKE,1.25,LH,W/PB (INCLUDES 5-25) (IF BUILT BEFORE 11/05/03)ASM-CALIPER,BRAKE,1.25,LH,W/PB (INCLUDES 5-25) (IF BUILT BEFORE 11/05/03)
-
51910639 ASM-CALIPER,BRAKE,1.5,RH,W/PB (INCLUDES 5-25) (IF BUILT BEFORE 11/05/03)ASM-CALIPER,BRAKE,1.5,RH,W/PB (INCLUDES 5-25) (IF BUILT BEFORE 11/05/03)
-
51910786 ASM-CALIPER,BRAKE,1.25, LEFT HAND,W/PB (INCLUDES 5-25) (IF BUILT AFTER 11/05/03)ASM-CALIPER,BRAKE,1.25, LEFT HAND,W/PB (INCLUDES 5-25) (IF BUILT AFTER 11/05/03)
-
51910787 ASM-CALIPER,BRAKE,1.5, RIGHT HAND,W/PB (INCLUDES 5-25) (IF BUILT AFTER 11/05/03)ASM-CALIPER,BRAKE,1.5, RIGHT HAND,W/PB (INCLUDES 5-25) (IF BUILT AFTER 11/05/03)
-
67515489 SCR-3/8-24X5/16 SOC SET-YSCR-3/8-24X5/16 SOC SET-Y
-
77080352 SCREW,BLEEDERSCREW,BLEEDER
-
87517963 SCR-10-32X.62 PHILLIPS SIMSSCR-10-32X.62 PHILLIPS SIMS
-
97556206 WSHR-1/4'' FLAT,.060 THKWSHR-1/4'' FLAT,.060 THK
-
107552605 WASHERWASHER
-
117517964 BOLT-1/4-20X2 1/2 LG HEX HEADBOLT-1/4-20X2 1/2 LG HEX HEAD
-
127542105 NUT HEXNUT HEX
-
135133196 LEVER-BRAKE ACTUATORLEVER-BRAKE ACTUATOR
-
145410494 BOOT-PIN SEALBOOT-PIN SEAL
-
155245793 BRKT-HOUSING, LEFT HANDBRKT-HOUSING, LEFT HAND
-
155245794 BRKT-HOUSING, RIGHT HANDBRKT-HOUSING, RIGHT HAND
-
165830214 GASKET-RAMPGASKET-RAMP
-
175133199 INSERT-BALL TRACK, LEFT HANDINSERT-BALL TRACK, LEFT HAND
-
175133201 INSERT-BALL TRACK, RIGHT HANDINSERT-BALL TRACK, RIGHT HAND
-
185133202 BRAKE-ACTUATOR, LEFT HANDBRAKE-ACTUATOR, LEFT HAND
-
185133203 BRAKE-ACTUATOR, RIGHT HANDBRAKE-ACTUATOR, RIGHT HAND
-
193514375 BALL-.187 STEELBALL-.187 STEEL
-
205411596 SEAL-CALIPER,INNER,1.25''SEAL-CALIPER,INNER,1.25''
-
215132405 PISTON-CALIPER,1.25PISTON-CALIPER,1.25
-
225411597 SEAL-CALIPER,OUTER,1.25''SEAL-CALIPER,OUTER,1.25''
-
235410495 BOOT-PIN BUSHINGBOOT-PIN BUSHING
-
242202413 KIT-BRAKE PAD,ASM,1.5KIT-BRAKE PAD,ASM,1.5
-
251910513 ASM-CALIPER MOUNT (IF BUILT BEFORE 11/05/03)ASM-CALIPER MOUNT (IF BUILT BEFORE 11/05/03)
-
251910802 ASM-CALIPER MOUNT (IF BUILT AFTER 11/05/03)ASM-CALIPER MOUNT (IF BUILT AFTER 11/05/03)
