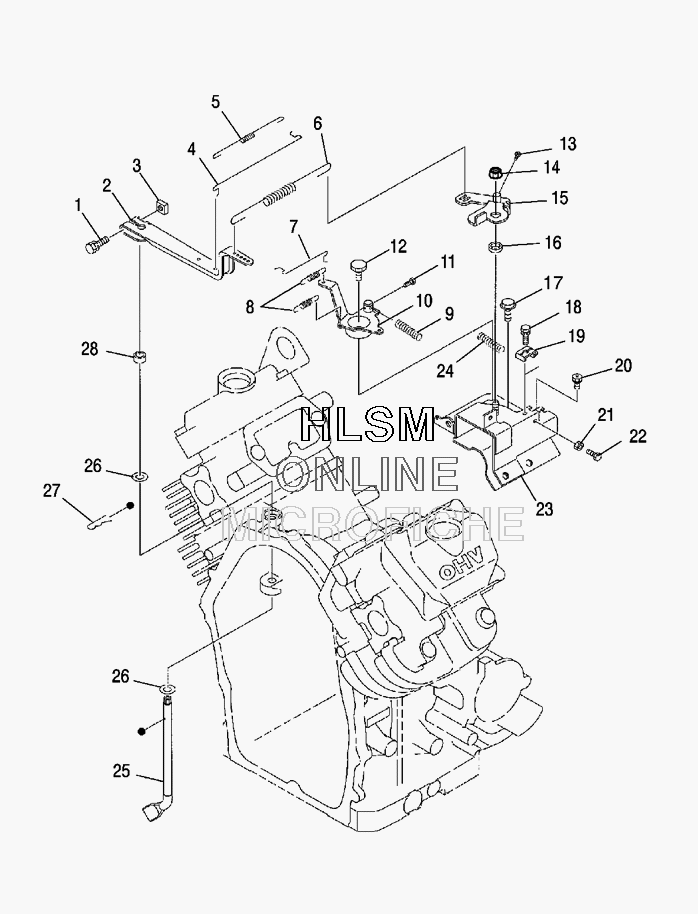

GOVERNOR для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
13082038 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
23088781 LEVER,GOVERNORLEVER,GOVERNOR
-
33088786 NUTNUT
-
43088783 ROD,GOVERNORROD,GOVERNOR
-
53088407 SPRING-RODSPRING-ROD
-
63088782 SPRING,GOVERNORSPRING,GOVERNOR
-
73088779 ROD,CHOKE CONTROLROD,CHOKE CONTROL
-
83088733 SPRING,RETURNSPRING,RETURN
-
93086739 SPRINGSPRING
-
103089521 LINK,CHOKE,CONTROLLINK,CHOKE,CONTROL
-
113086609 SCREWSCREW
-
123086052 PIVOT,LINKPIVOT,LINK
-
133086609 SCREWSCREW
-
143083856 NUT, FLANGENUT, FLANGE
-
153088784 ASM,SPEED CONTROL LEVERASM,SPEED CONTROL LEVER
-
163088735 SPACERSPACER
-
173086782 BOLT,FLANGEBOLT,FLANGE
-
183088736 ASM,BOLT AND WASHERASM,BOLT AND WASHER
-
193088734 CLAMPCLAMP
-
203088780 SCREW,TAPPINGSCREW,TAPPING
-
213083042 NUTNUT
-
223088787 BOLTBOLT
-
233088785 BRACKET,SPEED CONTROLBRACKET,SPEED CONTROL
-
243089503 SPRING-CHOKE RETURNSPRING-CHOKE RETURN
-
253088402 GOVENOR-SHAFTGOVENOR-SHAFT
-
263080142 WASHERWASHER
-
273088229 PIN-SNAPPIN-SNAP
-
283088703 SPACERSPACER
