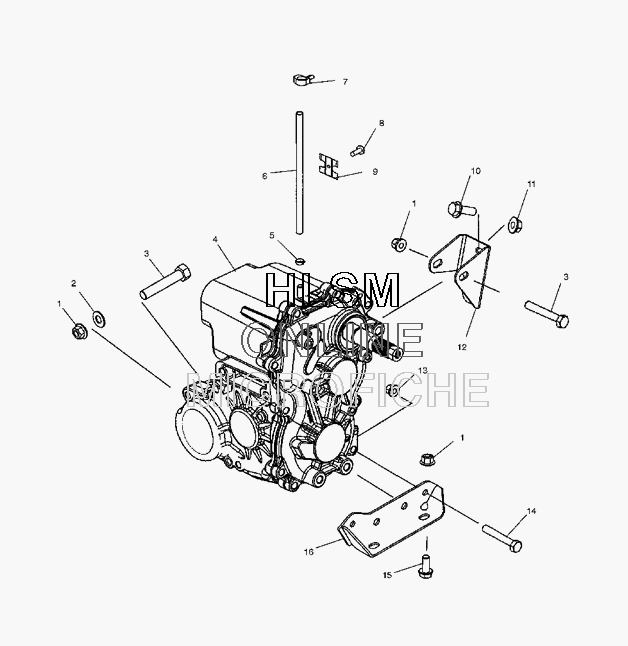

MOUNTING - TRANSMISSION для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
17547108 NUTNUT
-
27555976 WASHER,FLATWASHER,FLAT
-
37515417 SCREWSCREW
-
57080307 CLAMP,HOSECLAMP,HOSE
-
68450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
74020149 CLIP,ROSEBUDCLIP,ROSEBUD
-
87511840 SCREWSCREW
-
97080525 T-CLIPT-CLIP
-
107515398 SCREWSCREW
-
117542321 NUT,FLANGENUT,FLANGE
-
125247348 BRKT-MNT,TRANS,REAR,PLTDBRKT-MNT,TRANS,REAR,PLTD
-
133234043 NUTNUT
-
143234042 SCREWSCREW
-
157517289 SCREWSCREW
-
163234044 BRACKETBRACKET
