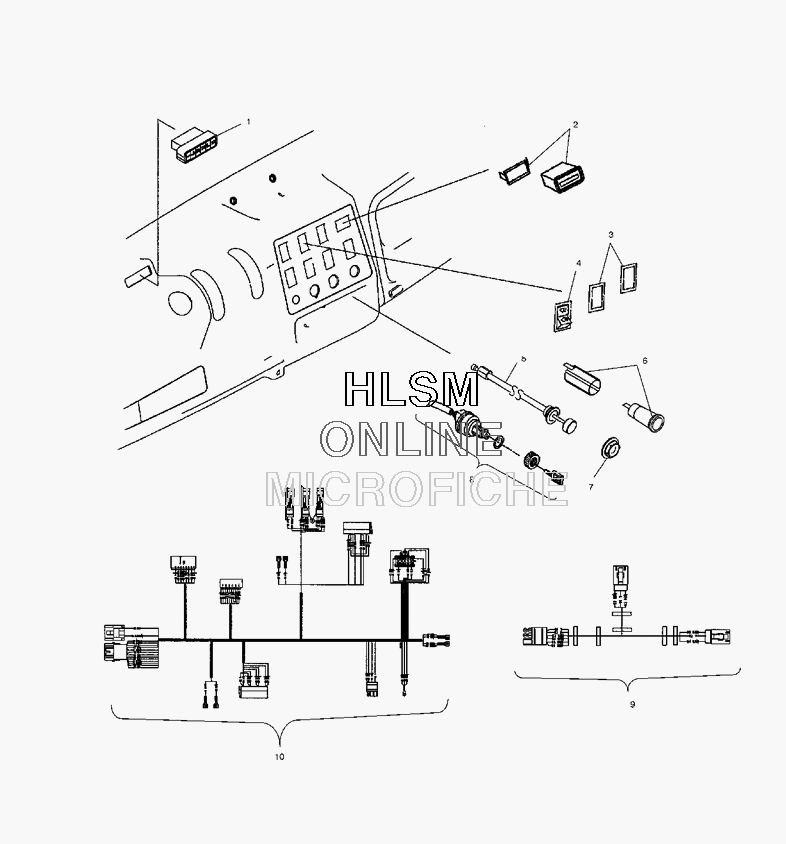

DASH INSTRUMENTS W/ CONTROLS для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
14011003 PANEL-INDICATORPANEL-INDICATOR
-
24010460 HOURMETER-12V,NON-POL,RECTNGLRHOURMETER-12V,NON-POL,RECTNGLR
-
35434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
-
44010525 SWITCH-HEADLIGHTSWITCH-HEADLIGHT
-
57081135 CABLE-CHOKECABLE-CHOKE
-
64010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
77080922 NUT,CHOKE,M24X1.5 THD,M29 HEXNUT,CHOKE,M24X1.5 THD,M29 HEX
-
84011002 SWITCH-KEY,3 POS,MT SLVSWITCH-KEY,3 POS,MT SLV
-
92460978 HARNESS-HEADLITE/HOOD,RANGER (IF BUILT BEFORE 9/22/03)HARNESS-HEADLITE/HOOD,RANGER (IF BUILT BEFORE 9/22/03)
-
92461223 HARNESS-HEADLITE/HOOD (INCLUDES AFTER 9/22/03)HARNESS-HEADLITE/HOOD (INCLUDES AFTER 9/22/03)
-
102461154 HARNESS-DASH,WRKMSTRHARNESS-DASH,WRKMSTR
