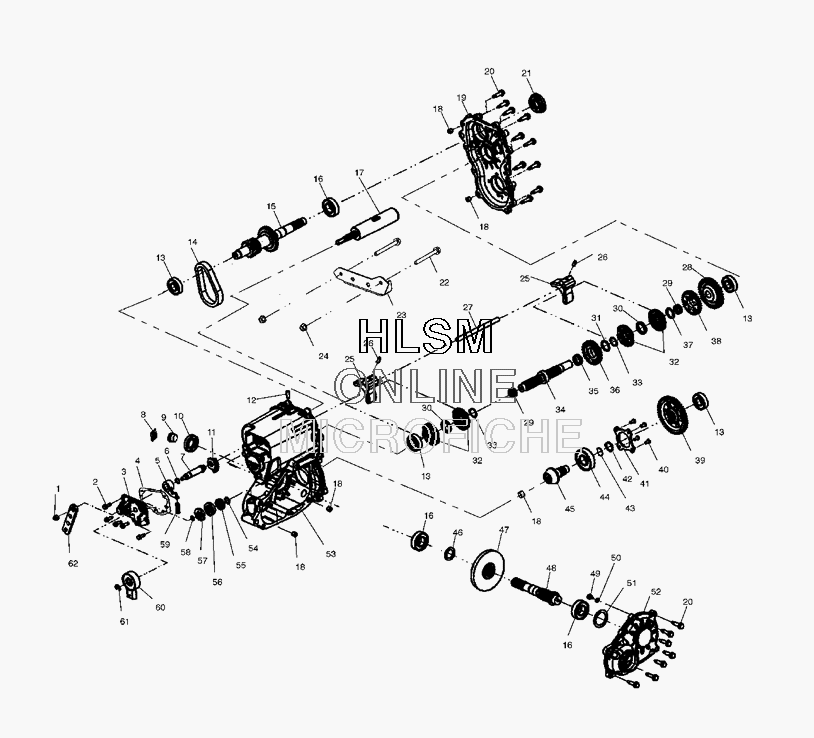

GEARCASE для Polaris RANGER TM [R04RB63AA] - 2004 года выпуска
-
№АртикулНазвание
-
13233961 NUT-LOCK HEX FLANGE NYLON 5/16NUT-LOCK HEX FLANGE NYLON 5/16
-
23233826 SCREWSCREW
-
33234124 COVER,GEARCASECOVER,GEARCASE
-
43234123 GASKETGASKET
-
53233829 PAWL-DETENTPAWL-DETENT
-
63233828 O-RINGO-RING
-
73233831 SHAFT-SHIFTSHAFT-SHIFT
-
83234143 LABEL-OIL FILL/LEVEL CHECKLABEL-OIL FILL/LEVEL CHECK
-
93233794 PLUG-HEX,HOLLOW, WITH O-RINGPLUG-HEX,HOLLOW, WITH O-RING
-
103233842 SEAL-VITON,TRIPLE LIPSEAL-VITON,TRIPLE LIP
-
113233832 GEAR-SECTOR,31T-CUT TO 11TGEAR-SECTOR,31T-CUT TO 11T
-
123233524 TUBE,VENTTUBE,VENT
-
133233018 BEARINGBEARING
-
143233036 CHAIN,SILENT,34PCHAIN,SILENT,34P
-
153234145 SUBASM-INPUT SHAFTSUBASM-INPUT SHAFT
-
163233019 BEARINGBEARING
-
173234146 DRUM-SHIFTDRUM-SHIFT
-
183233247 PIN, DOWELPIN, DOWEL
-
193234127 COVER, LEFT HAND MAINCOVER, LEFT HAND MAIN
-
203233846 SCREW-ROLL FORMINGSCREW-ROLL FORMING
-
213233866 SEAL-VITON,DUAL LIPSEAL-VITON,DUAL LIP
-
223234042 SCREWSCREW
-
233234044 BRACKETBRACKET
-
243234043 NUTNUT
-
253233858 SUB ASM-SHIFT FORK,W/PINSUB ASM-SHIFT FORK,W/PIN
-
263233859 PIN-DOWELPIN-DOWEL
-
273233860 RAIL-SHIFT SHAFT,C VERSIONRAIL-SHIFT SHAFT,C VERSION
-
283233971 GEAR-34T,HELICALGEAR-34T,HELICAL
-
293233718 BEARING,NDL,SPLIT CAGEBEARING,NDL,SPLIT CAGE
-
303234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
313233894 WASHERWASHER
-
323233875 DOG-ENGAGEMENT,6 FACEDOG-ENGAGEMENT,6 FACE
-
333233850 RING-RETAININGRING-RETAINING
-
343233892 SHAFT-REVERSESHAFT-REVERSE
-
353233103 BEARING, NEEDLEBEARING, NEEDLE
-
363233893 SPROCKET-24T,6 FACESPROCKET-24T,6 FACE
-
373233855 WASHERWASHER
-
383234030 GEAR-31T 6 FACE 410420GEAR-31T 6 FACE 410420
-
393233764 GEAR-HELICAL,50TGEAR-HELICAL,50T
-
403234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
-
413234122 COVER-BEARINGCOVER-BEARING
-
423233106 RING, SNAPRING, SNAP
-
433233357 SPACERSPACER
-
443233607 BEARING,BALLBEARING,BALL
-
453233606 SHAFT,10TSHAFT,10T
-
463233619 WASHER,THRUSTWASHER,THRUST
-
473233621 GEAR,SPIRAL BEVEL 31TGEAR,SPIRAL BEVEL 31T
-
483233622 SHAFT,REAR OUTPUTSHAFT,REAR OUTPUT
-
493233582 BUTTON,THRUSTBUTTON,THRUST
-
503233583 SHIM .450 X .265SHIM .450 X .265
-
513233611 SHIMSHIM
-
523234131 COVER-FRONT OUTPUT,MACHCOVER-FRONT OUTPUT,MACH
-
533234129 GEARCASE-MAIN,MACHGEARCASE-MAIN,MACH
-
543233840 O-RINGO-RING
-
553233839 GEAR-SECTOR,16TGEAR-SECTOR,16T
-
563233838 DISC-LOCKOUTDISC-LOCKOUT
-
573233837 DETENT-STARDETENT-STAR
-
583233836 O-RINGO-RING
-
593233830 SPRING-COMPRESSIONSPRING-COMPRESSION
-
603233835 SWITCH-ROTARY,6 PINSWITCH-ROTARY,6 PIN
-
613233834 RING-RETAININGRING-RETAINING
-
623233825 BELLCRANK-HLNRPBELLCRANK-HLNRP
-
-1341496 ASM-GEARCASE,MAINASM-GEARCASE,MAIN
