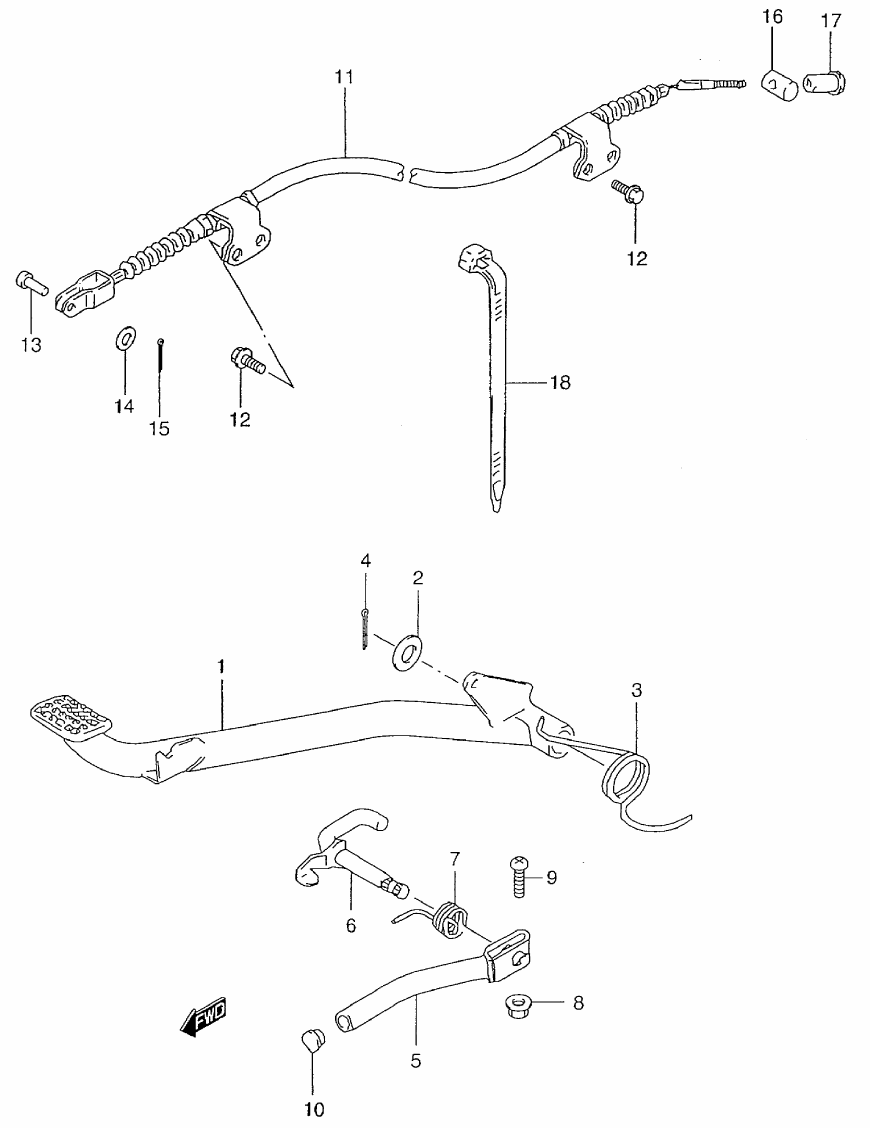

BRAKE - REAR PEDAL для Suzuki LT80K1 QUADSPORT - 2001 года выпуска
-
№АртикулНазвание
-
143110-40B00 PEDAL, BRAKEPEDAL, BRAKE
-
209160-15049 WASHERWASHER
-
343182-40B00 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
404111-30308 COTTER PINCOTTER PIN
-
543160-40B00 HANDLE, BRAKE PEDALHANDLE, BRAKE PEDAL
-
643150-40B00 STOPPER, BRAKE PEDALSTOPPER, BRAKE PEDAL
-
743192-40B00 SPRING. BRAKE PEDAL STOPPERSPRING. BRAKE PEDAL STOPPER
-
808316-20063 NUTNUT
-
902112-06303 SCREWSCREW
-
1009250-08013 CAPCAP
-
1158510-40B00 CABLE, REAR BRAKECABLE, REAR BRAKE
-
1201550-06163 BOLTBOLT
-
1309200-06013 PIN, FRONTPIN, FRONT
-
1408322-01063 WASHERWASHER
-
1504111-20208 COTTER PINCOTTER PIN
-
1609209-13006 PIN, REARPIN, REAR
-
1709150-06012 NUTNUT
-
1809407-11401 CLAMPCLAMP
