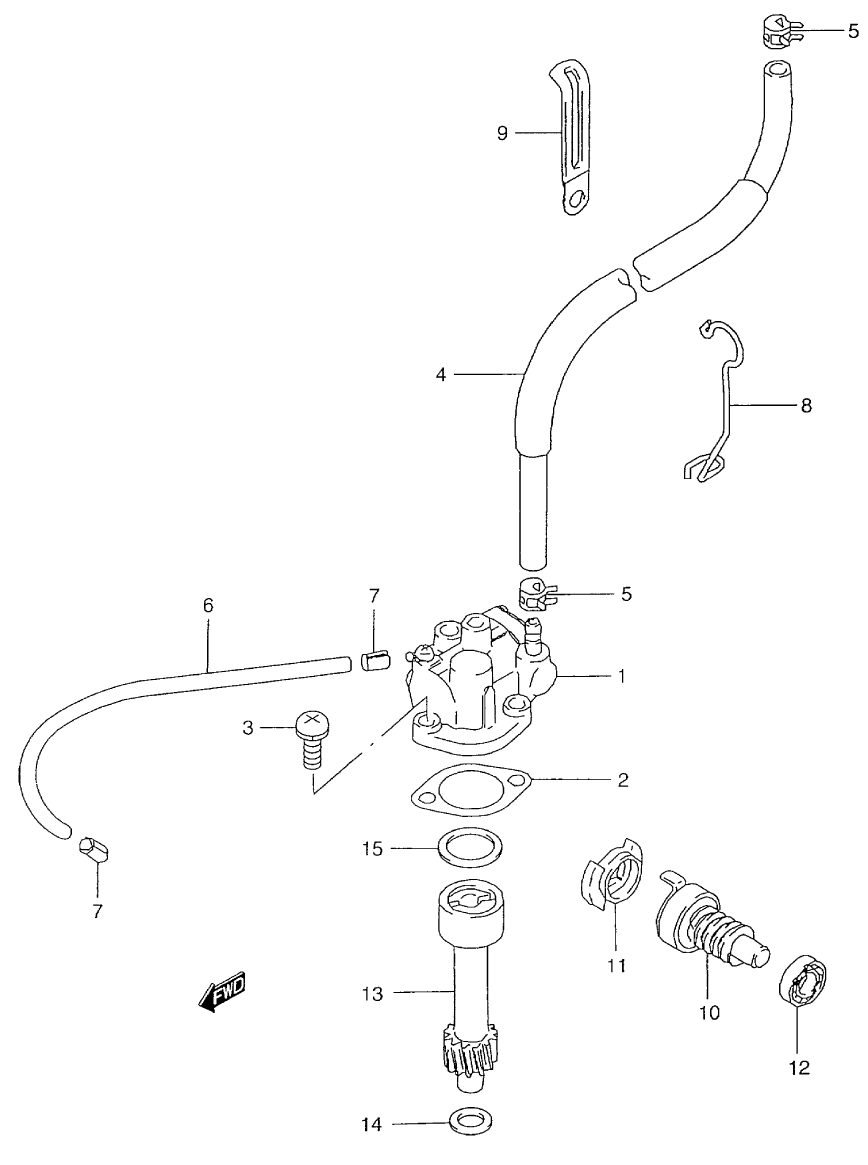

OIL PUMP для Suzuki LT80K1 QUADSPORT - 2001 года выпуска
-
№АртикулНазвание
-
116100-40B02 PUMP ASSY, OILPUMP ASSY, OIL
-
216731-02300 GASKET, OIL PUMPGASKET, OIL PUMP
-
302112-35163 SCREW (UP TO ENGINE NO. 215675)SCREW (UP TO ENGINE NO. 215675)
-
307130-05163 SCREW (ENGINE NO. 215676 AND ABOVE)SCREW (ENGINE NO. 215676 AND ABOVE)
-
416810-40B00 HOSEHOSE
-
509401-08411 CLIPCLIP
-
609352-20503-600 HOSE (2X5X600) (LENGTH 600->160)HOSE (2X5X600) (LENGTH 600->160)
-
709401-04401 CLIPCLIP
-
809403-13306 CLAMP, OIL HOSECLAMP, OIL HOSE
-
909404-06429 CLAMPCLAMP
-
1016320-03A02 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1116391-03A02 PIECE, OIL PUMP DRIVEPIECE, OIL PUMP DRIVE
-
1209262-08008 BEARING (8X22X7)BEARING (8X22X7)
-
1316331-11B00 GEAR, OIL PUMP DRIVEN (NT:13)GEAR, OIL PUMP DRIVEN (NT:13)
-
1408211-08121 WASHER (UP TO ENGINE NO. 190993)WASHER (UP TO ENGINE NO. 190993)
-
1409181-08111 WASHER (8X12X1) (ENGINE NO. 190994 AND ABOVE)WASHER (8X12X1) (ENGINE NO. 190994 AND ABOVE)
-
1508211-15201 THRUST WASHER (UP TO ENGINE NO. 190993)THRUST WASHER (UP TO ENGINE NO. 190993)
-
1509181-15111 THRUST WASHER (ENGINE NO. 190994 AND ABOVE)THRUST WASHER (ENGINE NO. 190994 AND ABOVE)
