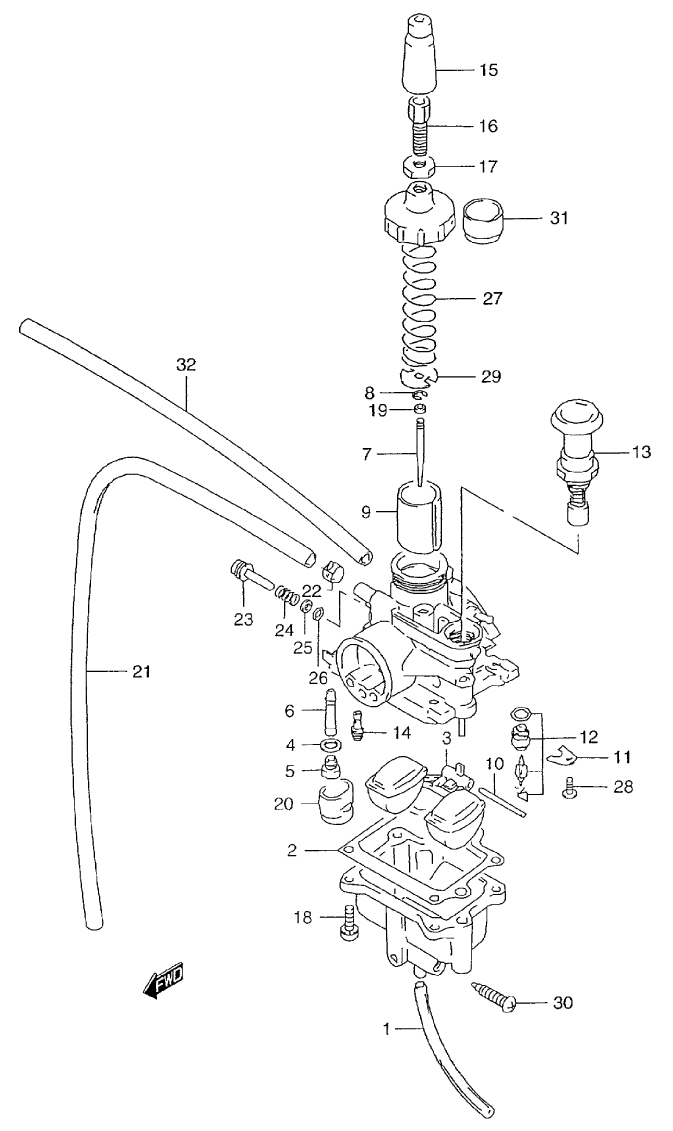

CARBURETOR для Suzuki LT80K1 QUADSPORT - 2001 года выпуска
-
№АртикулНазвание
-
-13200-40B10 CARBURETOR ASSYCARBURETOR ASSY
-
109351-30503-600 ...HOSE, OVER FLOW (3X5X600)...HOSE, OVER FLOW (3X5X600)
-
213258-02100 ...GASKET...GASKET
-
313250-16A00 ...FLOAT...FLOAT
-
413386-04700 ...GASKET...GASKET
-
509491-92004 ...JET, MAIN (92.5)...JET, MAIN (92.5)
-
609494-00553 ...JET, NEEDLE (E-0)...JET, NEEDLE (E-0)
-
713383-46B00 ...NEEDLE, JET (3J17-2)...NEEDLE, JET (3J17-2)
-
813394-40D00 ...E RING...E RING
-
913551-40B00 ...VALVE, PISTON (CA:2.5)...VALVE, PISTON (CA:2.5)
-
1013254-20010 ...PIN, FLOAT...PIN, FLOAT
-
1113373-46710 ...PLATE...PLATE
-
1213370-03A20 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
1313411-40B00 ...PLUNGER ASSY...PLUNGER ASSY
-
1409492-20008 ...JET, PILOT (20)...JET, PILOT (20)
-
1513681-33010 ...CAP...CAP
-
1613577-22600 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1713661-16600 ...NUT...NUT
-
1813601-04148 ...SCREW...SCREW
-
1913382-47010 ...GASKET...GASKET
-
2013697-40B00 ...CAP...CAP
-
2109351-35653-600 ...HOSE (3.5X6.5X600)...HOSE (3.5X6.5X600)
-
2213698-40B00 ...CLIP...CLIP
-
2313483-16A01 ...ADJUSTER...ADJUSTER
-
2413268-35010 ...SPRING...SPRING
-
2513291-35010 ...WASHER...WASHER
-
2613295-33010 ...0 RING...0 RING
-
2713573-98500 ...SPRING...SPRING
-
2802112-03063 ...SCREW...SCREW
-
2913447-30A00 ...PLATE...PLATE
-
3013247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
3113331-40B00 ...RING...RING
-
3209355-45855-600 HOSE, VACUUM (4.5X8.5X600) (LENGTH 600->240)HOSE, VACUUM (4.5X8.5X600) (LENGTH 600->240)
