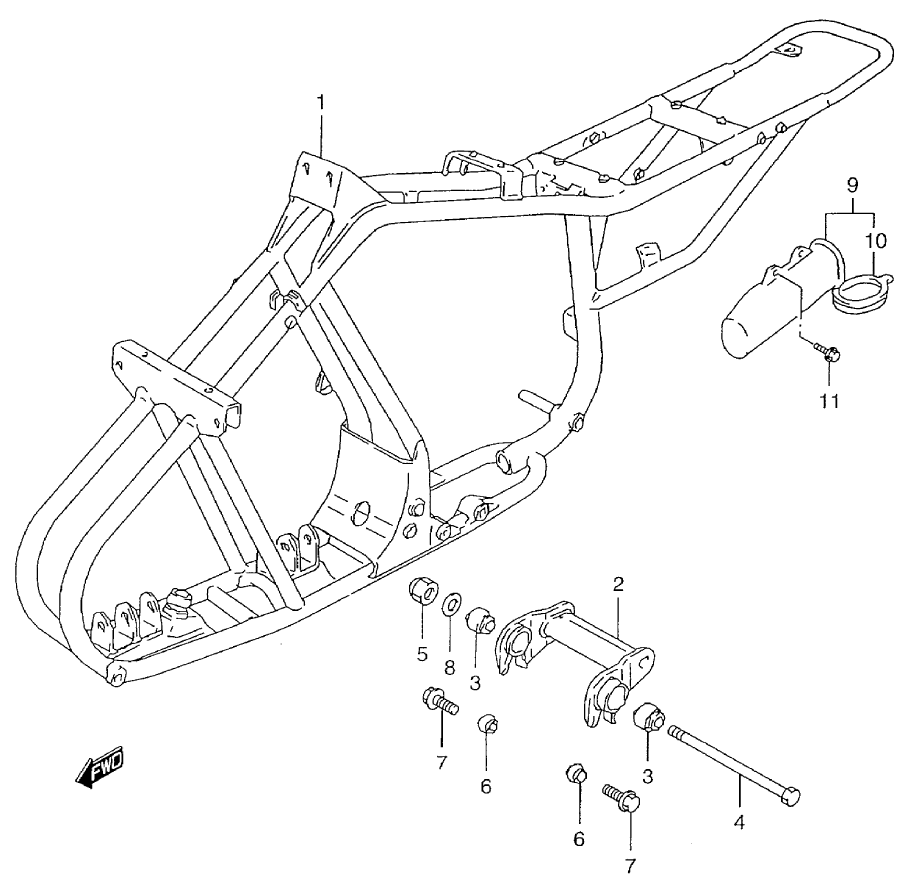

FRAME для Suzuki LT80K1 QUADSPORT - 2001 года выпуска
-
№АртикулНазвание
-
141100-40B12-019 FRAME (BLACK)FRAME (BLACK)
-
241180-40B10-019 BRACKET, CRANKCASE (BLACK)BRACKET, CRANKCASE (BLACK)
-
309319-14006 BUSHBUSH
-
461211-40B01 BOLT, CRANKCASE BRACKETBOLT, CRANKCASE BRACKET
-
508319-21148 NUTNUT
-
609320-10023 CUSHION, SWING STOPCUSHION, SWING STOP
-
701550-10303 BOLTBOLT
-
809160-14027 WASHERWASHER
-
941550-32E00 HOLDER TOOLHOLDER TOOL
-
1041552-37210 ...CAP...CAP
-
1109116-06006 BOLTBOLT
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - REAR PEDAL
- CARBURETOR
- COOLING FAN W/ DUCTS
- CRANKCASE
- CRANKCASE LEFT COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- • FRAME
- FUEL TANK
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- KNUCKLE W/ TIE RODS
- LABELS
- MAGNETO
- MODEL INFO - COLOR TABLE
- MUFFLER
- OIL PUMP
- OIL TANK
- OPTIONAL
- SEAT
- SHOCK ABSORBER - REAR W/GUARD AND CHAIN CASE
- STARTER - RECOIL (OPT)
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR W/ AXLE - BRAKE
