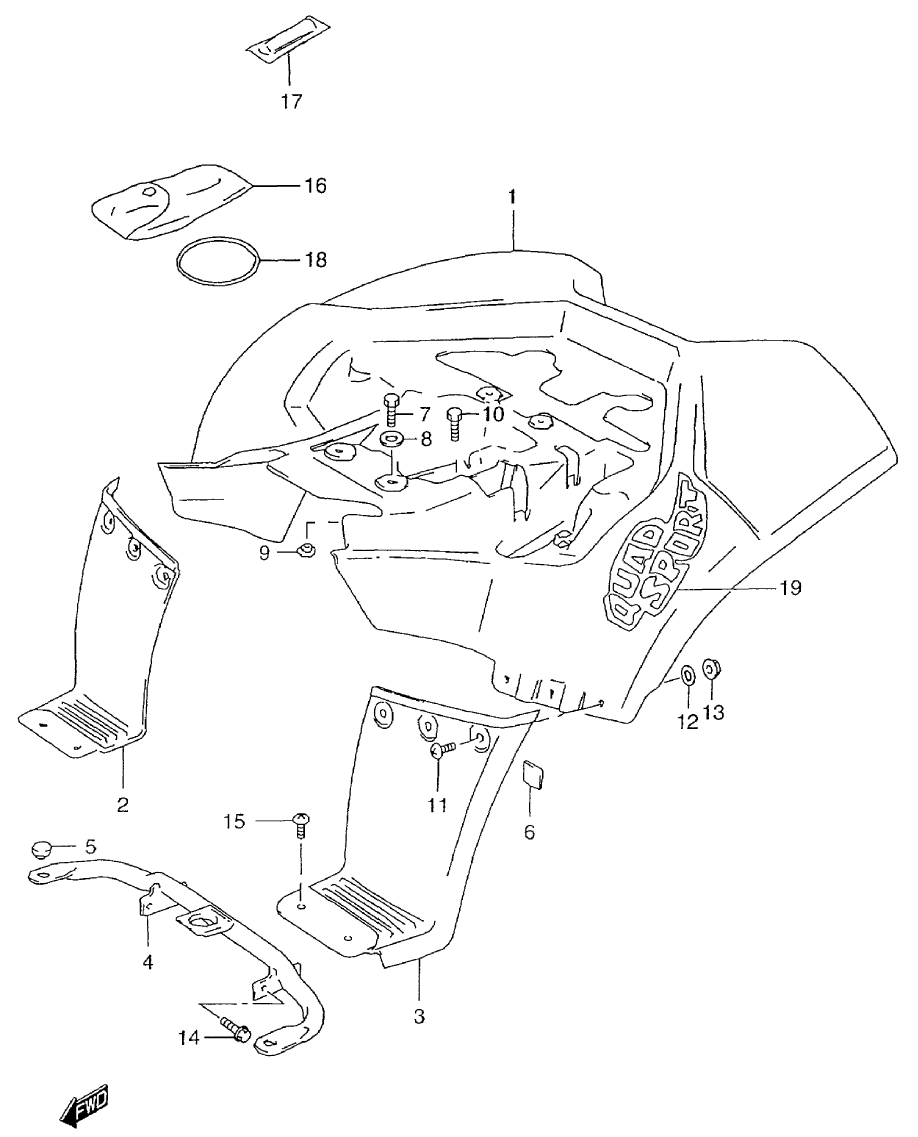

FENDER - REAR для Suzuki LT80K1 QUADSPORT - 2001 года выпуска
-
№АртикулНазвание
-
163111-40B01-25Y BODY. REAR CENTER (YELLOW)BODY. REAR CENTER (YELLOW)
-
263112-40B01-291 BODY, REAR FENDER RH (BLACK)BODY, REAR FENDER RH (BLACK)
-
363113-40B01-291 BODY, REAR FENDER LH (BLACK)BODY, REAR FENDER LH (BLACK)
-
463130-40B00 REINFORCEMENT, REAR FENDERREINFORCEMENT, REAR FENDER
-
509250-12006 CUSHIONCUSHION
-
663191-25C00 CUSHION, GUARDCUSHION, GUARD
-
701500-06207 BOLT, CENTER BODYBOLT, CENTER BODY
-
909169-08036 WASHERWASHER
-
1009116-06010 BOLTBOLT
-
1109136-06081 SCREWSCREW
-
1209160-06084 WASHERWASHER
-
1308319-31063 NUTNUT
-
1401550-06163 BOLTBOLT
-
1509136-06004 SCREWSCREW
-
1609800-21026 TOOL ASSYTOOL ASSY
-
1796200-18A01 GAUGE, AIRGAUGE, AIR
-
1809280-70004 BANDBAND
