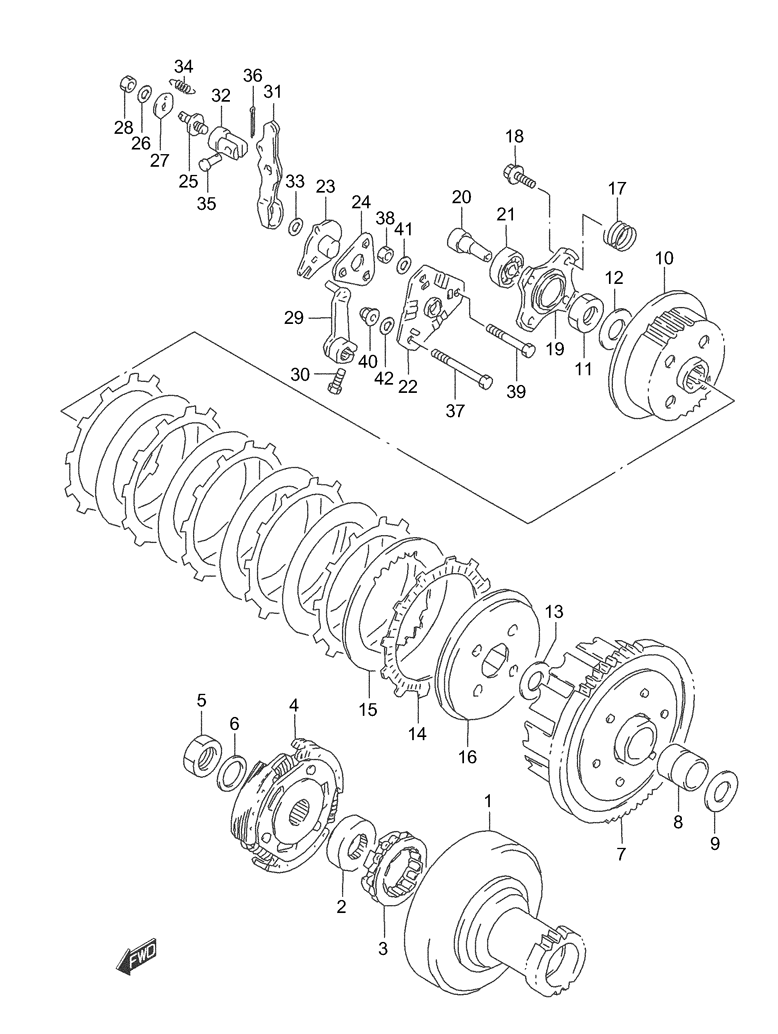

CLUTCH для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
121110-02C01 GEAR, PRIMARY DRIVE (NT:19)GEAR, PRIMARY DRIVE (NT:19)
-
221631-19B11 RACE, INNERRACE, INNER
-
321273-19B10 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
421500-02C02 CLUTCH ASSYCLUTCH ASSY
-
509140-18012 NUTNUT
-
609164-20007 WASHER (20.1X32X2)WASHER (20.1X32X2)
-
721200-02C02 GEAR ASSY, PRIMARY (NT:71)GEAR ASSY, PRIMARY (NT:71)
-
809180-22035 SPACER (22X28X23)SPACER (22X28X23)
-
909181-22251 WASHER (22X36X1.0)WASHER (22X36X1.0)
-
1021410-18A00 HUB, CLUTCHHUB, CLUTCH
-
1109140-20001 NUTNUT
-
1209164-18007 WASHER (18.3X31.5X1.80)WASHER (18.3X31.5X1.80)
-
1308211-20323 WASHERWASHER
-
1421441-22A01 PLATE, DRIVEPLATE, DRIVE
-
1521451-01B40 PLATE, DRIVENPLATE, DRIVEN
-
1621462-24501 DISC, PRESSUREDISC, PRESSURE
-
1709440-19022 SPRINGSPRING
-
1801550-06203 BOLTBOLT
-
1921465-24500 PLATE, RELEASEPLATE, RELEASE
-
2023121-18A03 PIECE, PUSHPIECE, PUSH
-
2109262-12001 BEARING (12X28X8.0)BEARING (12X28X8.0)
-
2223231-18A00 BALL GUIDE, OUTERBALL GUIDE, OUTER
-
2323211-18A02 BALL GUIDE, INNERBALL GUIDE, INNER
-
2423250-24500 BALL, RELEASEBALL, RELEASE
-
2523223-18A00 BOLT, ADJUSTERBOLT, ADJUSTER
-
2609160-06127 WASHER (6.5X14X2.3)WASHER (6.5X14X2.3)
-
2709169-06046 WASHER (6.5X22X1.2)WASHER (6.5X22X1.2)
-
2809140-06023 NUT, ADJUSTERNUT, ADJUSTER
-
2923220-18A00 ARM, RELEASEARM, RELEASE
-
3001500-06203 BOLTBOLT
-
3123225-18A01 ARM, RELEASE NO.2ARM, RELEASE NO.2
-
3223224-18A00 BOSS, RELEASE NO.2BOSS, RELEASE NO.2
-
3309181-10195 WASHER (10X20X1.0)WASHER (10X20X1.0)
-
3409443-06053 SPRINGSPRING
-
3509200-07005 PINPIN
-
3604111-16208 COTTER PINCOTTER PIN
-
3709119-06064 BOLT (6X55)BOLT (6X55)
-
3808310-00063 NUTNUT
-
3909119-06063 BOLT (6X35)BOLT (6X35)
-
4008313-20063 NUTNUT
-
4108212-06121 WASHERWASHER
-
4209168-06023 SEAL, BOLT (5.8X13X1.2)SEAL, BOLT (5.8X13X1.2)
