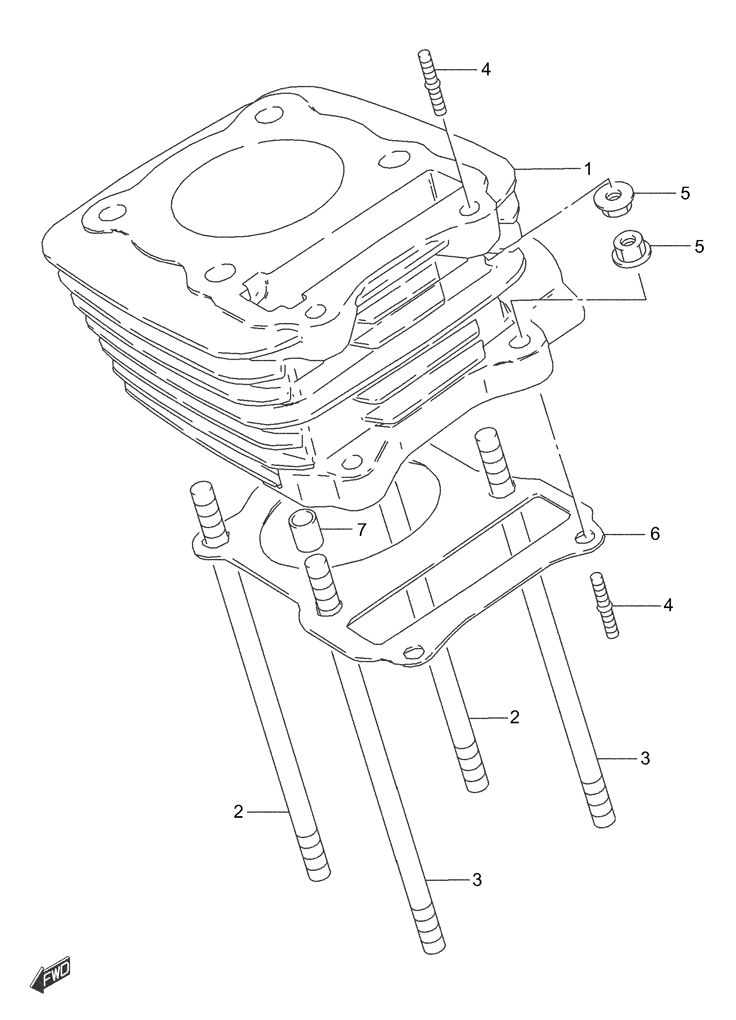

CYLINDER для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
111210-02C00-0F0 CYLINDERCYLINDER
-
209108-08170 STUD BOLT (L:147)STUD BOLT (L:147)
-
309108-08222 STUD BOLT (L:142)STUD BOLT (L:142)
-
401421-06203 STUD BOLT (GREEN)STUD BOLT (GREEN)
-
508316-10063 NUTNUT
-
611241-24402 GASKET, CYLINDERGASKET, CYLINDER
-
704211-11149 PINPIN
