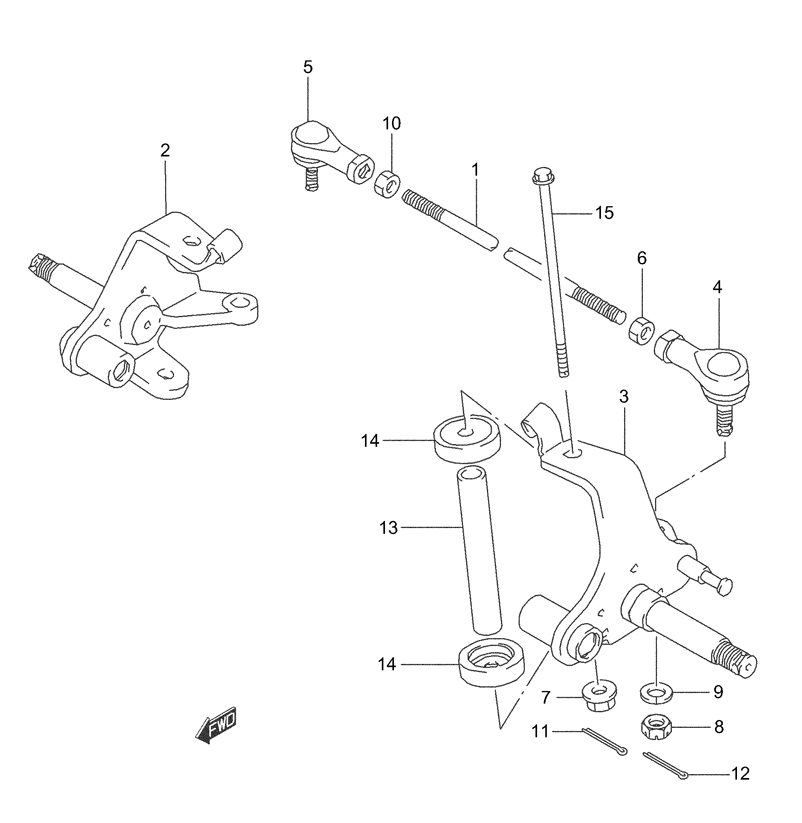

KNUCKLE W/ TIE RODS для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
151281-02C00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-02C01 KNUCKLE ARM, RIGHT HANDKNUCKLE ARM, RIGHT HAND
-
351240-02C01 KNUCKLE ARM, LEFT HANDKNUCKLE ARM, LEFT HAND
-
451260-02C00 ROD END (RIGHT HAND THREAD)ROD END (RIGHT HAND THREAD)
-
551270-02C00 ROD END (LEFT HAND THREAD)ROD END (LEFT HAND THREAD)
-
609140-10043 NUT (RIGHT HAND THREAD)NUT (RIGHT HAND THREAD)
-
708319-31103 NUTNUT
-
808314-40103 NUTNUT
-
909162-10008 LOCK WASHERLOCK WASHER
-
1009140-10027 NUT, TIE ROD (LEFT HAND THREAD)NUT, TIE ROD (LEFT HAND THREAD)
-
1104111-20208 COTTER PINCOTTER PIN
-
1204111-20208 COTTER PINCOTTER PIN
-
1351251-18901 SPACER, KINGPINSPACER, KINGPIN
-
1451255-18900 DUST SEAL (28.6X38X10.5)DUST SEAL (28.6X38X10.5)
-
1509103-10202 BOLT, KNUCKLE ARM (10X132)BOLT, KNUCKLE ARM (10X132)
