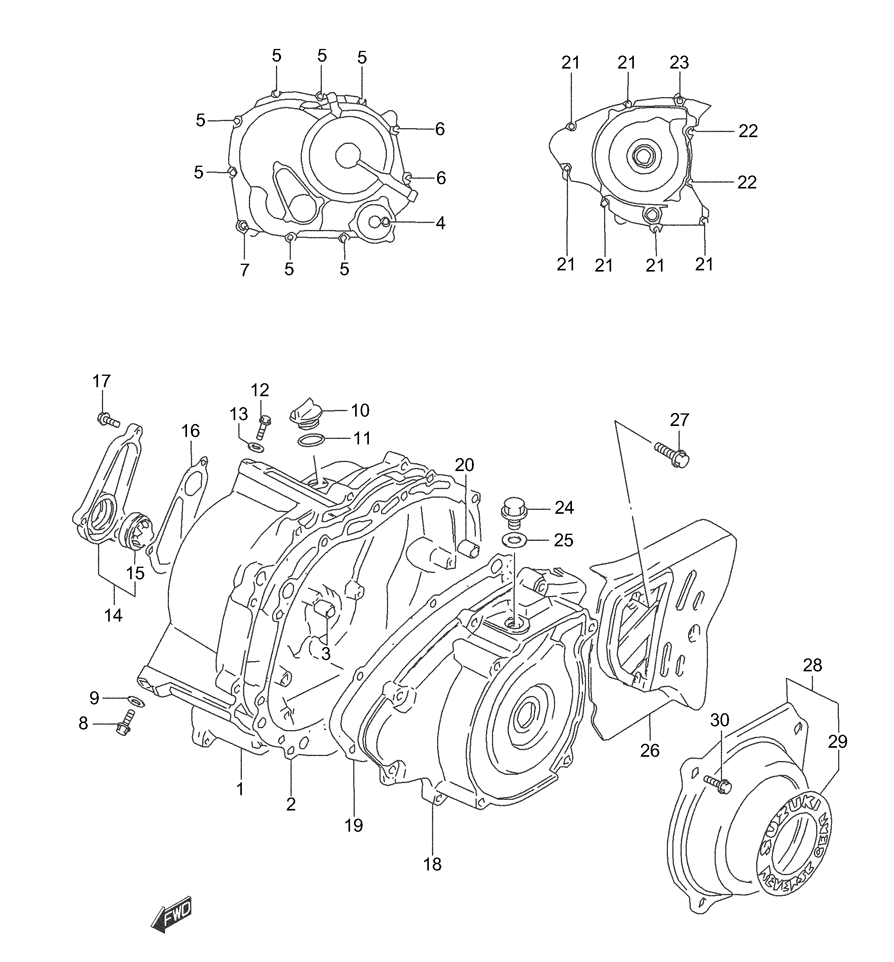

CRANKCASE COVER для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
111341-35B00 COVER, CLUTCHCOVER, CLUTCH
-
211482-02C10 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-13189 PINPIN
-
401547-06253 BOLT (6X25)BOLT (6X25)
-
501547-06353 BOLT (6X35)BOLT (6X35)
-
609103-06165 BOLT (6X45)BOLT (6X45)
-
701547-06553 BOLT (6X55)BOLT (6X55)
-
801550-08123 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
909168-08015 GASKETGASKET
-
1009259-20008 PLUG, OIL FILLERPLUG, OIL FILLER
-
1109280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1201550-06103 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1309168-06023 GASKET (5.8X11X1.2)GASKET (5.8X11X1.2)
-
1411410-18A10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
1511971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
1611495-02C10 GASKET, ADJUST CAPGASKET, ADJUST CAP
-
1701547-06253 BOLTBOLT
-
1811351-02C00 COVER, MAGNETOCOVER, MAGNETO
-
1911483-02C10 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
2004211-13189 PINPIN
-
2101547-06253 BOLT (6X25)BOLT (6X25)
-
2201547-06353 BOLT (6X35)BOLT (6X35)
-
2301547-06453 BOLT (6X45)BOLT (6X45)
-
2409247-14015 PLUG, T.D.CPLUG, T.D.C
-
2509168-14002 GASKETGASKET
-
2611360-02C00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2701547-06303 BOLTBOLT
-
2818110-02C00 COVER, RECOILCOVER, RECOIL
-
2968398-244A0-97V EMBLEM (SILVER/BLACK)EMBLEM (SILVER/BLACK)
-
3009103-06236 BOLTBOLT
