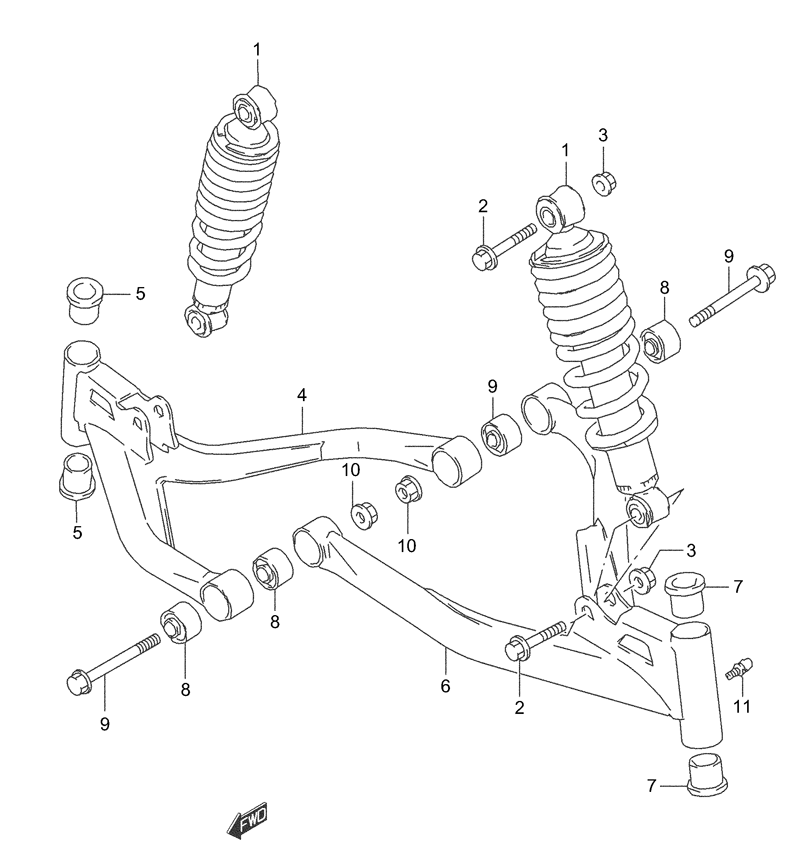

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT160 QUADRUNNER - 2004 года выпуска
-
№АртикулНазвание
-
152100-02C00-37W ABSORBER ASSY, FRONT SHOCK (RED)ABSORBER ASSY, FRONT SHOCK (RED)
-
261181-02C00 BOLT (10X40)BOLT (10X40)
-
308319-31107 NUTNUT
-
452410-02C00-019 ARM, SUSPENSION RIGHT HAND (BLACK)ARM, SUSPENSION RIGHT HAND (BLACK)
-
551236-40B00 BUSHBUSH
-
652420-02C00-019 ARM, SUSPENSION LEFT HAND (BLACK)ARM, SUSPENSION LEFT HAND (BLACK)
-
751236-40B00 BUSH, KINGPINBUSH, KINGPIN
-
809319-10049 BUSH, SUSPENSION ARM PIVOT (10X28.1X28)BUSH, SUSPENSION ARM PIVOT (10X28.1X28)
-
909103-10173 BOLT, SUSPENSION ARM PIVOT (10X80)BOLT, SUSPENSION ARM PIVOT (10X80)
-
1008316-20103 NUTNUT
-
1108351-21008 GREASE NIPPLEGREASE NIPPLE
