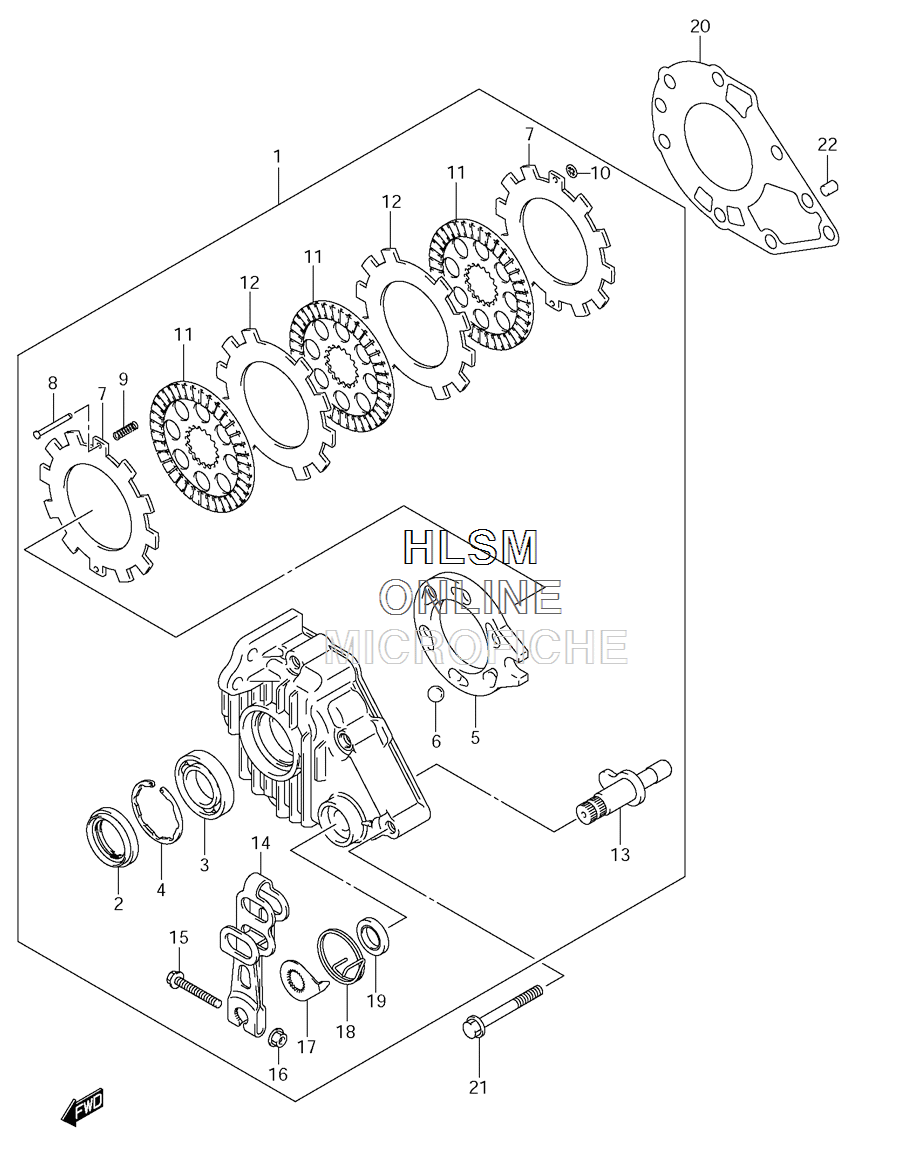

BRAKE - REAR ASSY для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска
-
№АртикулНазвание
-
164200-31G20 BRAKE ASSEMBLY, REARBRAKE ASSEMBLY, REAR
-
209283-34008 ...SEAL, REAR BRAKE CASE...SEAL, REAR BRAKE CASE
-
308113-60050 ...BEARING...BEARING
-
464215-31G00 ...CIRCLIP, REAR BRAKE CASE...CIRCLIP, REAR BRAKE CASE
-
564292-31G00 ...PLATE, PRESSURE...PLATE, PRESSURE
-
664295-31G00 ...BALL...BALL
-
764293-31G00 ...PLATE, SIDE...PLATE, SIDE
-
864297-31G00 ...PIN, SIDE PLATE...PIN, SIDE PLATE
-
964296-31G00 ...SPRING, SIDE PLATE...SPRING, SIDE PLATE
-
1064298-31G00 ...NUT, SIDE PLATE...NUT, SIDE PLATE
-
1164420-31G00 ...PLATE, FRICTION...PLATE, FRICTION
-
1264294-31G00 ...PLATE, SEPARATOR...PLATE, SEPARATOR
-
1364440-31G01 ...CAM, REAR BRAKE...CAM, REAR BRAKE
-
1464451-31G10 ...LEVER, RR BRAKE CAM...LEVER, RR BRAKE CAM
-
1564455-31G00 ...BOLT, RR BRAKE CAM LEVER...BOLT, RR BRAKE CAM LEVER
-
1664456-31G00 ...NUT, RR BRAKE CAM LEVER...NUT, RR BRAKE CAM LEVER
-
1764492-31G00 ...PLATE, BRAKE LINING INDICATOR...PLATE, BRAKE LINING INDICATOR
-
1864484-31G00 ...SPRING, RR BRAKE CAM LEVER...SPRING, RR BRAKE CAM LEVER
-
1964443-31G01 ...SEAL, RR BRAKE CAM...SEAL, RR BRAKE CAM
-
2064124-31G00 GASKET, RR BRAKE CASEGASKET, RR BRAKE CASE
-
2109103-08332 BOLT, RR BRAKE CASEBOLT, RR BRAKE CASE
-
2209261-09002 PIN, RR BRAKE CASE KNOCKPIN, RR BRAKE CASE KNOCK
