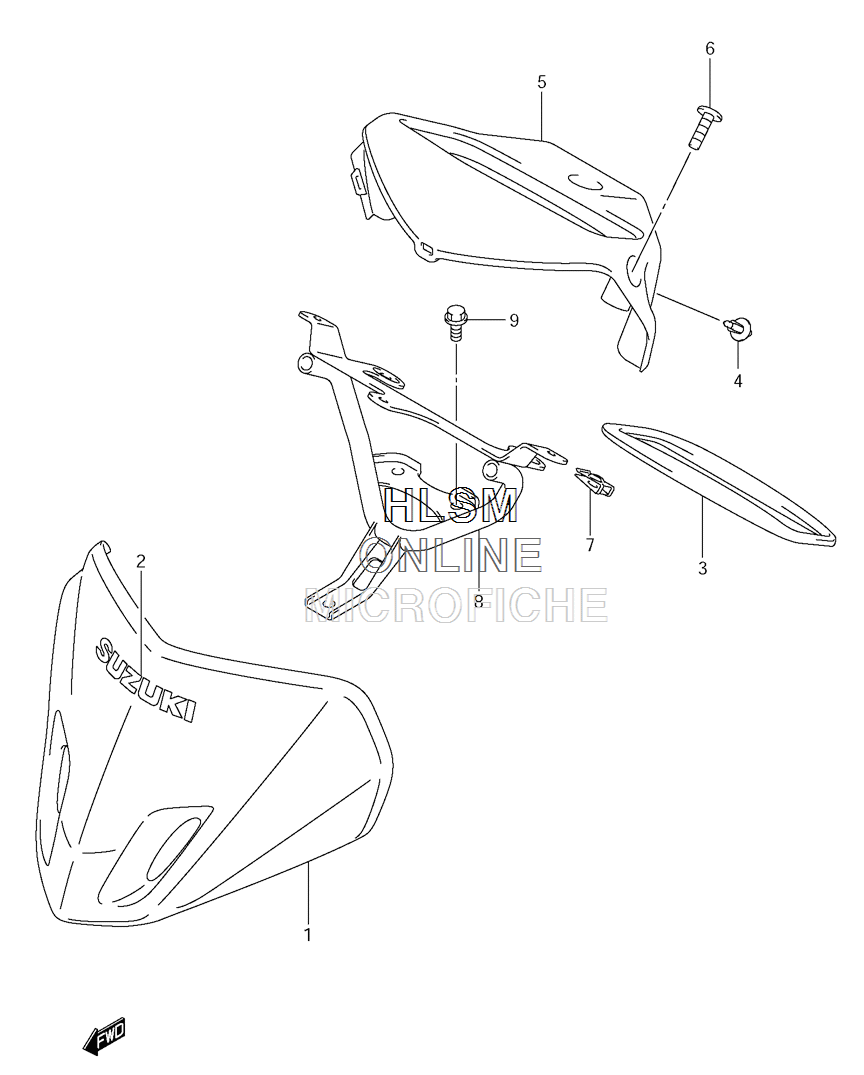

HANDLE COVER для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска
-
№АртикулНазвание
-
156311-11H00-YT9 COVER, FRONT (RED) (YT9)COVER, FRONT (RED) (YT9)
-
156311-11H00-YLZ COVER, FRONT (BLACK) (YLZ)COVER, FRONT (BLACK) (YLZ)
-
156311-11H00-YLG COVER, FRONT (GREEN) (YLG)COVER, FRONT (GREEN) (YLG)
-
156311-11HC0-YKL COVER, FRONT (CAMOUFLAGE) (YKL)COVER, FRONT (CAMOUFLAGE) (YKL)
-
156311-11HC0-YVA COVER, FRONT (CAMOUFLAGE) (YVA)COVER, FRONT (CAMOUFLAGE) (YVA)
-
156311-11H00-30H COVER, FRONT (WHITE) (30H)COVER, FRONT (WHITE) (30H)
-
268171-31G50-YPF EMBLEM (GRAY) (YPF)EMBLEM (GRAY) (YPF)
-
356317-31G00 MOLDINGMOLDING
-
409409-07333 CLIPCLIP
-
556321-11H00-291 COVER, HANDLE REAR (BLACK) (291)COVER, HANDLE REAR (BLACK) (291)
-
603141-0525A SCREWSCREW
-
709148-05038 NUTNUT
-
856160-11H00 BRACE, COVERBRACE, COVER
-
901550-0812A BOLTBOLT
