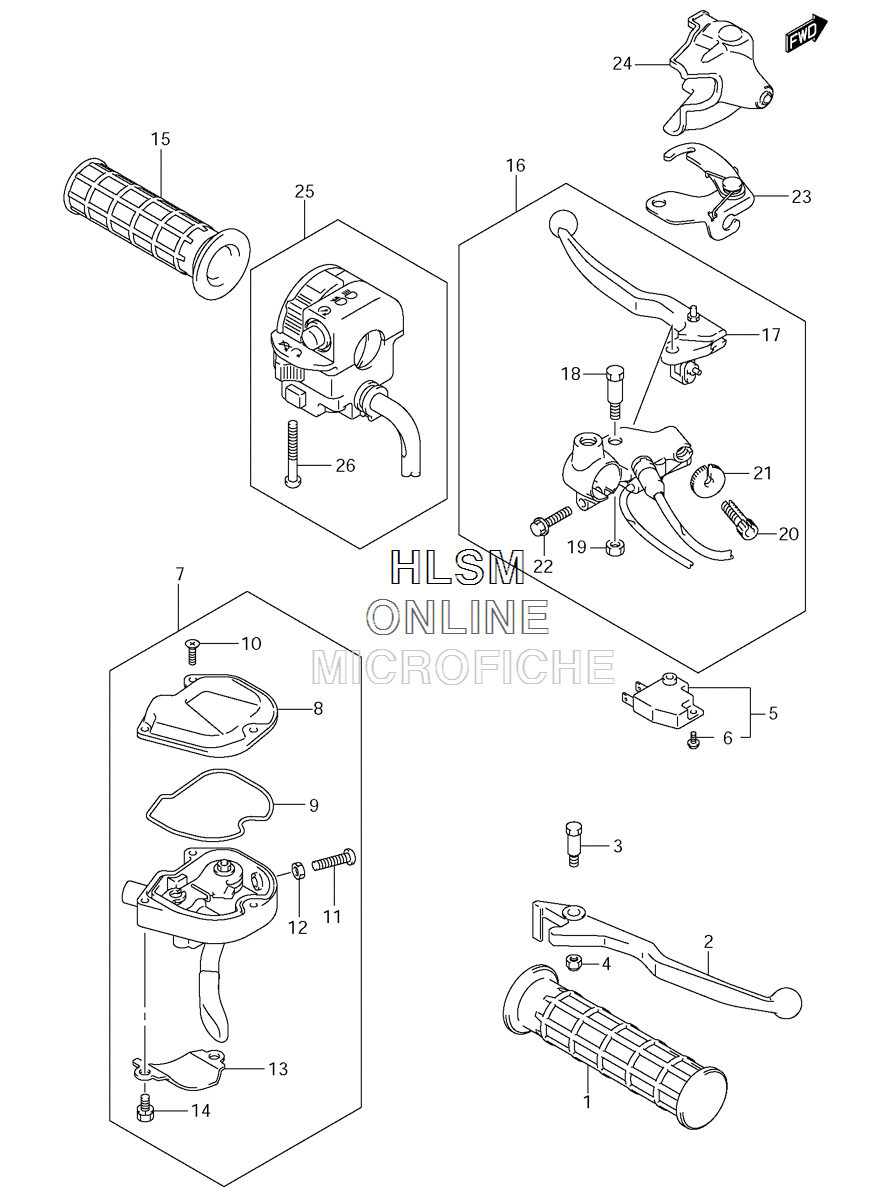

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLT, PIVOTBOLT, PIVOT
-
457433-09F00 NUTNUT
-
557460-17C11 SWITCH ASSEMBLY, STOPSWITCH ASSEMBLY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757100-27H11 CASE ASSEMBLY, THROTTLECASE ASSEMBLY, THROTTLE
-
857121-27H00 ...CAP...CAP
-
957157-27H00 ...GASKET...GASKET
-
1057128-07G00 ...SCREW...SCREW
-
1102112-0520B ...SCREW...SCREW
-
1208310-0005B ...NUT...NUT
-
1357126-07G00 ...HOLDER...HOLDER
-
1457127-07G00 ...BOLT, HOLDER...BOLT, HOLDER
-
1557211-21G10 GRIPGRIP
-
1657500-27H00 LEVER ASSEMBLY, REAR BRAKELEVER ASSEMBLY, REAR BRAKE
-
1757620-27820 ...LEVER...LEVER
-
1857431-09F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1908319-2106B ...NUT...NUT
-
2057441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
2157442-08C00 ...NUT, WIRE...NUT, WIRE
-
2201547-0620B ...BOLT...BOLT
-
2357790-38FA0 STOPPER, BRAKE LEVERSTOPPER, BRAKE LEVER
-
2457541-38FA0 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
2537400-31G00 SWITCH ASSEMBLY, LEFT HANDSWITCH ASSEMBLY, LEFT HAND
-
2602112-0535B ...SCREW...SCREW
