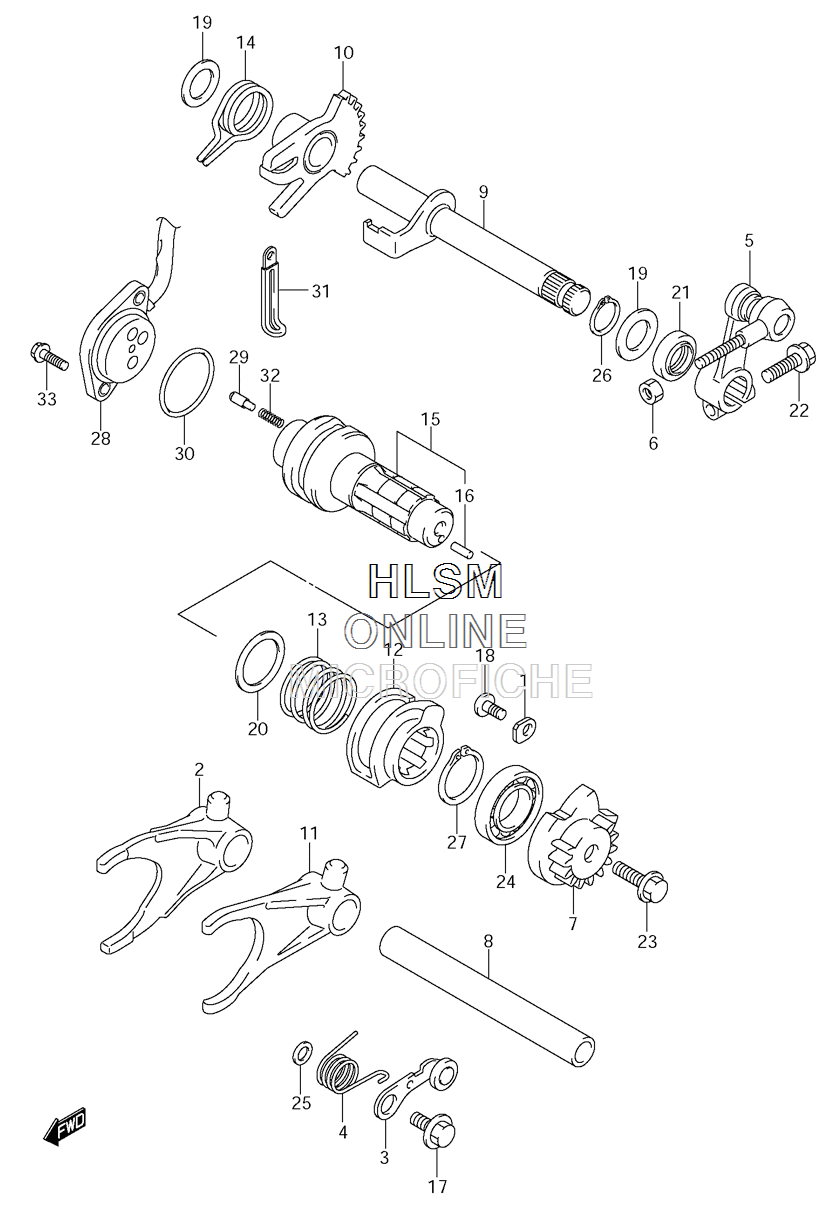

GEAR SHIFTING для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска
-
№АртикулНазвание
-
124741-21A00 RETAINER, SUB T/M SHIFT CAMRETAINER, SUB T/M SHIFT CAM
-
225240-31G00 FORK, REVERSE GEAR SHIFTFORK, REVERSE GEAR SHIFT
-
325350-31G00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
425355-35F01 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
525360-11H00 ARM, SELECTARM, SELECT
-
608310-0006A NUT, GEAR SHIFT LINKNUT, GEAR SHIFT LINK
-
725381-11H00 PLATE, GR SHIFT CAM STOPPERPLATE, GR SHIFT CAM STOPPER
-
825411-38A00 SHAFT, SUB T/M GEAR SHIFTSHAFT, SUB T/M GEAR SHIFT
-
925510-31G00 SHAFT, SUB T/M SHIFT, NO.2SHAFT, SUB T/M SHIFT, NO.2
-
1025540-31G00 GEAR, SUB T/M SHIFTGEAR, SUB T/M SHIFT
-
1129510-31G00 FORK, SUB T/M GEAR SHIFTFORK, SUB T/M GEAR SHIFT
-
1229611-31G00 CAM, SUB T/M GEAR SHIFTCAM, SUB T/M GEAR SHIFT
-
1329612-31G00 SPRING, SUB T/M SHIFT FORKSPRING, SUB T/M SHIFT FORK
-
1429613-31G00 SPRING, SHIFT ARM RETURNSPRING, SHIFT ARM RETURN
-
1529620-31G11 SHAFT, SUB T/M GEAR SHIFTSHAFT, SUB T/M GEAR SHIFT
-
1604221-04089 ...PIN, SUB T/M GEAR SHIFT...PIN, SUB T/M GEAR SHIFT
-
1709111-06041 BOLT, SUB T/M SHIFT CAMBOLT, SUB T/M SHIFT CAM
-
1809125-06110 SCREW, SHIFT RETAINERSCREW, SHIFT RETAINER
-
1909181-14195 WASHER, SUB T/M SHIFT SWASHER, SUB T/M SHIFT S
-
2009181-25139 WASHER, SHIFT CAM SPRINGWASHER, SHIFT CAM SPRING
-
2109283-14006 SEAL, SUB T/M GEAR SHIFTSEAL, SUB T/M GEAR SHIFT
-
2201550-0620B BOLT, GEAR SHIFT LEVERBOLT, GEAR SHIFT LEVER
-
2301550-0630B BOLT, GR SHIFT CAM PLATEBOLT, GR SHIFT CAM PLATE
-
2408110-69040 BEARING, SUB T/M GEAR SHIFTBEARING, SUB T/M GEAR SHIFT
-
2508211-06121 WASHER, SHIFT CAM STOPPERWASHER, SHIFT CAM STOPPER
-
2608331-3114A CIRCLIP, SUB T/M GR SHIFTCIRCLIP, SUB T/M GR SHIFT
-
2708331-3125A CIRCLIP, GEAR SHIFT CAMCIRCLIP, GEAR SHIFT CAM
-
2837720-31G00 BASE ASSEMBLY, GEAR SHIFT TERMBASE ASSEMBLY, GEAR SHIFT TERM
-
2909209-05011 CONTACT, GEAR SHIFT SWCONTACT, GEAR SHIFT SW
-
3009280-35006 O-RING, GEAR SHIFT SWO-RING, GEAR SHIFT SW
-
3109404-06429 CLAMP, GEAR SHIFT SW LEVERCLAMP, GEAR SHIFT SW LEVER
-
3209440-04010 SPRING, GEAR SHIFT SWSPRING, GEAR SHIFT SW
-
3307120-0516A BOLT, GEAR SHIFT SWBOLT, GEAR SHIFT SW
