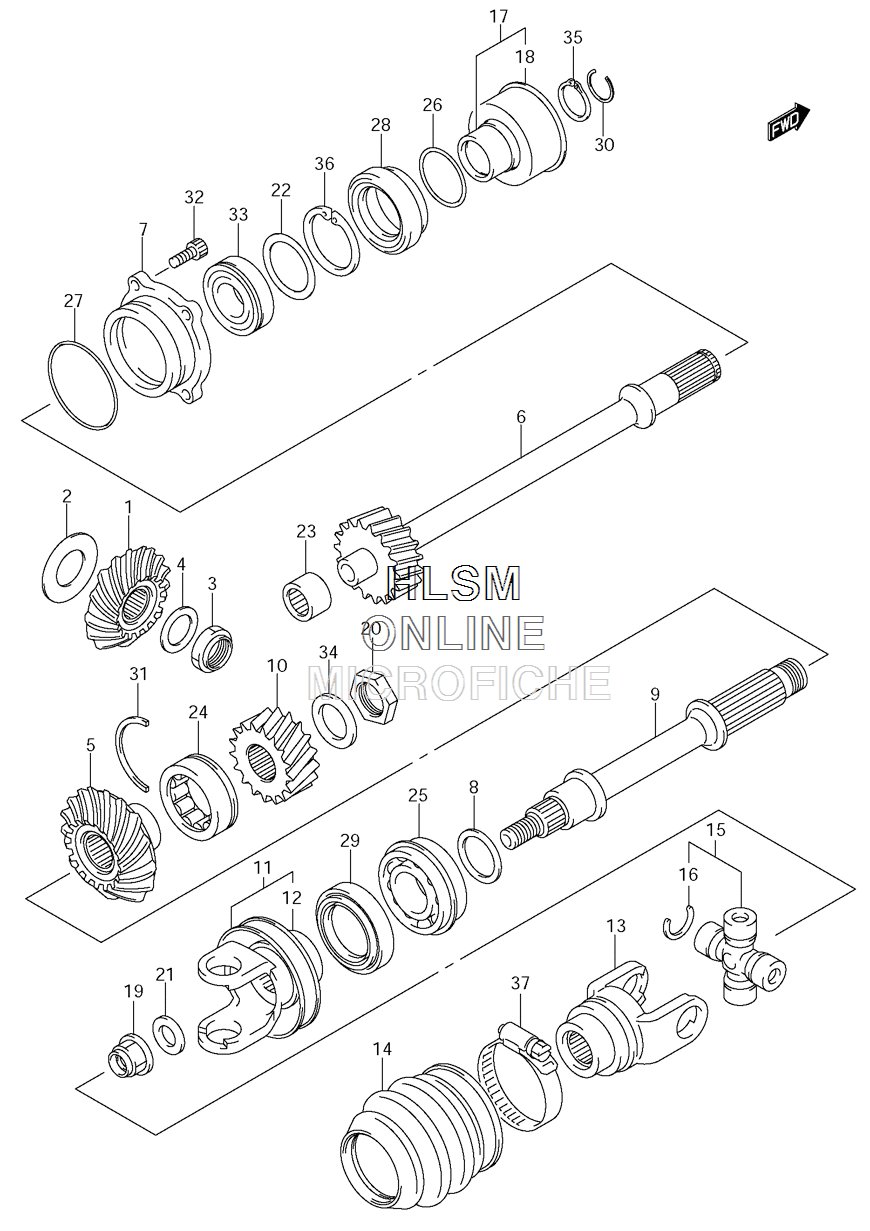

DRIVESHAFT - REAR для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска
-
№АртикулНазвание
-
124911-11H00 GEAR, SEC DRIVE BEVELGEAR, SEC DRIVE BEVEL
-
224935-03811 SHIM SET, SEC DRIVE BEVELSHIM SET, SEC DRIVE BEVEL
-
309140-20012 NUT, SEC DRIVE BEVELNUT, SEC DRIVE BEVEL
-
409181-20223 WASHER, SEC DRIVE BEVELWASHER, SEC DRIVE BEVEL
-
524921-11H00 GEAR, SEC DRIVEN BEVELGEAR, SEC DRIVEN BEVEL
-
624961-31H00 SHAFT, SEC OUTPUT, FRSHAFT, SEC OUTPUT, FR
-
724965-31G00 HOUSING, FR OUTPUT SHAFTHOUSING, FR OUTPUT SHAFT
-
824945-03811 SHIM SET, SEC DRIVEN BEVELSHIM SET, SEC DRIVEN BEVEL
-
924971-11H00 SHAFT, SEC OUTPUT, REARSHAFT, SEC OUTPUT, REAR
-
1024972-31G20 GEAR, SEC DRIVEN OUTPUTGEAR, SEC DRIVEN OUTPUT
-
1127130-31G10 YOKE, RR DRIVE OUTYOKE, RR DRIVE OUT
-
1227592-31G30 ...FLANGE, OUTPUT YOKE...FLANGE, OUTPUT YOKE
-
1327141-31G00 YOKE, PROP SHAFTYOKE, PROP SHAFT
-
1427153-31G00 BOOT, REAR OUTPUT JOINTBOOT, REAR OUTPUT JOINT
-
1527200-73813 JOINT SET, UNIVERSALJOINT SET, UNIVERSAL
-
1609380-25005 ...CIRCLIP, UNIVERSAL JOINT...CIRCLIP, UNIVERSAL JOINT
-
1727590-31G00 COLLAR, FRONT DRIVECOLLAR, FRONT DRIVE
-
1827592-31G00 ...PLATE, OUTPUT OIL SEAL...PLATE, OUTPUT OIL SEAL
-
1909159-16003 NUT, RR DRIVE OUTPUT YOKENUT, RR DRIVE OUTPUT YOKE
-
2009159-22005 NUT, SEC DRIVEN OUTPUTNUT, SEC DRIVEN OUTPUT
-
2109160-16026 WASHER, RR DRIVE OUTPUTWASHER, RR DRIVE OUTPUT
-
2209181-40195 WASHER, FR DRIVE OUTPUTWASHER, FR DRIVE OUTPUT
-
2309263-25068 BEARING, FRONT OUTPUT, RRBEARING, FRONT OUTPUT, RR
-
2409263-30050 BEARING, SEC DRIVEN GEARBEARING, SEC DRIVEN GEAR
-
2509267-25014 BEARING, REAR OUTPUTBEARING, REAR OUTPUT
-
2609280-25005 O-RING, FR DRIVE OUTPUTO-RING, FR DRIVE OUTPUT
-
2709280-57002 O-RING, FRONT BRG HOUSINGO-RING, FRONT BRG HOUSING
-
2809283-34008 SEAL, FRONT OUTPUT SHAFTSEAL, FRONT OUTPUT SHAFT
-
2909283-34008 SEAL, REAR OUTPUT SHAFTSEAL, REAR OUTPUT SHAFT
-
3009381-21002 C-RING, SEC DRIVEN OUTPUTC-RING, SEC DRIVEN OUTPUT
-
3109390-50002 RING, SEC DRIVEN GEARRING, SEC DRIVEN GEAR
-
3207130-0620B BOLT, FRONT BRG HOUSINGBOLT, FRONT BRG HOUSING
-
3309262-25003 BEARING, FRONT OUTPUT, FRBEARING, FRONT OUTPUT, FR
-
3408211-22365 WASHER, OUTPUT SHAFT GEARWASHER, OUTPUT SHAFT GEAR
-
3508331-3125A CIRCLIP, FR DRIVE OUTPUTCIRCLIP, FR DRIVE OUTPUT
-
3608331-4152A CIRCLIP, FR OUTPUT SHAFTCIRCLIP, FR OUTPUT SHAFT
-
3709402-00512 CLAMPCLAMP
