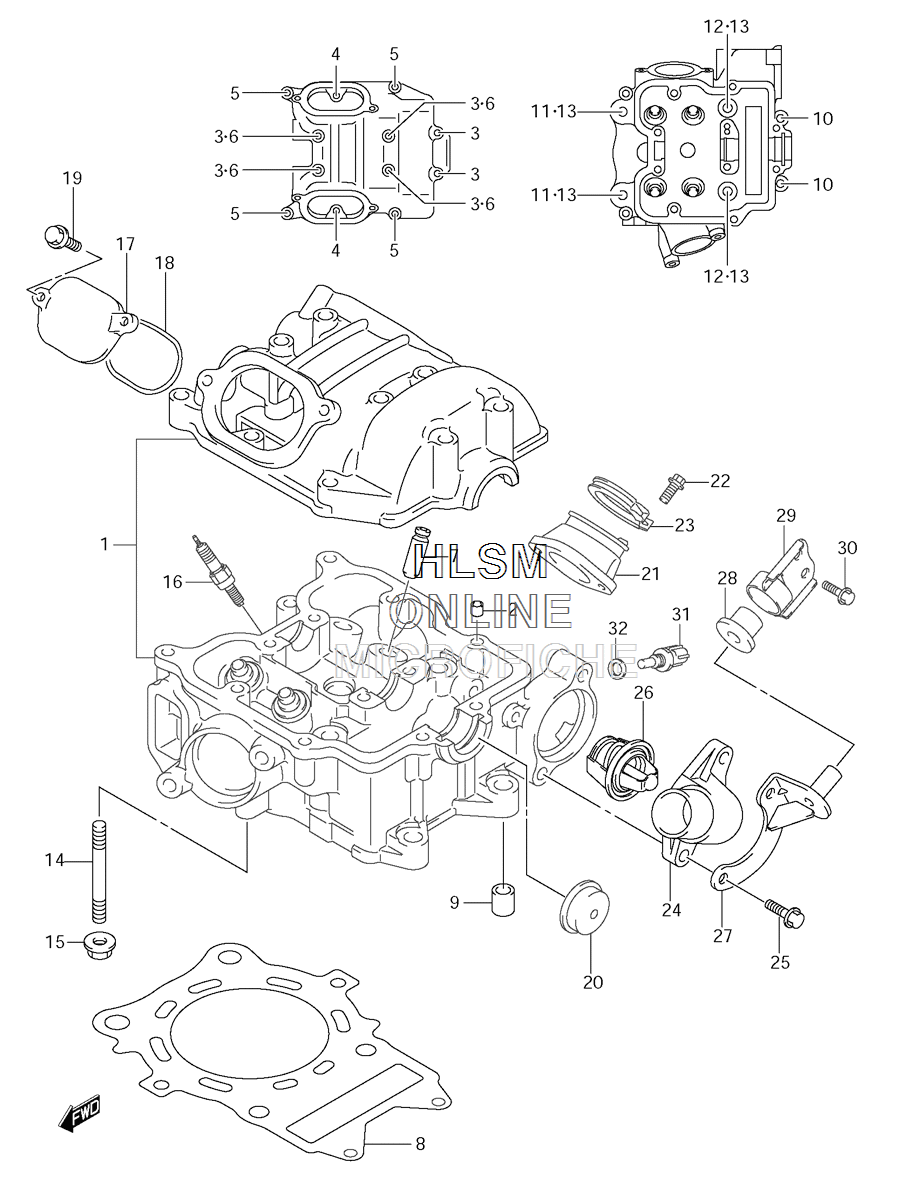

CYLINDER HEAD для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
111100-11H00 HEAD ASSEMBLY, CYLINDERHEAD ASSEMBLY, CYLINDER
-
209206-08001 ...PIN...PIN
-
309103-06064 ...BOLT (6X60)...BOLT (6X60)
-
401550-0625B ...BOLT...BOLT
-
501550-0635B ...BOLT...BOLT
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
711115-14D71 GUIDE, VALVE (OS 0.3) (OPTIONAL)GUIDE, VALVE (OS 0.3) (OPTIONAL)
-
811141-31H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1009103-08212 BOLT (8X135)BOLT (8X135)
-
1109103-10179 BOLT (10X190)BOLT (10X190)
-
1209103-10180 BOLT (10X200)BOLT (10X200)
-
1309168-10031 GASKETGASKET
-
1401421-0850B STUD BOLTSTUD BOLT
-
1508316-1008B NUTNUT
-
1609482-00528 SPARK PLUG (NGK,CR6E)SPARK PLUG (NGK,CR6E)
-
1609482-00529 SPARK PLUG (DENSO,U20ESR-N)SPARK PLUG (DENSO,U20ESR-N)
-
1609482-00590 SPARK PLUG (NGK,CR6EIA-9) (OPTIONAL)SPARK PLUG (NGK,CR6EIA-9) (OPTIONAL)
-
1609482-00516 SPARK PLUG (NGK,CR7E) (OPTIONAL)SPARK PLUG (NGK,CR7E) (OPTIONAL)
-
1609482-00515 SPARK PLUG (DENSO,U22ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U22ESR-N) (OPTIONAL)
-
1609482-00456 SPARK PLUG (NGK,CR8E) (OPTIONAL)SPARK PLUG (NGK,CR8E) (OPTIONAL)
-
1609482-00457 SPARK PLUG (DENSO,U24ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U24ESR-N) (OPTIONAL)
-
1711175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1811177-14D01 O RINGO RING
-
1901550-0620B BOLTBOLT
-
2009241-25007 PLUG, HEADPLUG, HEAD
-
2113101-31H00 PIPE, INTAKEPIPE, INTAKE
-
2209106-06105 BOLTBOLT
-
2309402-56901 CLAMPCLAMP
-
2417661-31G00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2507130-0825B BOLTBOLT
-
2617670-06G60 THERMOSTATTHERMOSTAT
-
2711653-11H01 PLATE, ENG MTG DAMPERPLATE, ENG MTG DAMPER
-
2811654-31G00 DAMPER, ENG MTGDAMPER, ENG MTG
-
2911655-31G01 STOPPER, ENG MTGSTOPPER, ENG MTG
-
3001550-0812B BOLTBOLT
-
3113650-10G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3209168-12017 GASKETGASKET
