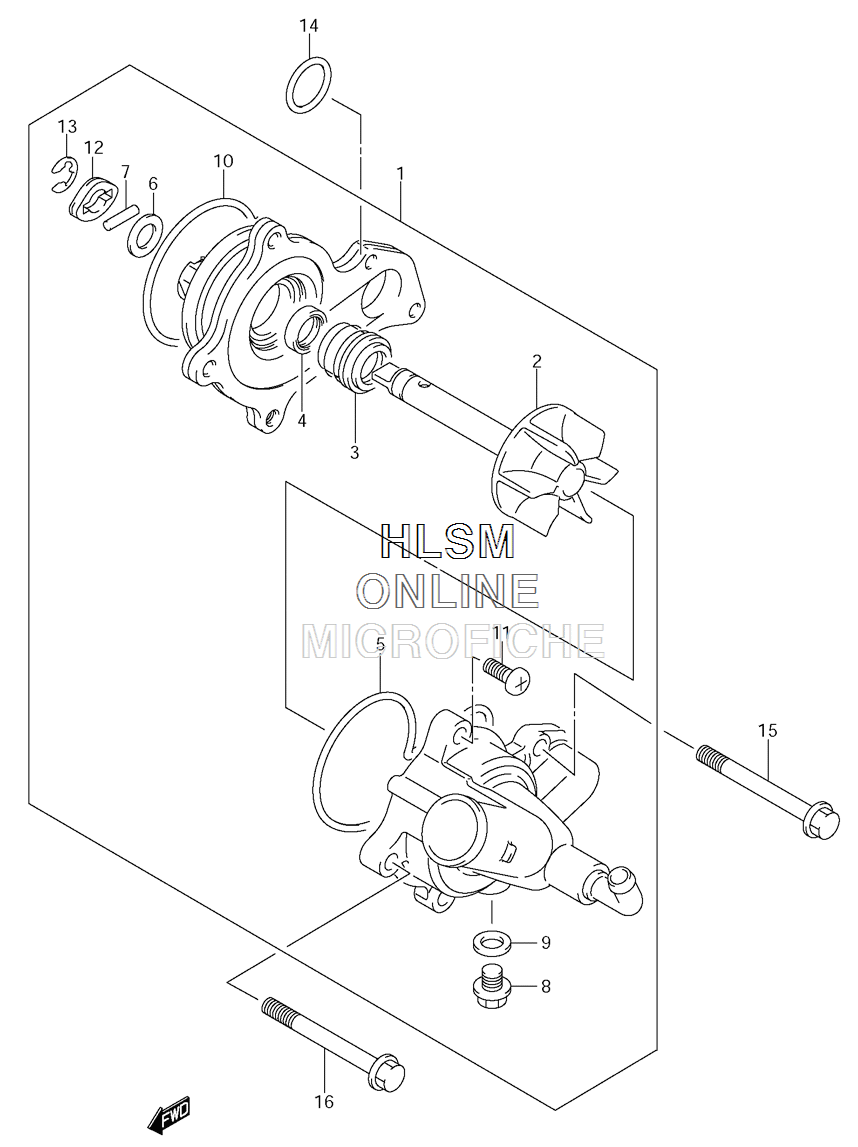

WATER PUMP для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
117400-11H10 PUMP ASSEMBLY, WATERPUMP ASSEMBLY, WATER
-
217491-11H00 ...IMPELLER...IMPELLER
-
317470-02F01 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
417461-48G00 ...OIL SEAL...OIL SEAL
-
517418-11H00 ...O RING...O RING
-
617432-07G00 ...WASHER...WASHER
-
717482-03G00 ...PIN...PIN
-
817415-20920 ...BOLT...BOLT
-
909168-08016 ...WASHER...WASHER
-
1017435-33400 ...O RING...O RING
-
1102112-0616A ...SCREW...SCREW
-
1217432-11H00 ...CAP...CAP
-
1308332-1108A ...E RING...E RING
-
1409280-22001 O-RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)O-RING (DIAMETER: 2.4,INSIDE DIAMETER: 21.8)
-
1501547-0630B BOLTBOLT
-
1601547-0645B BOLTBOLT
