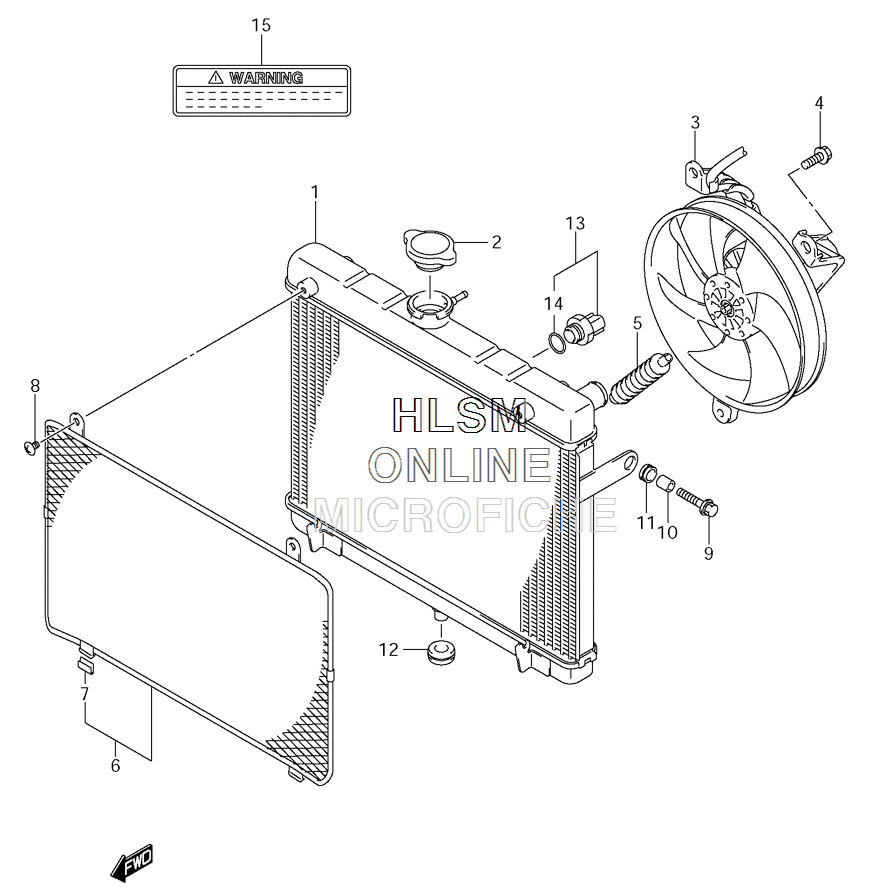

RADIATOR для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
117710-31G20 RADIATOR ASSEMBLYRADIATOR ASSEMBLY
-
217730-14G00 CAP ASSEMBLY, RADIATORCAP ASSEMBLY, RADIATOR
-
317800-31G10 FAN ASSEMBLY, RADIATORFAN ASSEMBLY, RADIATOR
-
401550-0610B BOLTBOLT
-
517820-07G10 BOOT, RADIATOR FAN MOTORBOOT, RADIATOR FAN MOTOR
-
617760-09F00 COVER, RADIATORCOVER, RADIATOR
-
717765-09F00 ...PROTECTOR...PROTECTOR
-
802142-0608B SCREWSCREW
-
909118-06097 BOLT, 6X25BOLT, 6X25
-
1009180-06290 SPACER, 6.5X10X12SPACER, 6.5X10X12
-
1109320-10042 CUSHIONCUSHION
-
1209320-12036 CUSHION, LOWERCUSHION, LOWER
-
1317680-50F00 SWITCH, RADIATOR FANSWITCH, RADIATOR FAN
-
1417689-50F00 ...O RING...O RING
-
1517991-02F40 LABEL, COOLING FAN (FOR CANADA ONLY)LABEL, COOLING FAN (FOR CANADA ONLY)
-
1517991-02F01 LABEL, COOLING FAN (FOR CALF. ONLY)LABEL, COOLING FAN (FOR CALF. ONLY)
