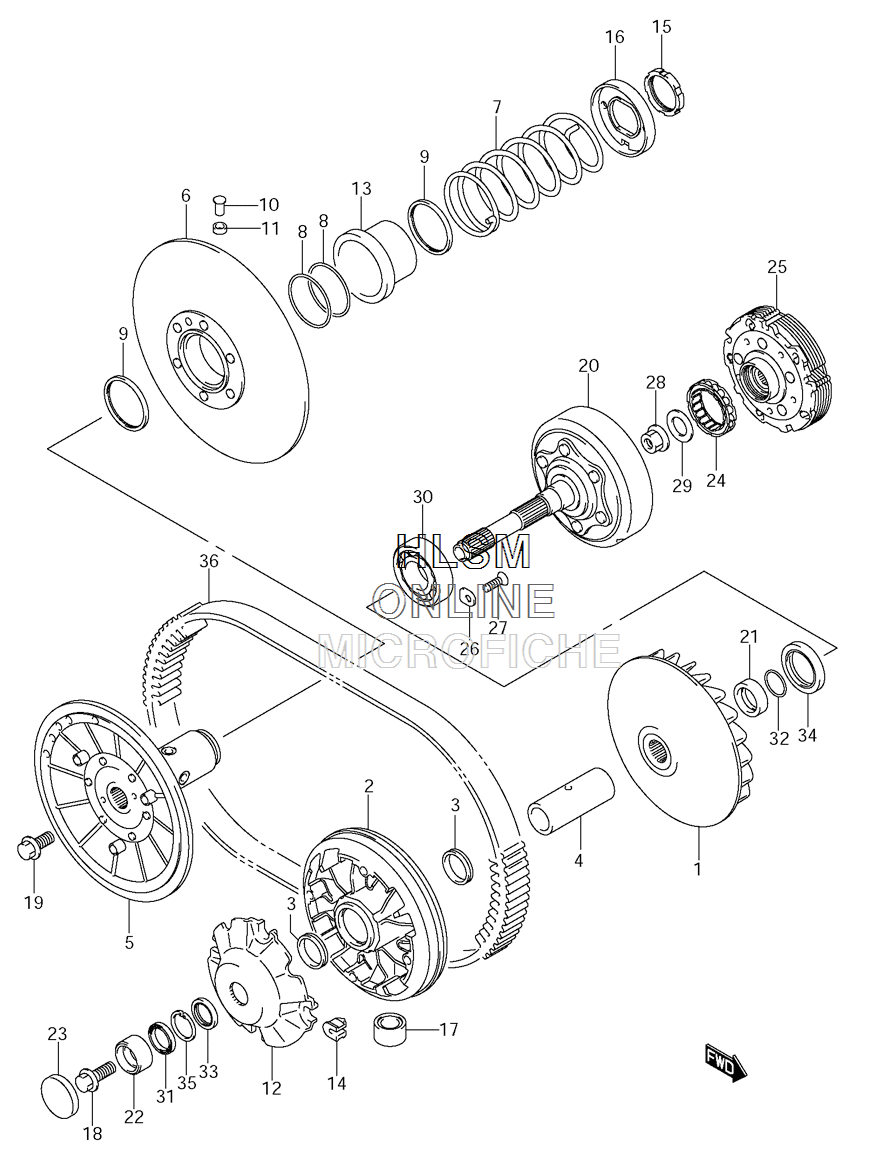

TRANSMISSION (1) для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска
-
№АртикулНазвание
-
121110-11H00 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221120-11H00 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
321124-15F00 SEAL, MOVABLE DRIVE FACESEAL, MOVABLE DRIVE FACE
-
421125-11H50 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521210-11H00 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
621240-11H00 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
721243-38F01 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
821245-38F00 O-RING, MOVABLE DRIVENO-RING, MOVABLE DRIVEN
-
921247-38F00 SEAL, MOVABLE DRIVENSEAL, MOVABLE DRIVEN
-
1021248-15F01 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-15F00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221431-11H00 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1321471-38F01 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1421481-14F00 DAMPER, MOVABLE DRIVEDAMPER, MOVABLE DRIVE
-
1521518-38F00 NUT, DRIVEN PULLEY SPRINGNUT, DRIVEN PULLEY SPRING
-
1621519-38F00 HOLDER, MOVABLE DRIVENHOLDER, MOVABLE DRIVEN
-
1721650-31G00 ROLLER, MOVABLE DRIVENROLLER, MOVABLE DRIVEN
-
1809103-12028 BOLT, DRIVE FACE (12X30)BOLT, DRIVE FACE (12X30)
-
1909103-12049 BOLT, DRIVEN FACE (12X25)BOLT, DRIVEN FACE (12X25)
-
2021100-11H00 HOUSING, CLUTCHHOUSING, CLUTCH
-
2121102-31G00 SPACER, PRIMARY SHAFTSPACER, PRIMARY SHAFT
-
2221106-31G10 SPACER, CLUTCH HOUSINGSPACER, CLUTCH HOUSING
-
2321107-31G00 CAP, V-BELT BEARINGCAP, V-BELT BEARING
-
2421273-44D00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
2521500-11H10 CLUTCH ASSEMBLY, SHOECLUTCH ASSEMBLY, SHOE
-
2624741-20A00 RETAINER, CL HSG BRGRETAINER, CL HSG BRG
-
2709126-06011 SCREW, RETAINER (6X12)SCREW, RETAINER (6X12)
-
2809159-18023 NUT, SHOE CLUTCHNUT, SHOE CLUTCH
-
2909164-18004 WASHER, SHOE CLUTCHWASHER, SHOE CLUTCH
-
3009262-25073 BEARING, CLUTCH HOUSING, LEFTBEARING, CLUTCH HOUSING, LEFT
-
3109262-35075 BEARING, CLUTCH HOUSING, FRBEARING, CLUTCH HOUSING, FR
-
3209280-25004 O-RING, PRIMARY SHAFTO-RING, PRIMARY SHAFT
-
3309283-35051 SEAL, CLUTCH HSG OIL, FRSEAL, CLUTCH HSG OIL, FR
-
3409283-38025 SEAL, CLUTCH HOUSING SPSEAL, CLUTCH HOUSING SP
-
3508331-41479 CIRCLIP, CLUTCH HOUSINGCIRCLIP, CLUTCH HOUSING
-
3627601-11H00 V-BELT, DRIVEV-BELT, DRIVE
