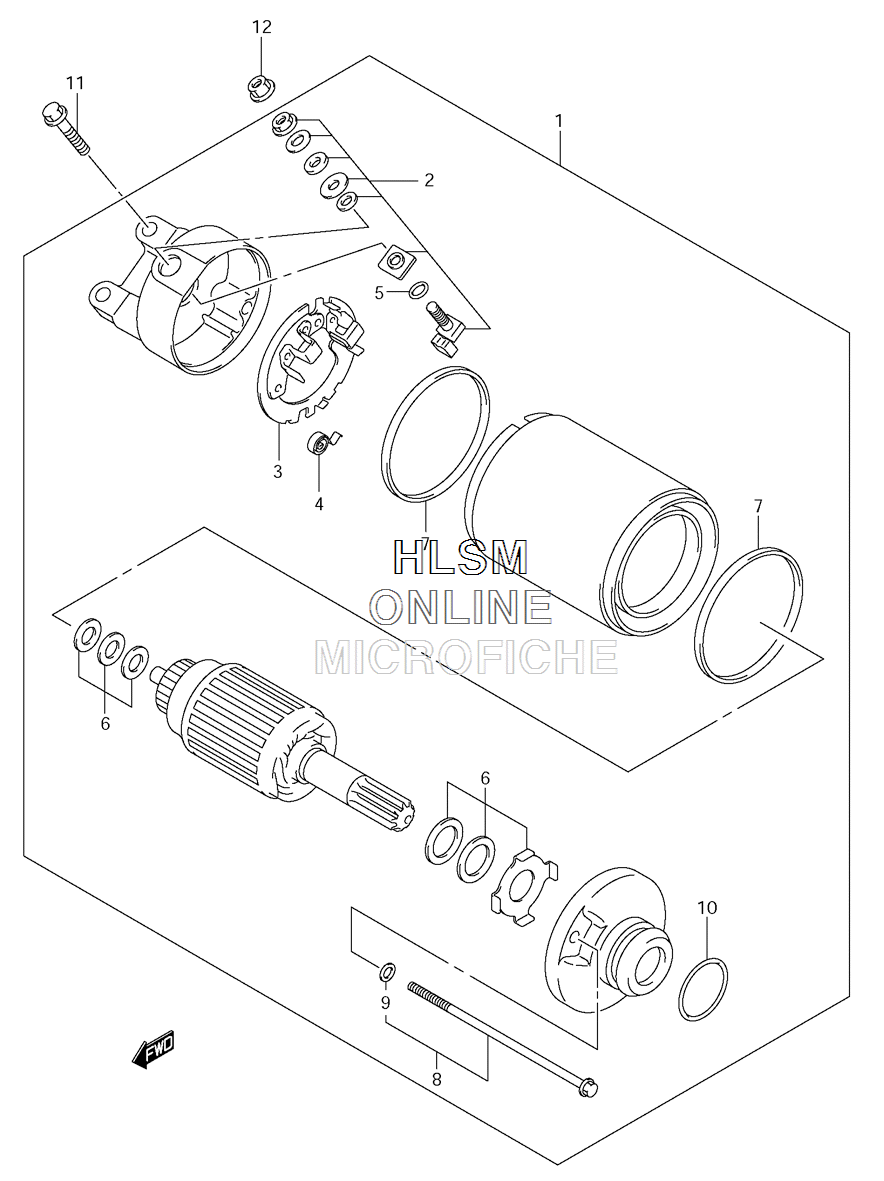

STARTING MOTOR для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска

№

Артикул

Название
1

31100-11H00 MOTOR ASSEMBLY, STARTING

MOTOR ASSEMBLY, STARTING

85 960 ₽
2

31130-13E00 ...TERMINAL SET, BRUSH

...TERMINAL SET, BRUSH

8 020 ₽
3

31132-13E00 ...HOLDER SET, BRUSH

...HOLDER SET, BRUSH

10 300 ₽
4

31135-31300 ...SPRING, BRUSH

...SPRING, BRUSH

890 ₽
5

31143-49040 ...O RING

...O RING

650 ₽
6

31170-19B10 ...WASHER SET

...WASHER SET

1 870 ₽
7

31264-13E00 ...O RING

...O RING

1 200 ₽
8

31280-19F00 ...SET BOLT

...SET BOLT

2 930 ₽
9

31156-13E00 ......O RING

......O RING

650 ₽
10

09280-24003 ...O RING (DIAMETER: 3,INSIDE DIAMETER: 24.5)

...O RING (DIAMETER: 3,INSIDE DIAMETER: 24.5)

270 ₽
11

09103-06212 BOLT, STARTING MOTOR

BOLT, STARTING MOTOR

410 ₽
12

08361-3506A NUT, STARTING MOTOR

NUT, STARTING MOTOR

310 ₽
