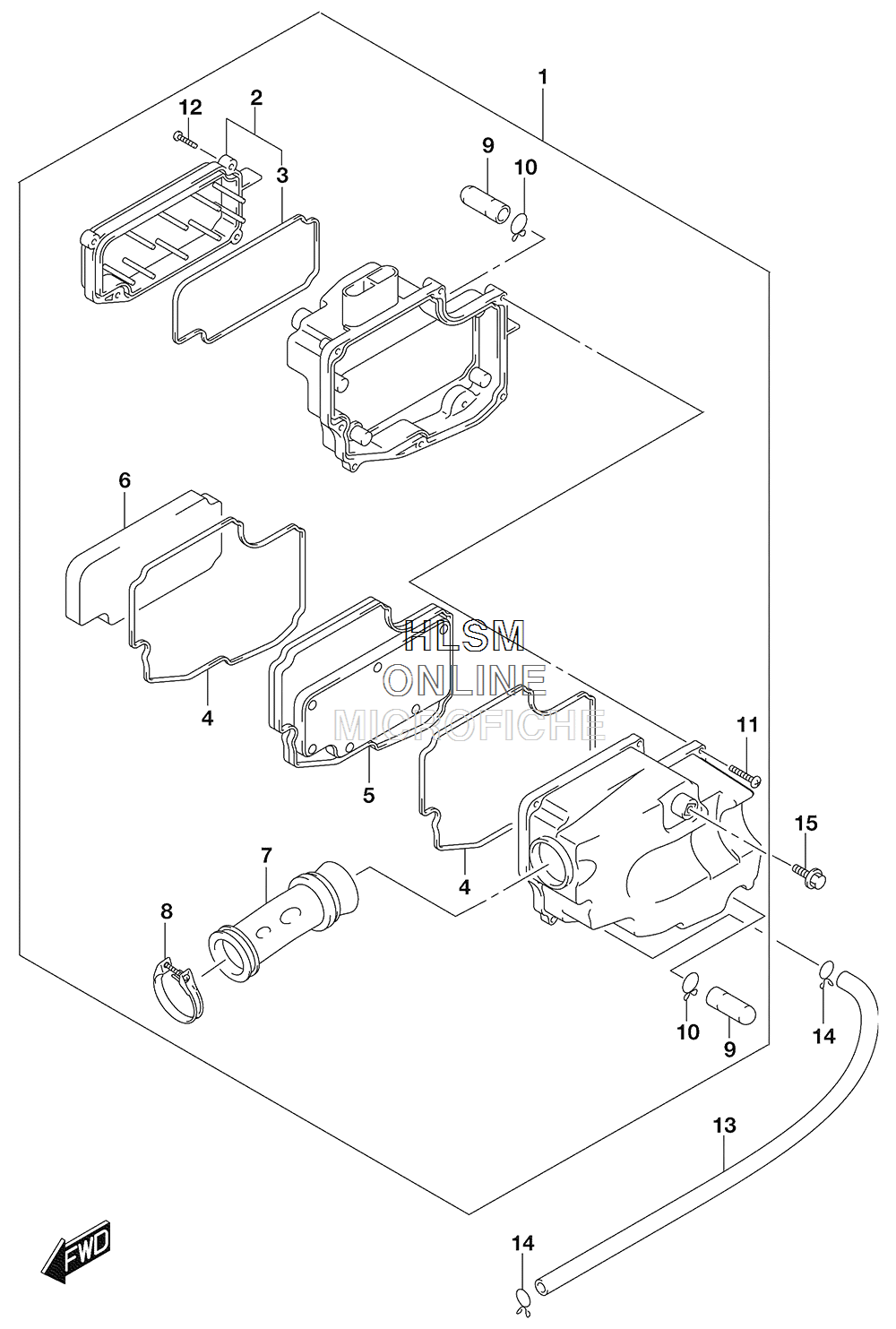

AIR CLEANER для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
113700-08H00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-08H00 CAPCAP
-
313746-08H00 GASKETGASKET
-
413756-08H00 GASKETGASKET
-
513723-08H00 CASE, SEPARETERCASE, SEPARETER
-
613781-08H00 FILTERFILTER
-
713881-08H00 TUBE, OUTLETTUBE, OUTLET
-
809402-42208 CLAMPCLAMP
-
913871-08H00 PLUG, DRAINPLUG, DRAIN
-
1009401-14301 CLIPCLIP
-
1103541-0420A SCREWSCREW
-
1203541-0520A SCREWSCREW
-
1313853-08H00 HOSE, BREATHERHOSE, BREATHER
-
1409401-14301 CLIPCLIP
-
1501550-0612B BOLTBOLT
