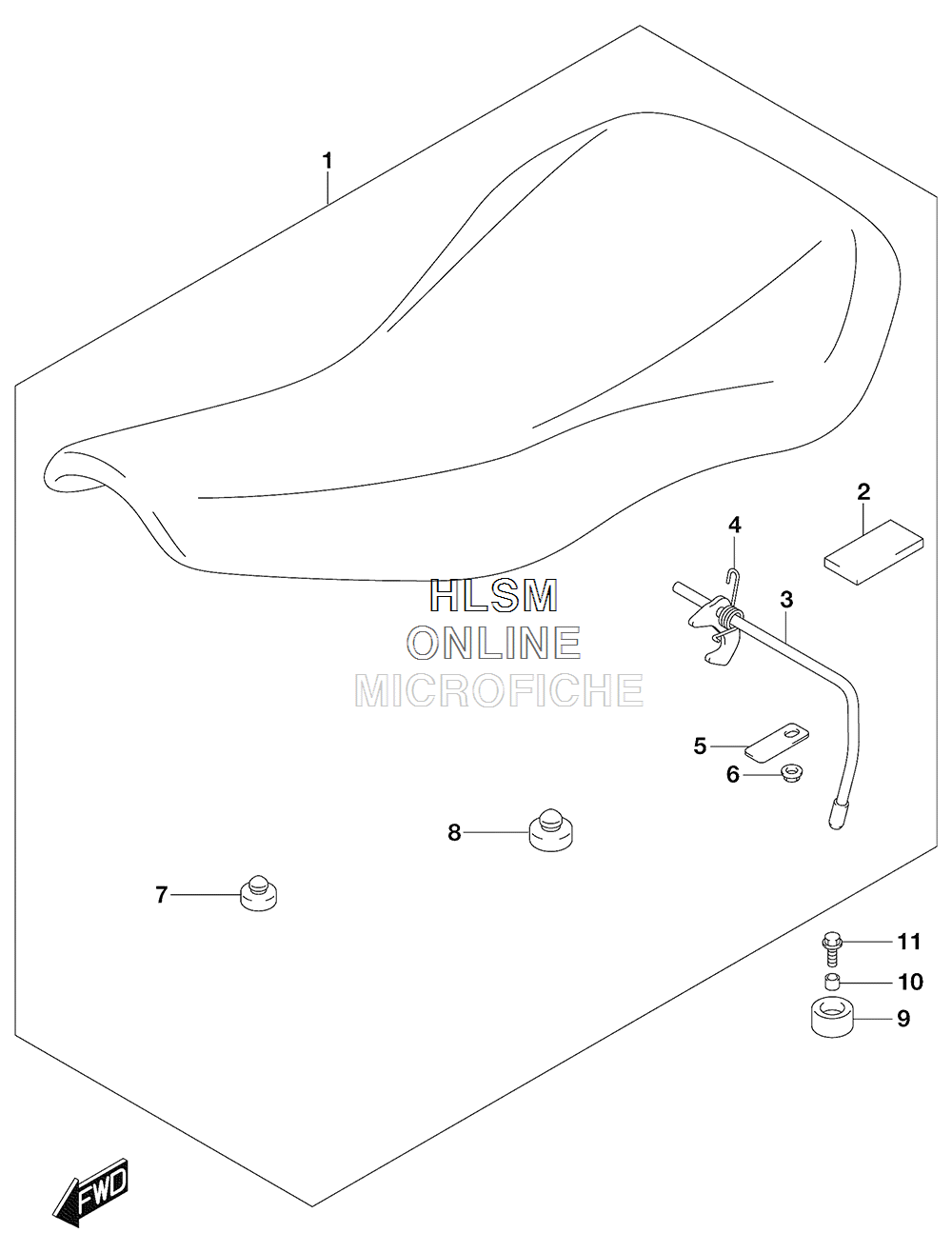

SEAT (P28) для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
145100-08H10-U4W SEAT ASSY (BLUE)SEAT ASSY (BLUE)
-
245149-08H00 CUSHION, SEAT MOUNT BOSSCUSHION, SEAT MOUNT BOSS
-
345210-08H00 CLAMP, SEAT LOCKCLAMP, SEAT LOCK
-
445135-43F00 SPRING, SEAT LOCKSPRING, SEAT LOCK
-
545222-43G00 PLATE, SEAT LOCK RIGHT HANDPLATE, SEAT LOCK RIGHT HAND
-
608316-1006B NUTNUT
-
709321-10012 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
845148-08H00 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
945141-08H00 CUSHIONCUSHION
-
1009180-06261 SPACERSPACER
-
1101550-0616B BOLTBOLT
