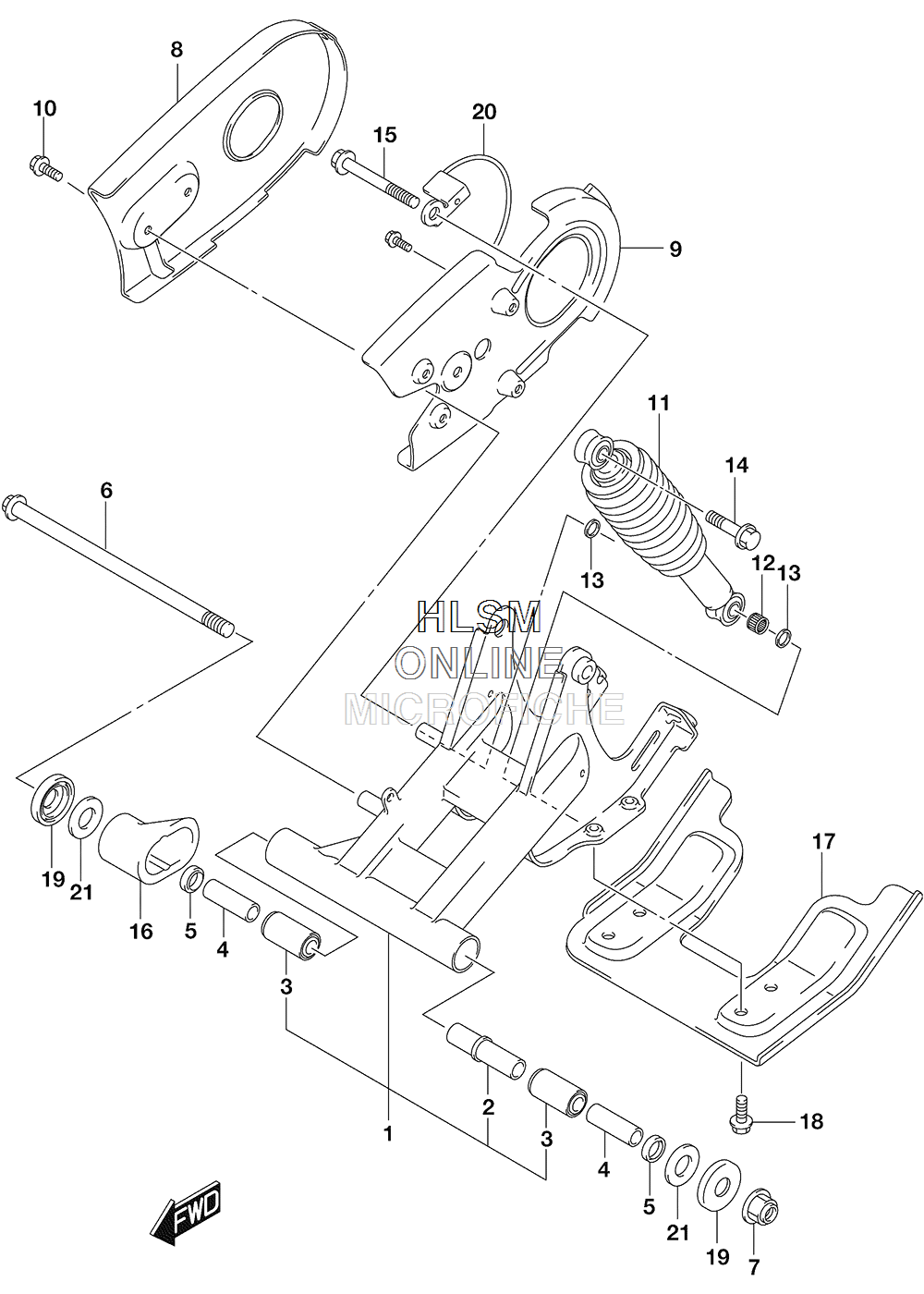

REAR SWINGARM для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
161000-08H00-019 SWINGINGARM ASSY, REAR (BLACK)SWINGINGARM ASSY, REAR (BLACK)
-
261280-43G00 SPACERSPACER
-
361261-08H00 BUSHBUSH
-
461251-08H00 SPACERSPACER
-
561262-08H00 SEALSEAL
-
661211-08H00 SHAFT, PIVOTSHAFT, PIVOT
-
708319-3112A NUTNUT
-
861311-08H00 CASE, CHAINCASE, CHAIN
-
961313-08H00 CASE, CHAIN INNER UPPERCASE, CHAIN INNER UPPER
-
1009111-06066 BOLT (6X16)BOLT (6X16)
-
1162100-08H00-YKS ABSORBER ASSY, RR SHOCK (RED)ABSORBER ASSY, RR SHOCK (RED)
-
1209263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
1309284-16005 SEAL, OIL (16X22X2.5)SEAL, OIL (16X22X2.5)
-
1409103-10049 BOLT, UPPER (10X44) (UPPER)BOLT, UPPER (10X44) (UPPER)
-
1509103-12097 BOLT, LOWER (12X105) (LOWER)BOLT, LOWER (12X105) (LOWER)
-
1661273-08H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1761391-08H00 GUARD, SWINGINGARM UNDERGUARD, SWINGINGARM UNDER
-
1809106-08179 BOLT, GUARD (8X17.5)BOLT, GUARD (8X17.5)
-
1961262-21D00 COVERCOVER
-
2061340-08H00 GUIDE, CHAINGUIDE, CHAIN
-
2109181-12010 WASHER, PIVOT THRUSTWASHER, PIVOT THRUST
