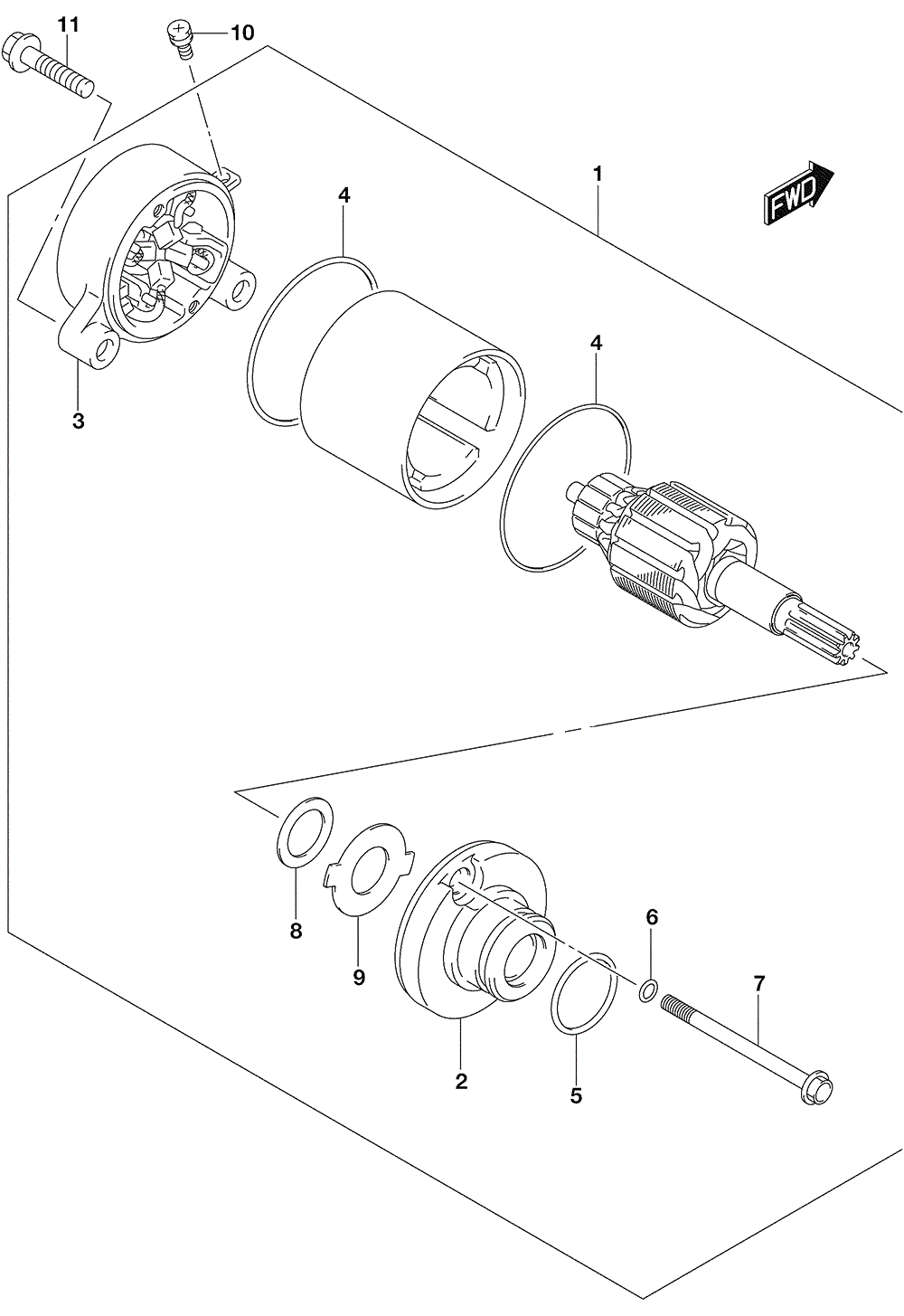

STARTING MOTOR для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
131100-33G01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231150-33G00 BRACKETBRACKET
-
331175-33G01 FRAME ASSY, COMMUTATOR ENDFRAME ASSY, COMMUTATOR END
-
431264-05530 O RINGO RING
-
509280-24003 O RING (DD:3,ID:24.5)O RING (DD:3,ID:24.5)
-
631156-05530 O RINGO RING
-
731281-33G00 BOLTBOLT
-
831361-055A0 SHIMSHIM
-
931361-055B0 PLATE, LOCKPLATE, LOCK
-
1009137-05004 SCREW (5X8)SCREW (5X8)
-
1101547-0625B BOLTBOLT
