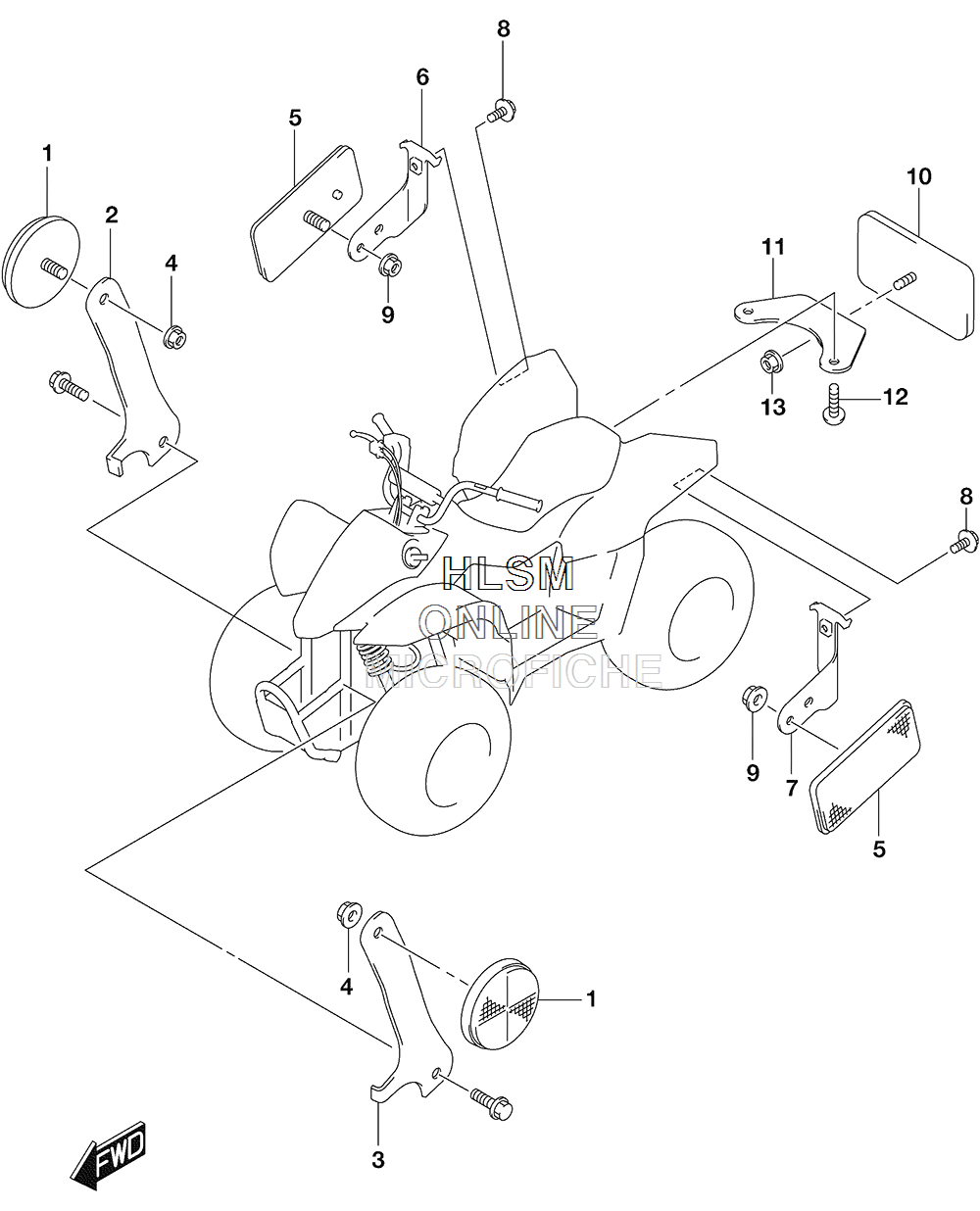

REFLECTOR (P28) для Suzuki LT-Z90L5 QUADSPORT Z90 - 2015 года выпуска
-
№АртикулНазвание
-
135950-14A11 REFLEX REFLECTOR, FR SIDEREFLEX REFLECTOR, FR SIDE
-
235956-08H00 BRACKET, FRONT SIDE RR, RBRACKET, FRONT SIDE RR, R
-
335957-08H00 BRACKET, FRONT SIDE RR, LBRACKET, FRONT SIDE RR, L
-
408316-1005A NUT, FRONT SIDE RRNUT, FRONT SIDE RR
-
535970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
635975-08H00 BRACKET, REAR SIDE, RBRACKET, REAR SIDE, R
-
735976-08H00 BRACKET, REAR SIDE, LBRACKET, REAR SIDE, L
-
809111-06088 BOLT, REAR SIDE (6X13.5)BOLT, REAR SIDE (6X13.5)
-
908316-1005B NUT, RAR SIDENUT, RAR SIDE
-
1035970-07F01 REFLECTOR, REARREFLECTOR, REAR
-
1135974-08H00 BRACKET, REAR RRBRACKET, REAR RR
-
1203541-0516A SCREW, REAR BRACKETSCREW, REAR BRACKET
-
1308316-1005B NUT, REAR RRNUT, REAR RR
