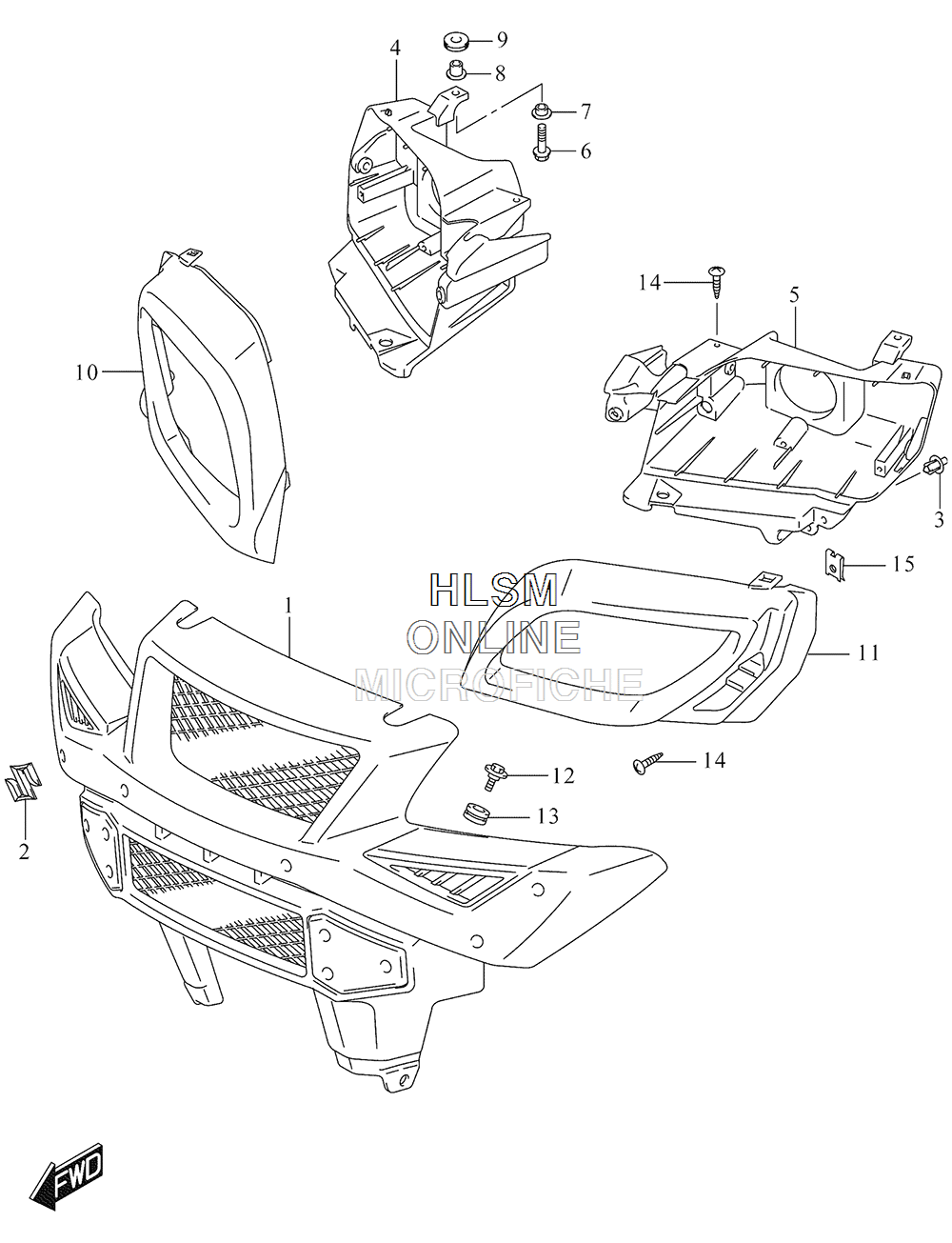

FRONT GRILLE (P33) для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
153118-31GA0-291 GRILLE, FRONT (BLACK)GRILLE, FRONT (BLACK)
-
268151-03G40 EMBLEM, ''S''EMBLEM, ''S''
-
309409-08335 CLIPCLIP
-
453281-31G01-291 HOUSING, FRONT RIGHT HAND (BLACK)HOUSING, FRONT RIGHT HAND (BLACK)
-
553284-31G01-291 HOUSING, FRONT LEFT HAND (BLACK)HOUSING, FRONT LEFT HAND (BLACK)
-
601550-0630A BOLTBOLT
-
709169-06073 WASHERWASHER
-
809169-06074 WASHERWASHER
-
909320-11021 CUSHIONCUSHION
-
1053282-31G01-291 COVER, RIGHT HAND (BLACK)COVER, RIGHT HAND (BLACK)
-
1153283-31G01-291 COVER, LEFT HAND (BLACK)COVER, LEFT HAND (BLACK)
-
1209139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1309320-10501 CUSHIONCUSHION
-
1403541-0516A SCREWSCREW
-
1509148-05038 NUTNUT
