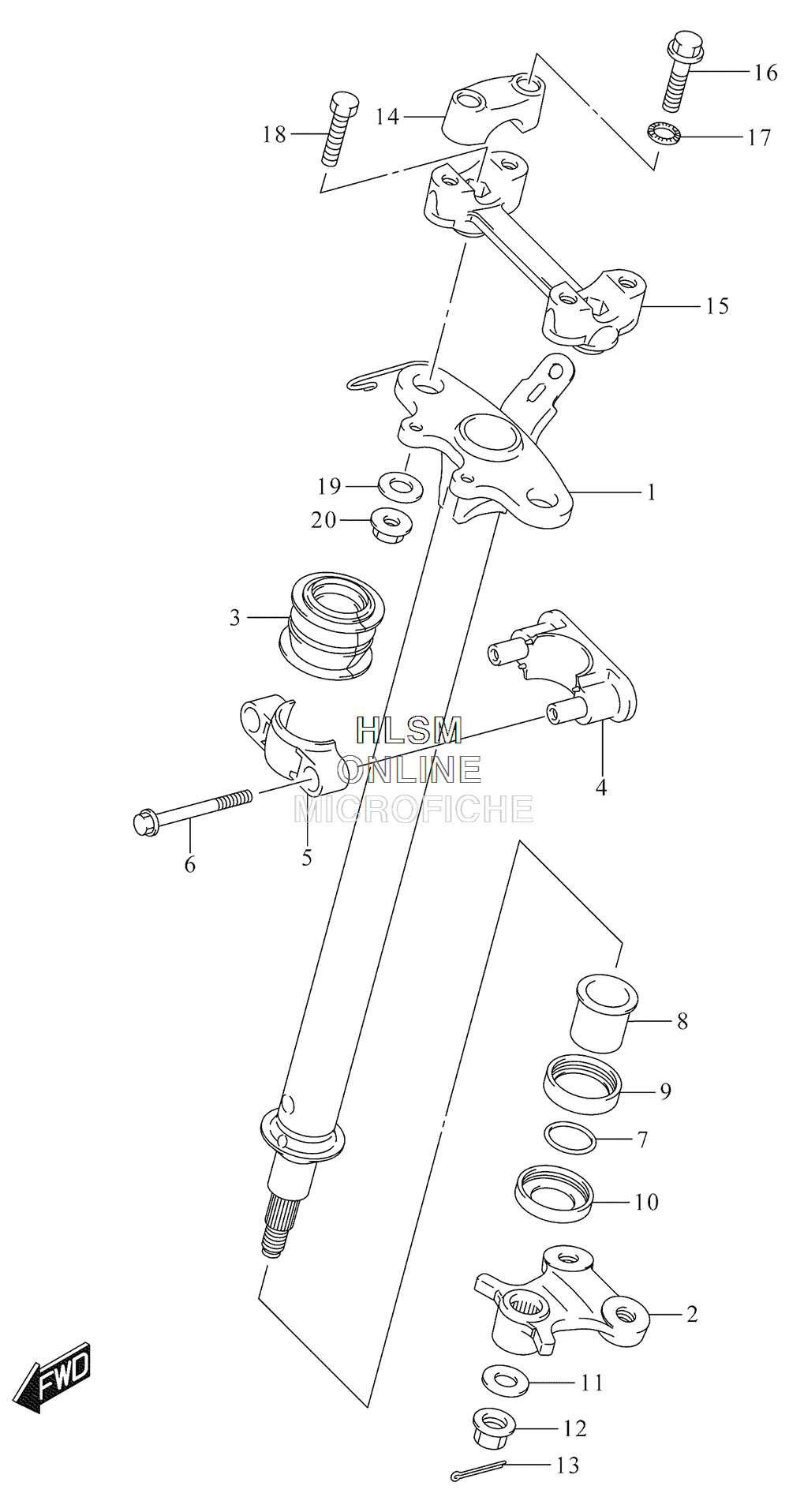

STEERING STEM для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
151650-31G20 SHAFT, STEERINGSHAFT, STEERING
-
251653-31G20 PLATE, STEERING ARMPLATE, STEERING ARM
-
351678-31G00 BUSH, STEERING SHAFT HOLDERBUSH, STEERING SHAFT HOLDER
-
451670-31G00 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
551673-31G00 HOLDER, STEERING SHAFT FRONTHOLDER, STEERING SHAFT FRONT
-
601550-0875A BOLTBOLT
-
709280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
851661-31G00 BUSH, STEERING SHAFT LOWERBUSH, STEERING SHAFT LOWER
-
951662-31G00 DUST SEAL, STEERING SHAFTDUST SEAL, STEERING SHAFT
-
1051663-31G10 DUST SEAL, STEERING LOWERDUST SEAL, STEERING LOWER
-
1109160-14062 WASHER (14.5X30X3.2)WASHER (14.5X30X3.2)
-
1209159-14027 NUTNUT
-
1304111-2020A PINPIN
-
1456211-09F00-291 CLAMP, HANDLEBAR UPPER (BLACK)CLAMP, HANDLEBAR UPPER (BLACK)
-
1556211-31G10 CLAMP, HANDLE HOLDERCLAMP, HANDLE HOLDER
-
1601550-0835A BOLTBOLT
-
1709164-08015 WASHERWASHER
-
1801500-1035A BOLTBOLT
-
1909160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
2009159-10115 NUTNUT
