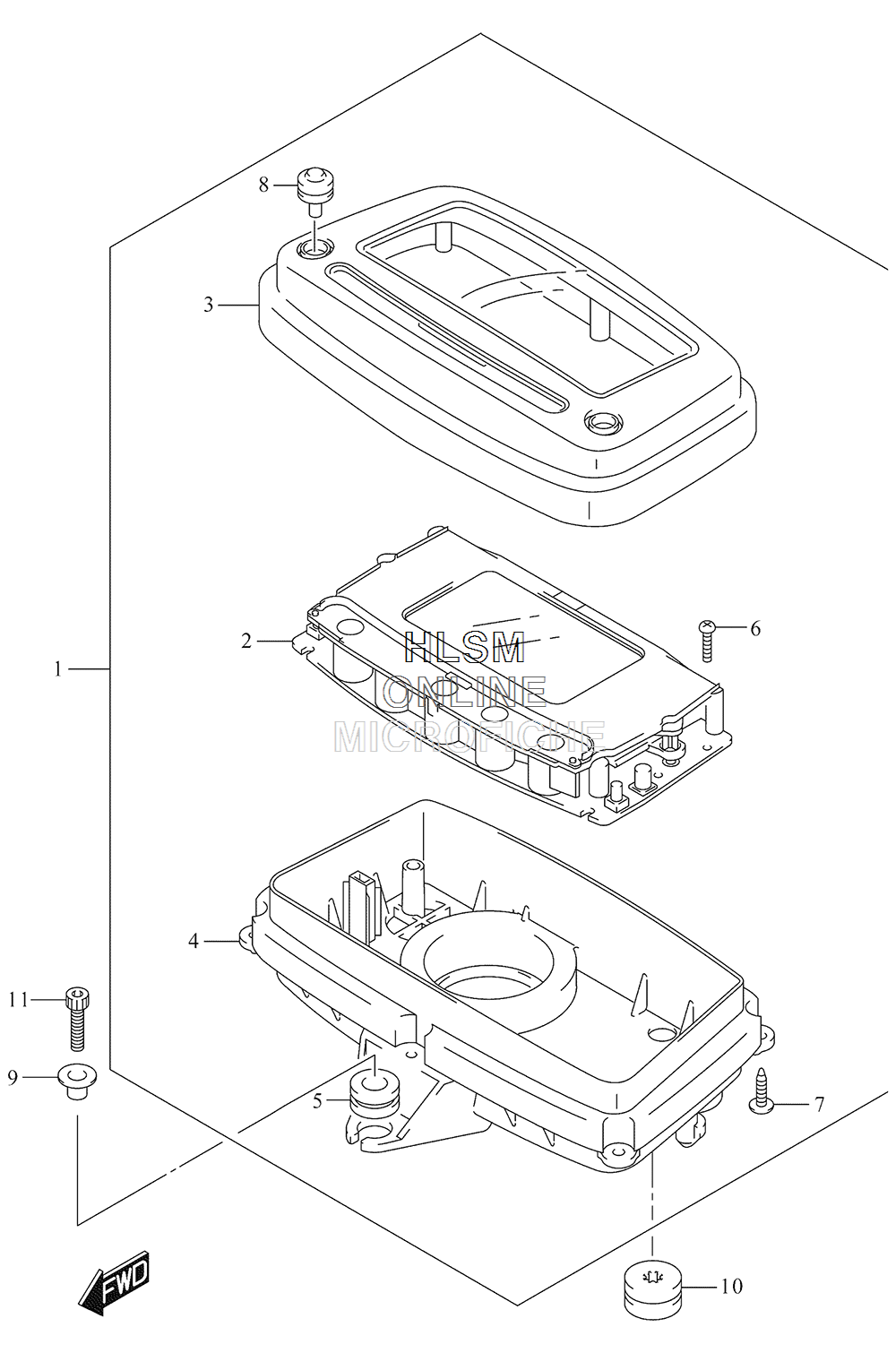

SPEEDOMETER (P33) для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
134100-11HH0 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
234120-11HG0 .SPEEDOMETER.SPEEDOMETER
-
334150-31G30 .CASE, UPPER.CASE, UPPER
-
434111-31G30 .CASE, LOWER.CASE, LOWER
-
534995-31G30 .CUSHION, RUBBER.CUSHION, RUBBER
-
634147-31G30 .SCREW (3X10).SCREW (3X10)
-
734149-31G30 .SCREW (3X12).SCREW (3X12)
-
834124-31G30 .SWITCH RUBBER.SWITCH RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
