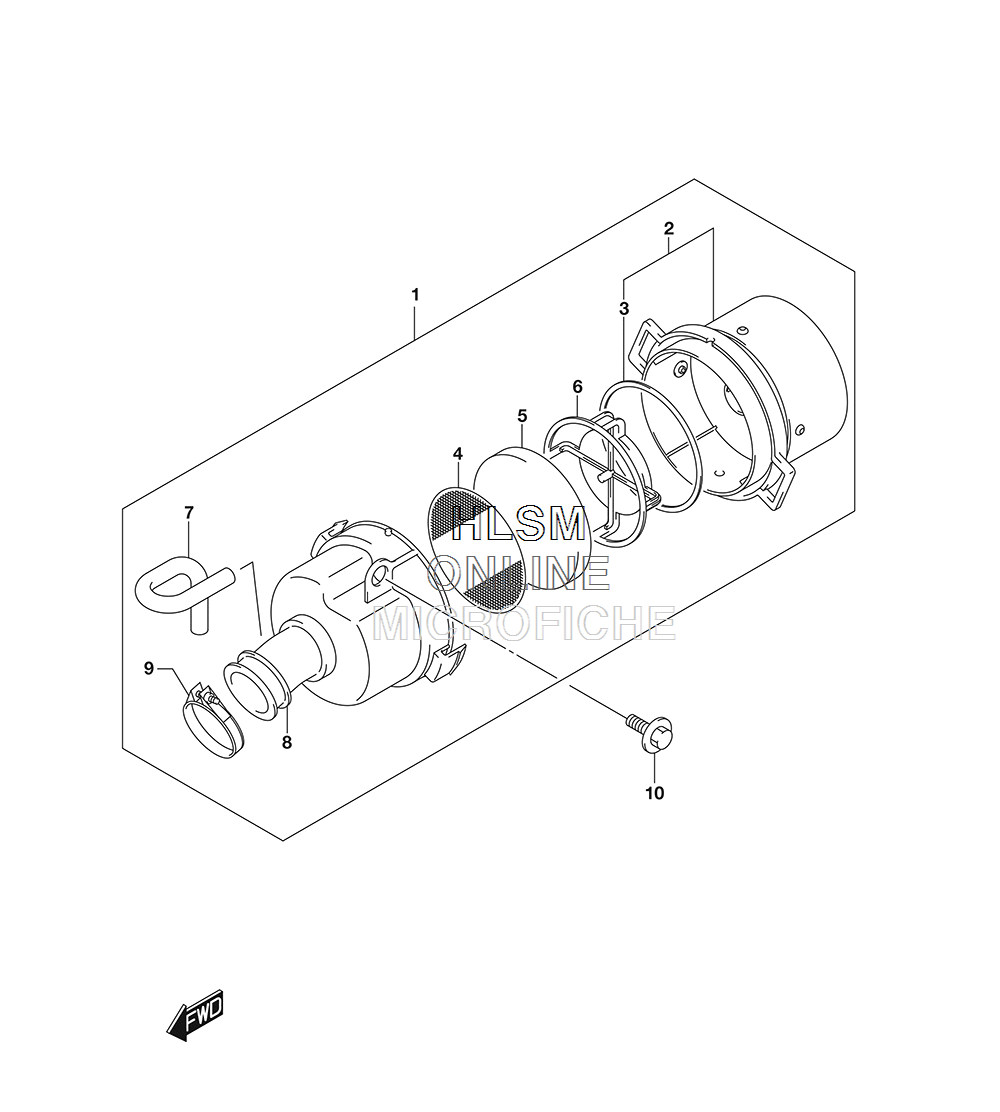

AIR CLEANER для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
113700-43G00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-43G00 ...CAP...CAP
-
313746-43G00 ......GASKET......GASKET
-
413811-43G00 ...TRAP, FLAME...TRAP, FLAME
-
513781-43G00 ...FILTER...FILTER
-
613743-43G00 ...MAD GUARD...MAD GUARD
-
713853-43G00 ...TUBE, BREATHER...TUBE, BREATHER
-
813881-43G00 ...TUBE, OUTLET...TUBE, OUTLET
-
909402-36208 ...CLAMP...CLAMP
