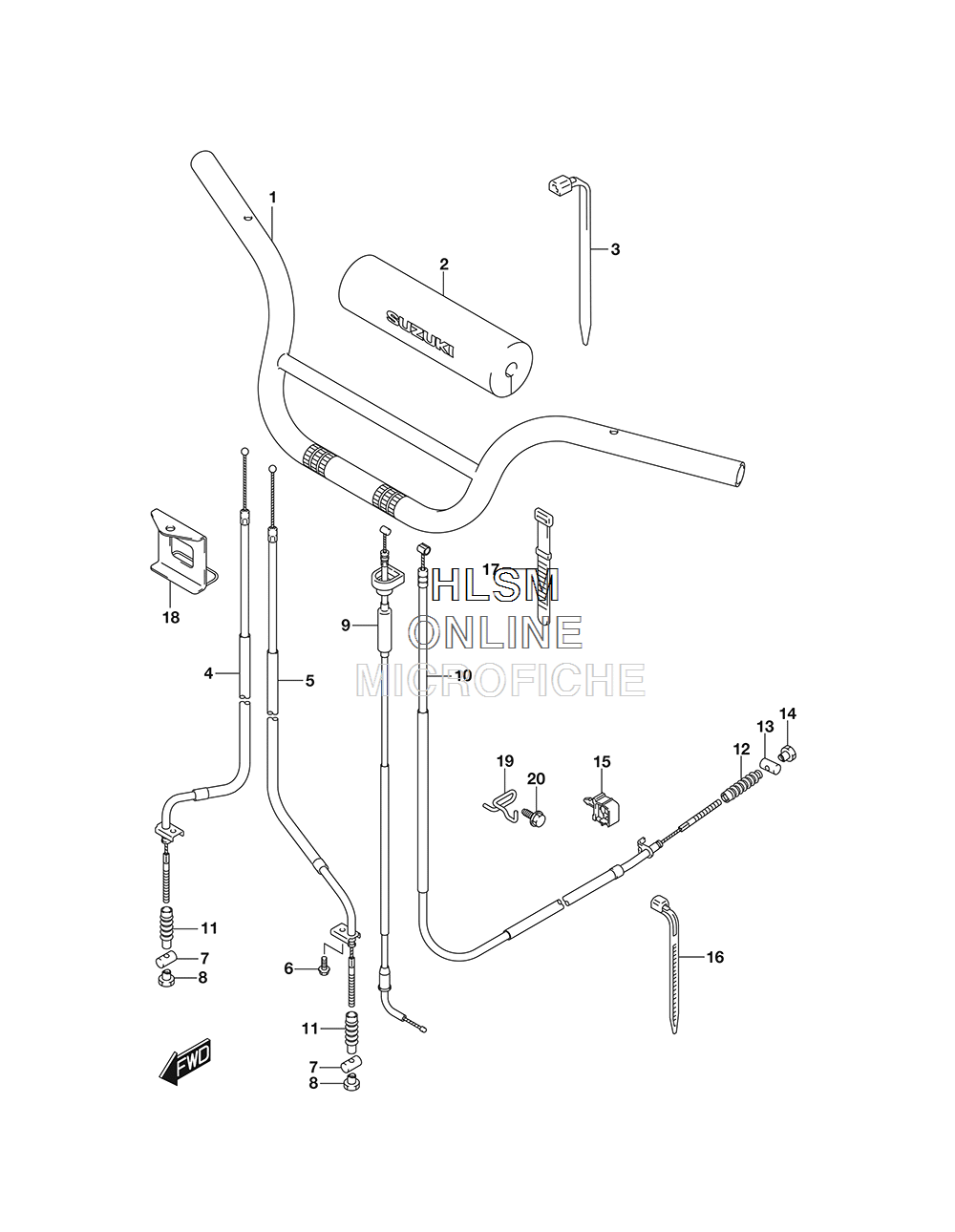

HANDLEBAR W/ CABLES для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
156110-43G00-13L HANDLEBAR (13L - SILVER)HANDLEBAR (13L - SILVER)
-
256172-04600 PAD, CROSSPAD, CROSS
-
309407-18401 CLAMPCLAMP
-
458110-43G00 CABLE ASSY, FRONT BRAKE (RH)CABLE ASSY, FRONT BRAKE (RH)
-
558120-43G00 CABLE ASSY, FRONT BRAKE (LH)CABLE ASSY, FRONT BRAKE (LH)
-
609106-06076 BOLTBOLT
-
709209-10001 PINPIN
-
809150-05101 NUTNUT
-
958300-43G00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1058510-43G00 CABLE ASSY, REAR BRAKECABLE ASSY, REAR BRAKE
-
1158553-43F00 BOOT, FRONT BRAKE CABLEBOOT, FRONT BRAKE CABLE
-
1258553-43F10 BOOT, REAR BRAKE CABLEBOOT, REAR BRAKE CABLE
-
1309209-10001 PINPIN
-
1409150-05101 NUTNUT
-
1509403-12412 CLAMP, REAR BRAKECLAMP, REAR BRAKE
-
1609407-14403 CLAMP (L:125)CLAMP (L:125)
-
1709407-12402 CLAMP (L:120)CLAMP (L:120)
-
1858620-43F00 GUIDE, FRONT BRAKE CABLEGUIDE, FRONT BRAKE CABLE
-
1958621-43G00 GUIDE, REAR BRAKE CABLEGUIDE, REAR BRAKE CABLE
