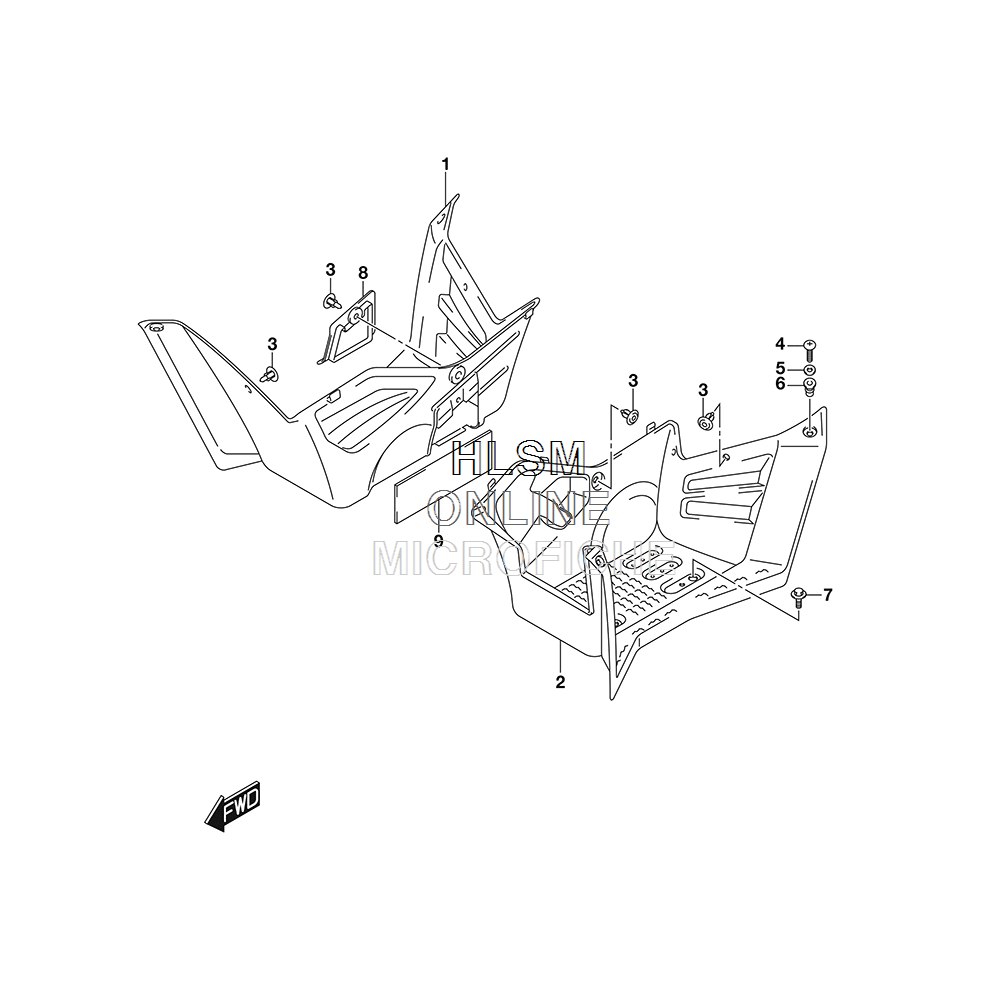

FENDER - FRONT/REAR для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
147111-43G00-291 COVER, FRAME (RH) (291 - BLACK)COVER, FRAME (RH) (291 - BLACK)
-
247211-43G00-291 COVER, FRAME (LH) (291 - BLACK)COVER, FRAME (LH) (291 - BLACK)
-
309409-07333 CLIPCLIP
-
402142-0520B SCREWSCREW
-
508322-0105B WASHERWASHER
-
609159-05019 NUTNUT
-
709111-06081 BOLTBOLT
-
847121-43G00 LID, (RH)LID, (RH)
