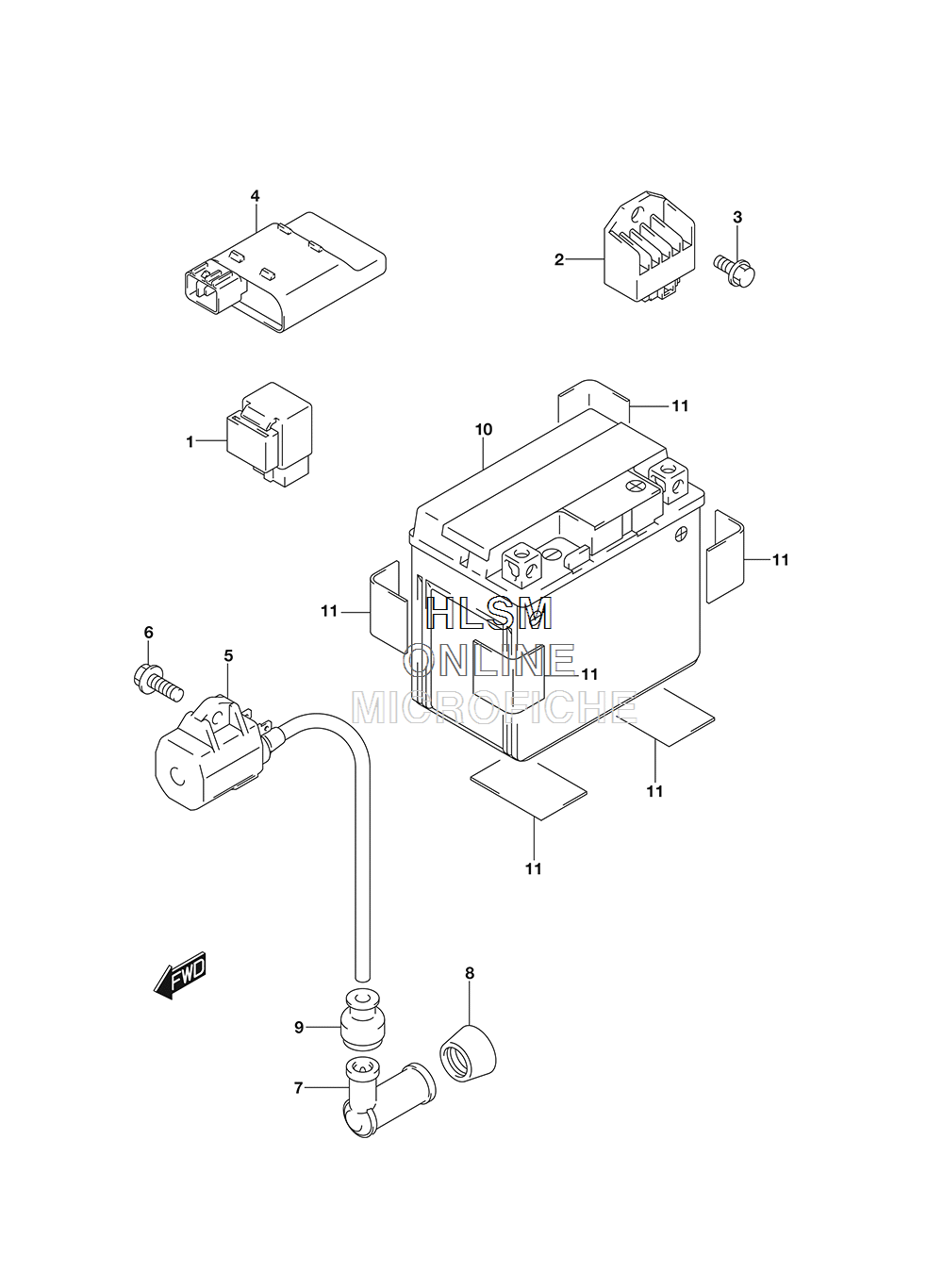

ELECTRICAL для Suzuki LT-Z50L8 QUADSPORT Z50 - 2018 года выпуска
-
№АртикулНазвание
-
131800-40B01 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
232800-41H00 RECTIFIER ASSYRECTIFIER ASSY
-
301550-0612B BOLT, RECTIFIERBOLT, RECTIFIER
-
432900-43G10 CDI UNITCDI UNIT
-
533410-36G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
602162-0620B SCREW, IGNITIOIN COILSCREW, IGNITIOIN COIL
-
733510-22010 CAP, SPARK PLUGCAP, SPARK PLUG
-
833541-38210 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
933542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1033610-40B20 BATTERY ASSY (YTX5L-BS,12V4AH)BATTERY ASSY (YTX5L-BS,12V4AH)
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CENTER FENDER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CVT CASE
- CYLINDER
- • ELECTRICAL
- FENDER - FRONT/REAR
- FOOTREST W/ BUMPER
- FRAME (CANADA)
- FRAME (EXCEPT CALIF.)
- FRAME CENTER COVER
- FUEL COCK
- FUEL TANK
- GASKET SET
- HANDLEBAR - LEVERS / SWITCHES (LEFT)
- HANDLEBAR - LEVERS / SWITCHES (RIGHT)
- HANDLEBAR W/ CABLES
- KNUCKLE W/ TIE RODS
- LABEL (EXCEPT CALIF.)
- LABELS (CANADA)
- MAGNETO
- MAGNETO COVER
- MUFFLER
- REFLECTOR (CANADA)
- SEAT (CANADA)
- SEAT (EXCEPT CALIF.)
- STARTER - RECOIL
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR
- WIRING HARNESS
